Production band saw HBE560A Performance

High performance when it matters!

The high-performance industrial saw HBE560A Performance is designed for demanding applications in steel trade, industry and metal production. Its heavy, robust design, use of the latest servo technology and its precise guide system provide the prerequisites for economical use of carbide and bi-metal saw blades. Especially when cutting tool steels, stainless steels or high-alloy materials, the production band saw HBE560A Performance shows its strengths.

  • Behringer production band saw HBE560A Performance

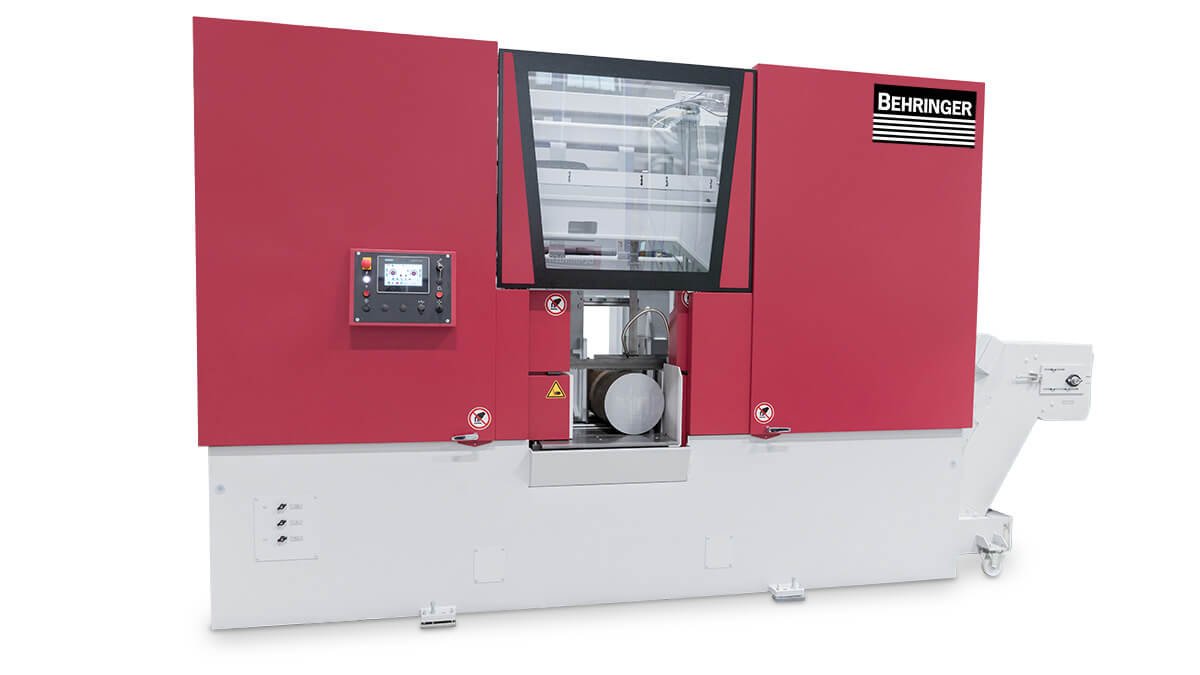

    Production band saw HBE560A Performance

  • Behringer machine control BehrCtrl10

    Intuitive BehrCtrl10 touch control

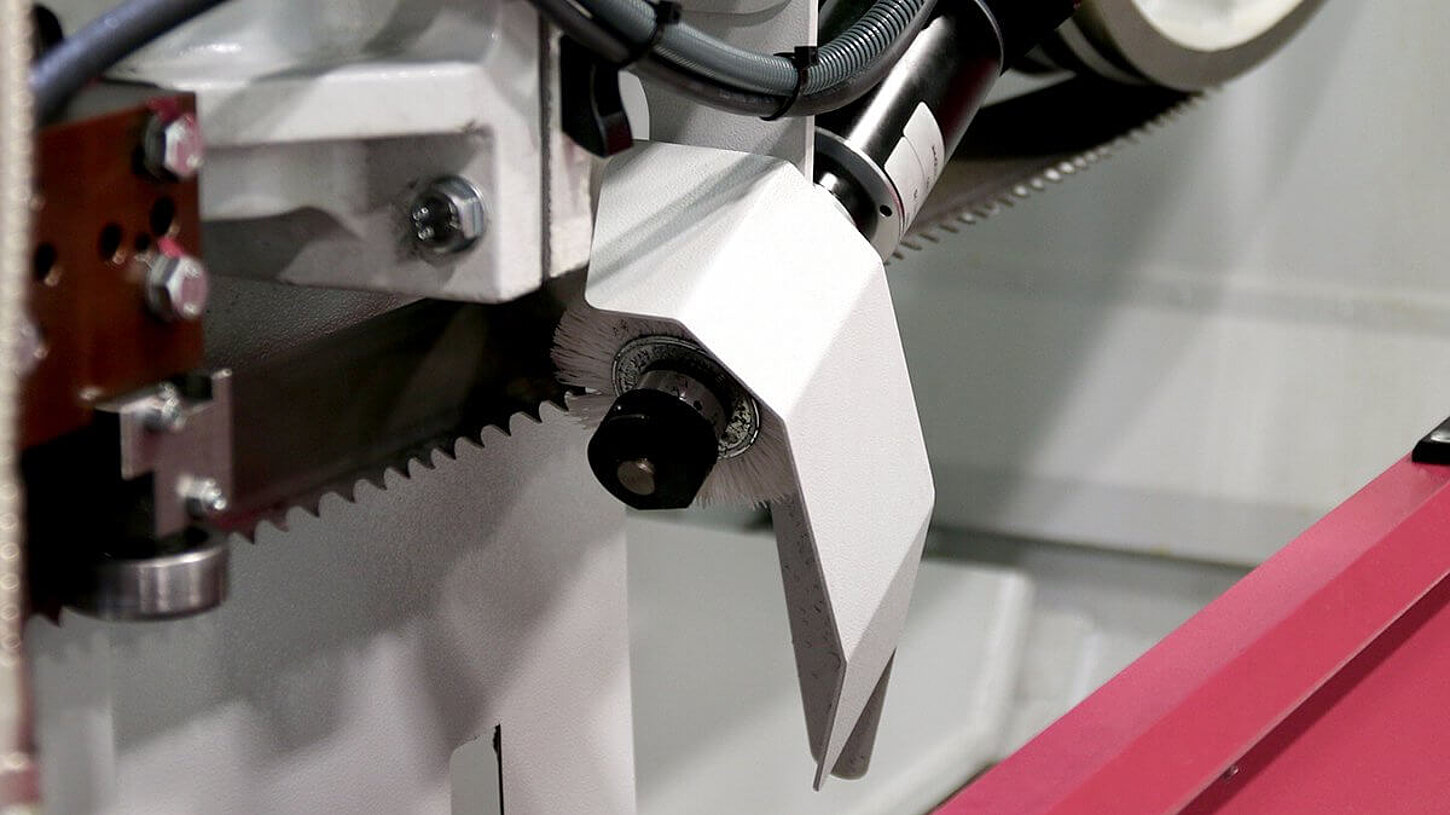

  • Behringer production band saw HBE560A Performance electrically driven chip brush

    Electrically driven chip brush

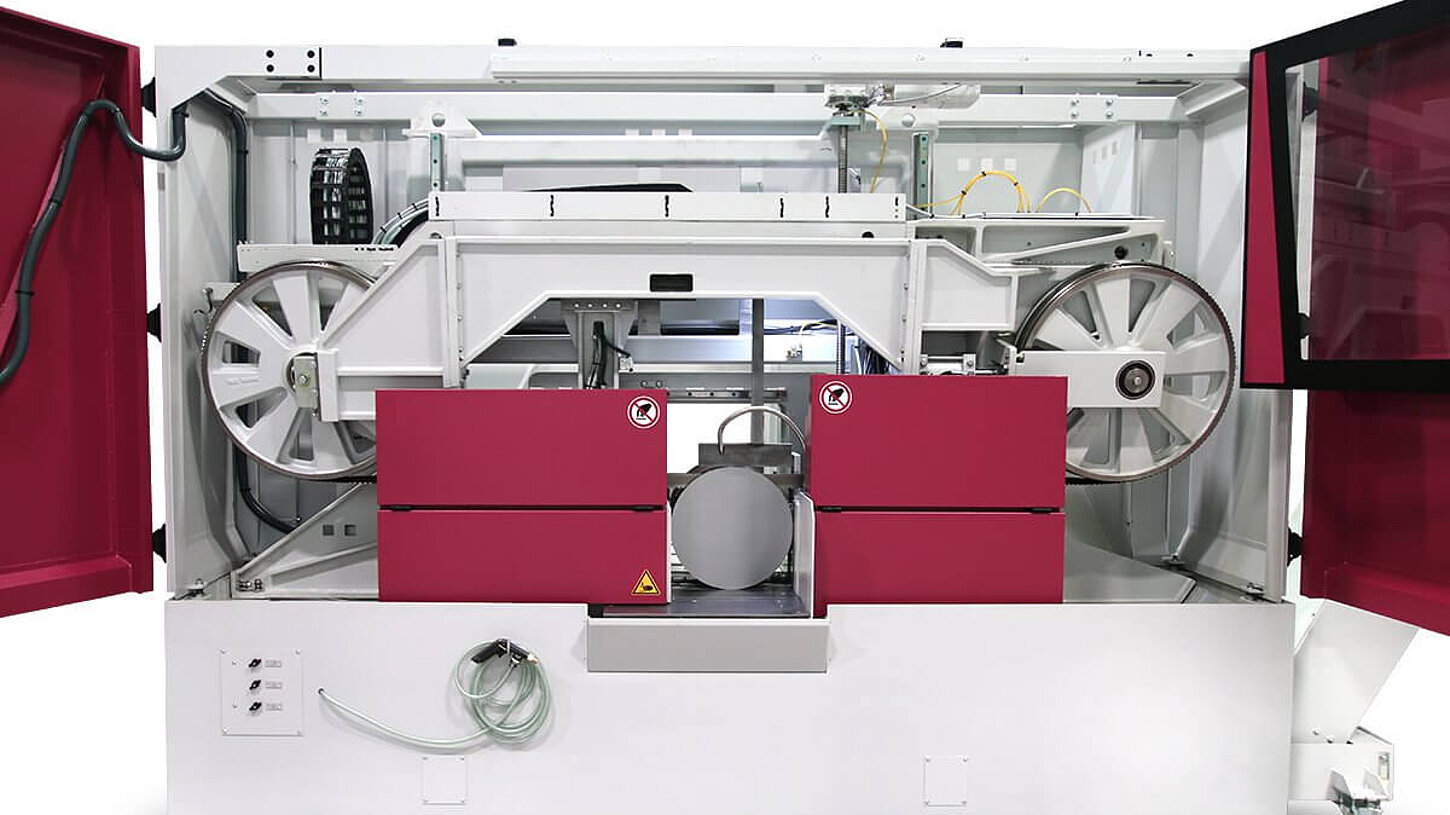

  • Behringer production band saw HBE560A Performance cast iron saw frame

    Cast iron band guiding parts

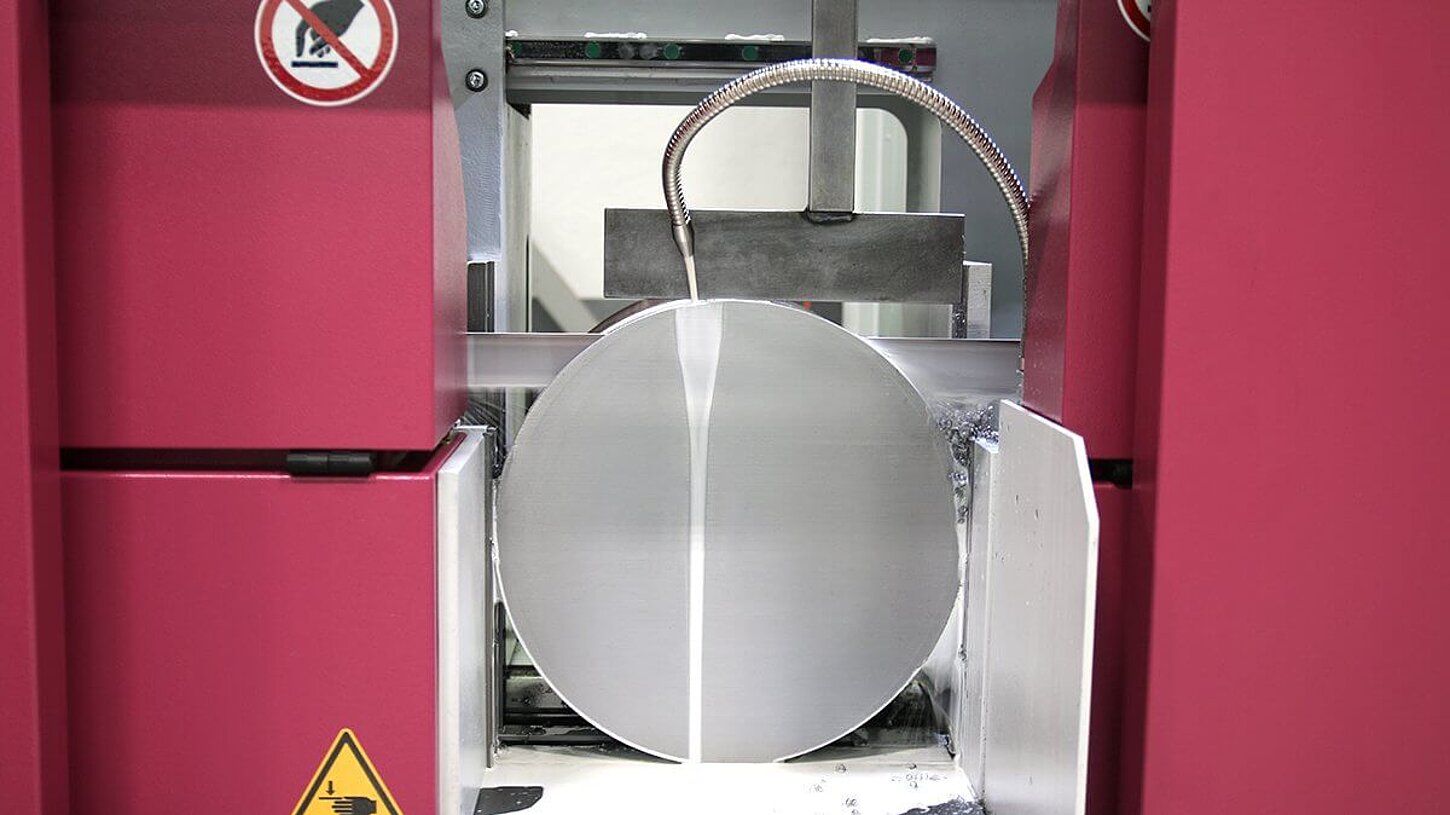

  • Behringer production band saw HBE560A Performance when sawing tool steel

    Highest cutting performance when sawing with bimetal and carbide saw blades

  • Behringer production band saw HBE560A Performance chip conveyor in material flow direction

    Chip disposal in material flow direction (option)

Features of the production band saw HBE560A Performance

  • Servo downfeed system
    The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds. Your advantage: higher cutting performance and longer band life!

  • Auto-Feed-Control
    Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.

  • Double clamping vice
    offers process reliability - especially when sawing bundles or making single cuts. The clamping jaws of the band saw are arranged on the infeed and outfeed side and clamp both the starting material and the finished cut.

  • Powerful chip conveyor
    Optimal chip disposal thanks to the funnel-shaped machine base and the paddle-style chip conveyor with an integrated coolant tank. The ejection height of 800 mm allows the use of large chip buckets.

  • Economical use of carbide saw blades
    due to robust design, use of latest servo technology and well dimensioned chip disposal.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

Individual Configuration

The production band saw HBE560A Performance can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.


Productivity boost for your production

Faster cuts with the new AFC Pro


  • Countering the shortage of skilled labour
    Optimum sawing results WITHOUT prior knowledge of the operator.

  • Increase your output
    Significantly increased cutting performance thanks to dynamic sawing process (up to 50% depending on material).

  • Wide range of materials - no problem
    The extensive material database even takes tempering or electro-slag remelting (ESR) into account.

  • Scalable production
    The sawing know-how is in the machine control system. This allows you to easily adapt your production to changing requirements.

We would be happy to show you how you can make your production even more efficient with our sawing solutions.

Get in touch with us!

Technical data production band saw HBE560A Performance

Cutting range 90° round 560 mm (option 610 mm)
Cutting range 90° flat 560 x 560 mm (option 610 x 610 mm)
Smallest dimension to be sawn round 20 mm
Smallest dimension to be sawn flat 20 x 20 mm
Feeding length single stroke 500 mm
Drive power 5.5 kW
Blade speed 10 - 110 m/min
Saw blade dimensions 7,800 x 54 x 1.6 mm
Rest piece length in automatic operation 55 mm
Total power 12 kW
Saw feed servo-feed via ball screw
Material feed ball screw
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 2,250 mm
Width 3,750 mm
Height 2,650 mm
Weight 5,100 kg
Material support height 800 mm
