High-Performance Automatic Circular Saw HCS 150 E

The all-rounder for steel trade and industry

The high-performance automatic circular saws of the HCS-E series are specialists for highest cutting performance and premium quality, which quickly pay for themselves in multi-shift operation. The basis of the extreme performance is the unique, extremely stable and solid construction with perfectly matched components and state-of-the-art drive technology.

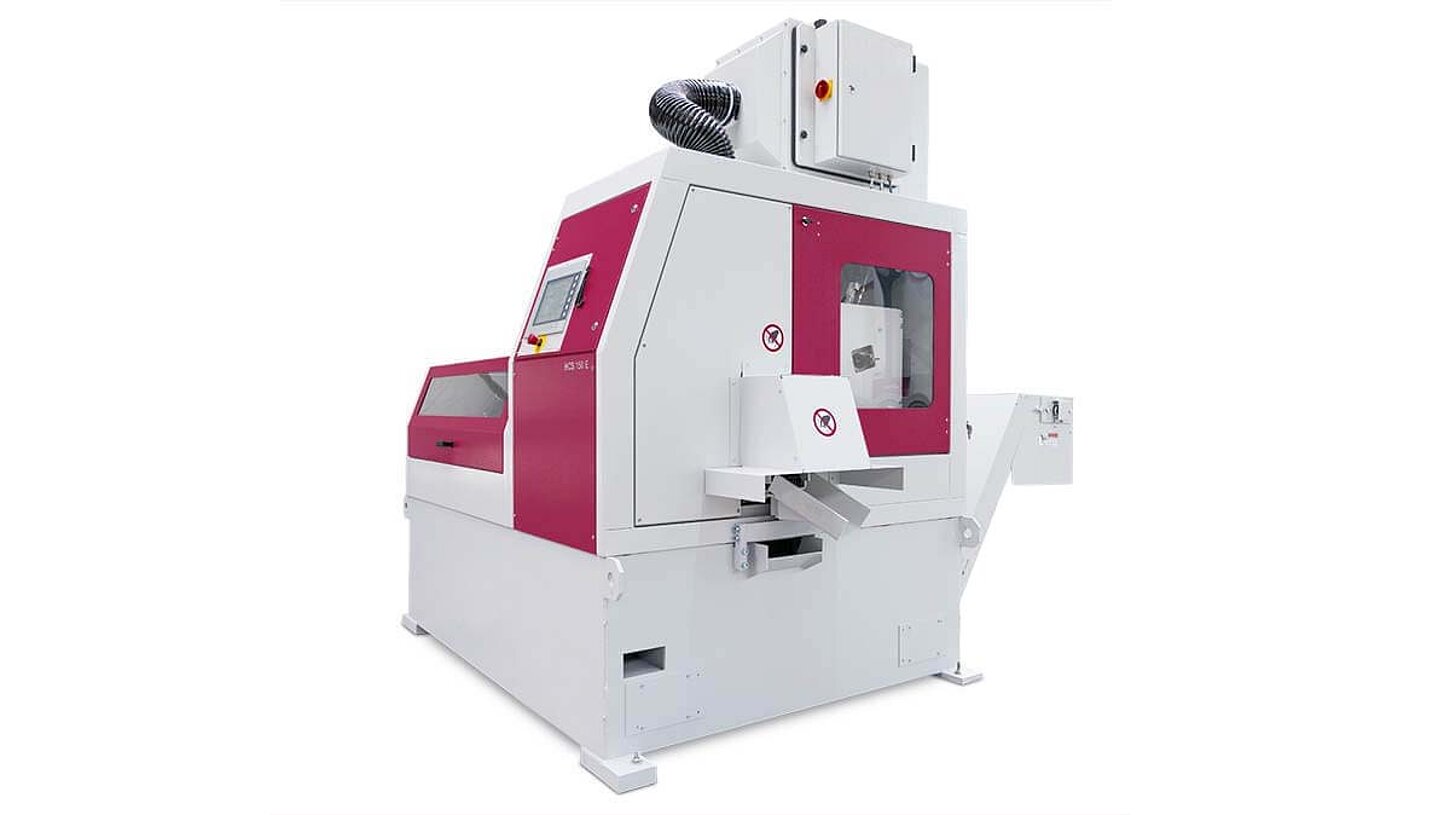

  • High Speed Circular Saw HCS 150 E

    High speed circular saw HCS 150 E

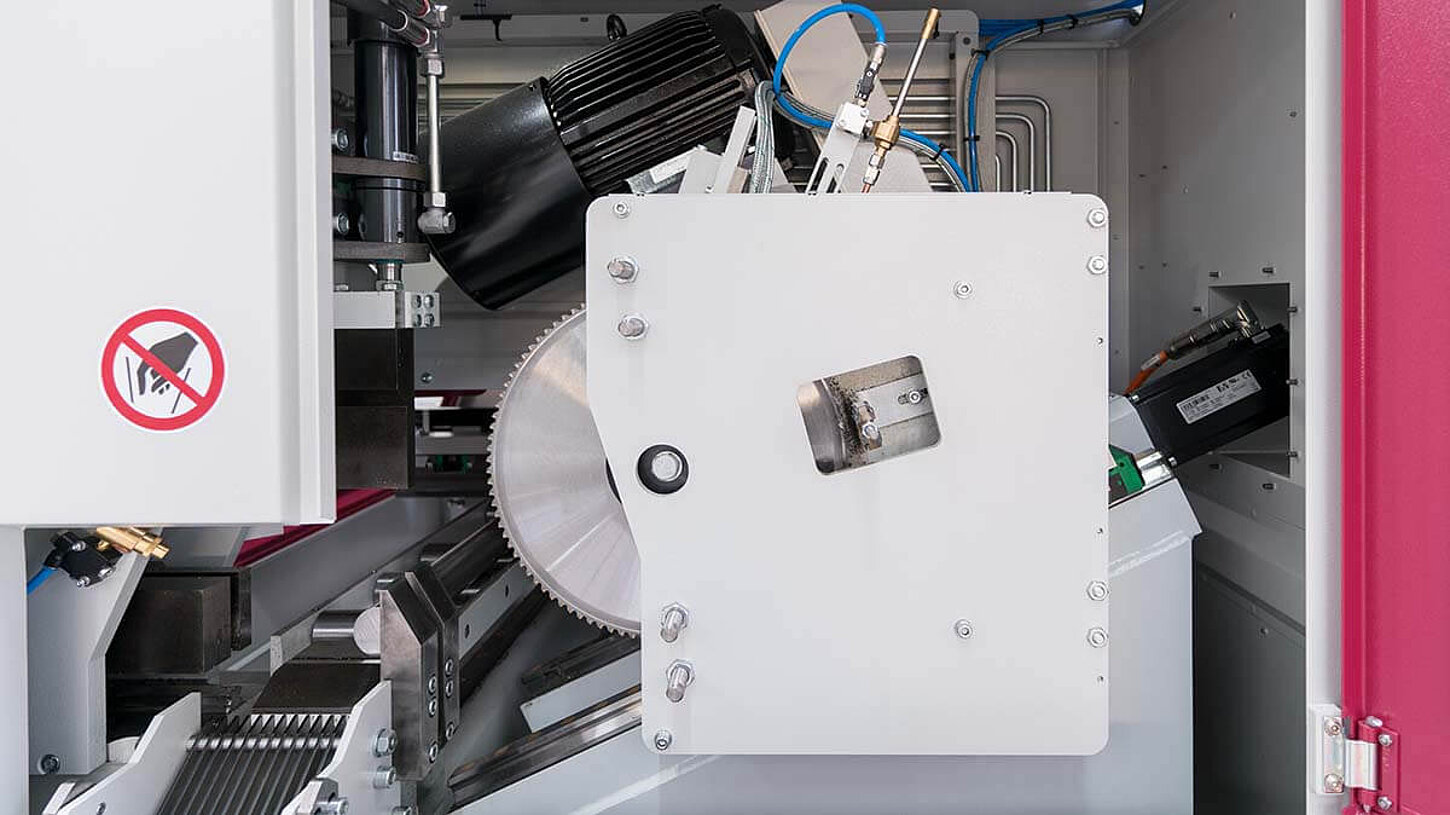

  • Flexible saw blade guide allows the use of different saw blade diameters

    HCS saw blade guide

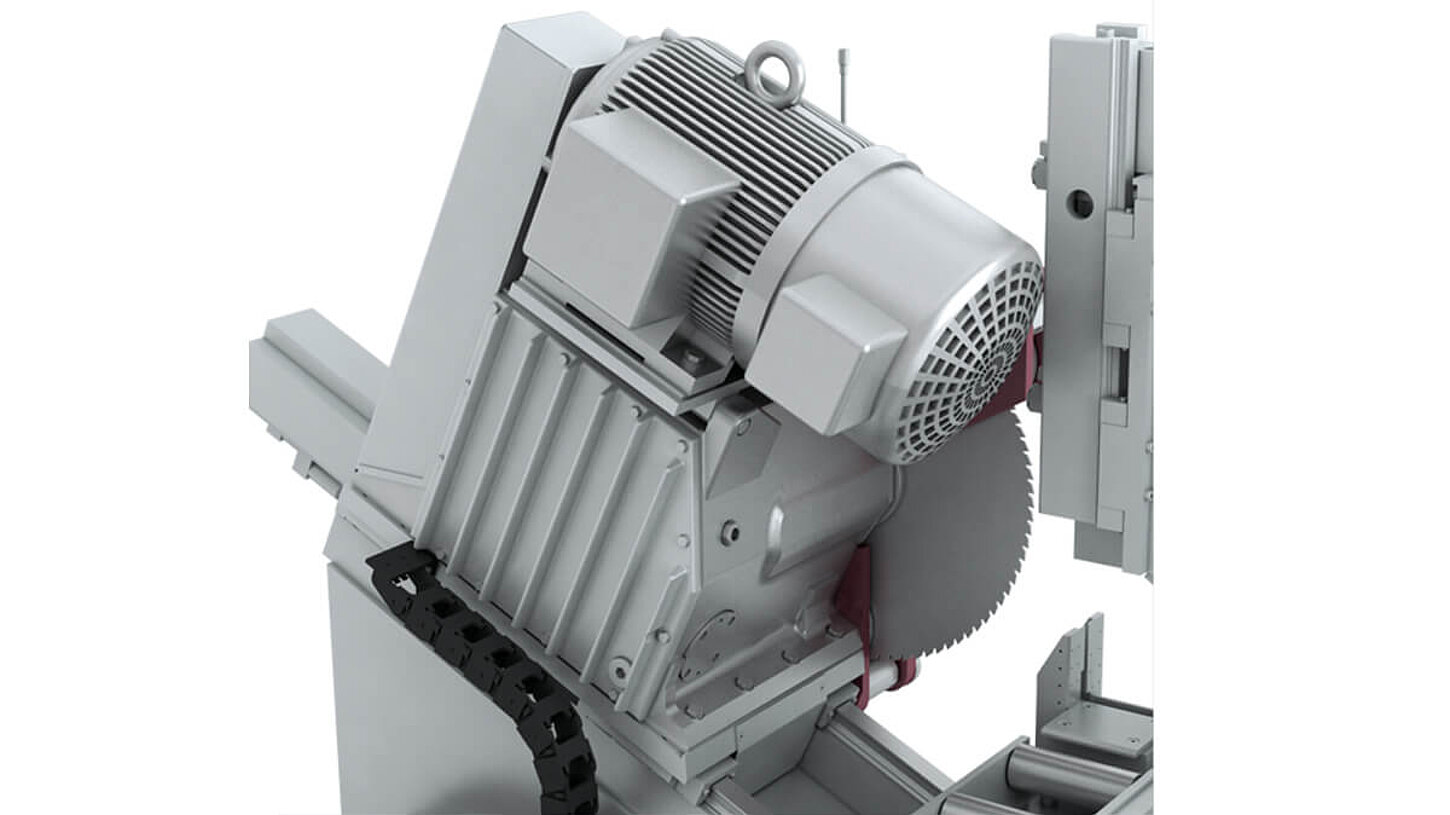

  • Strong gearbox from our own production

    Stable, low-vibration gearbox

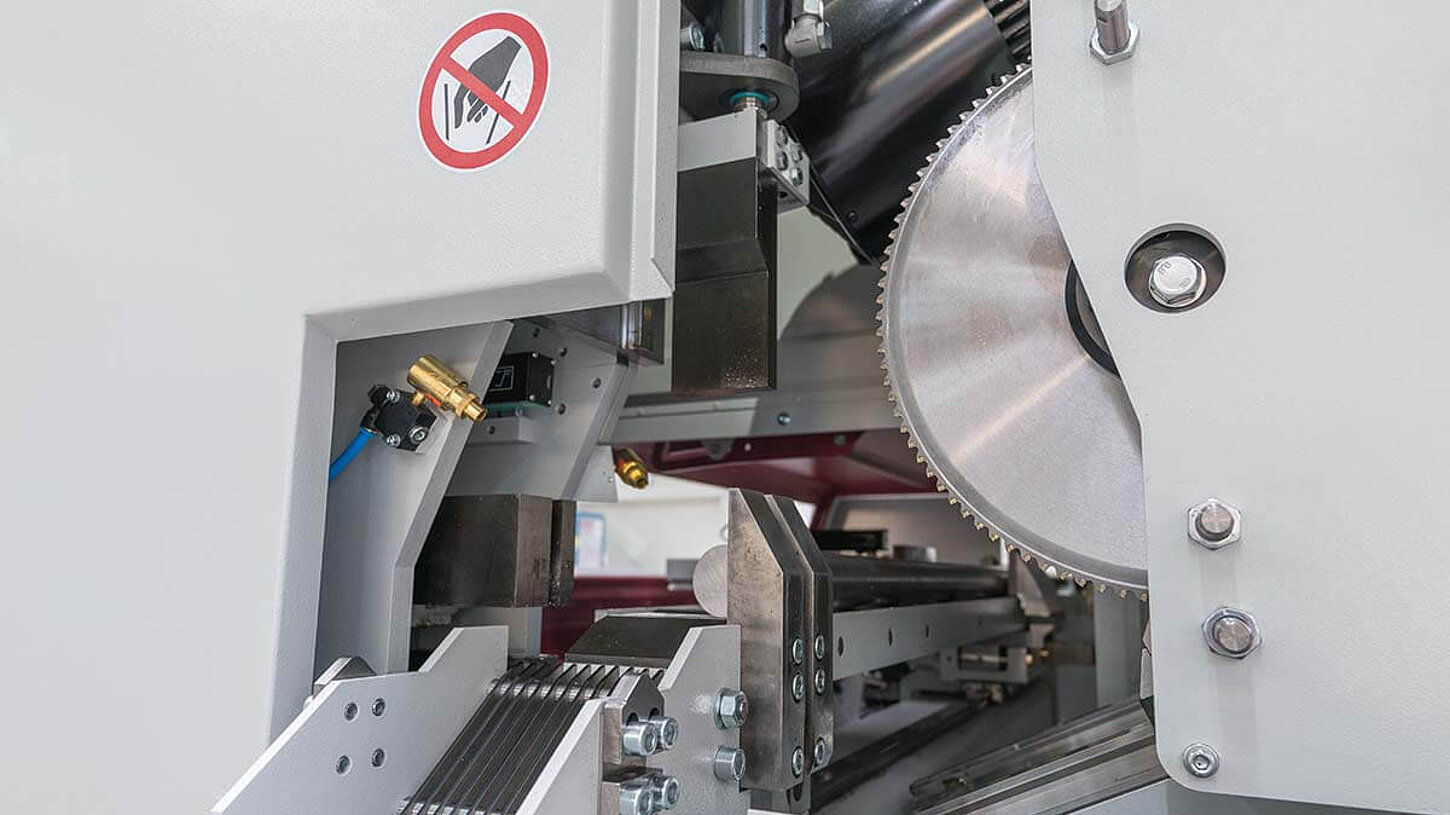

  • 3 point material clamping

    3-point material clamping

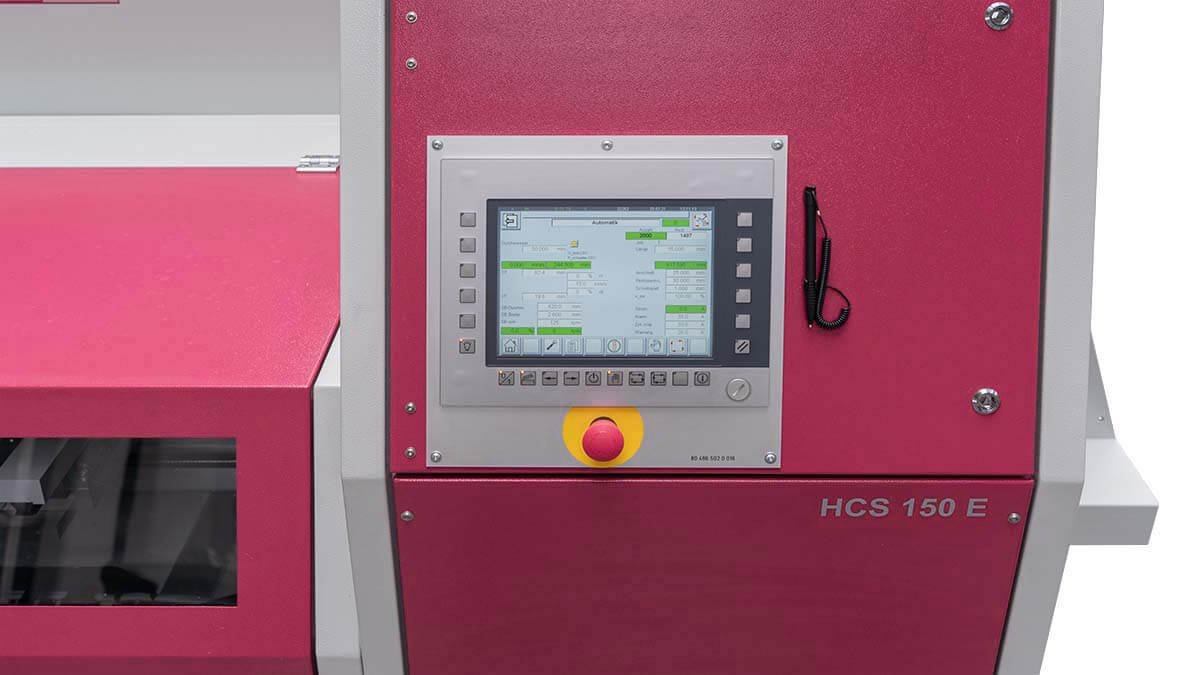

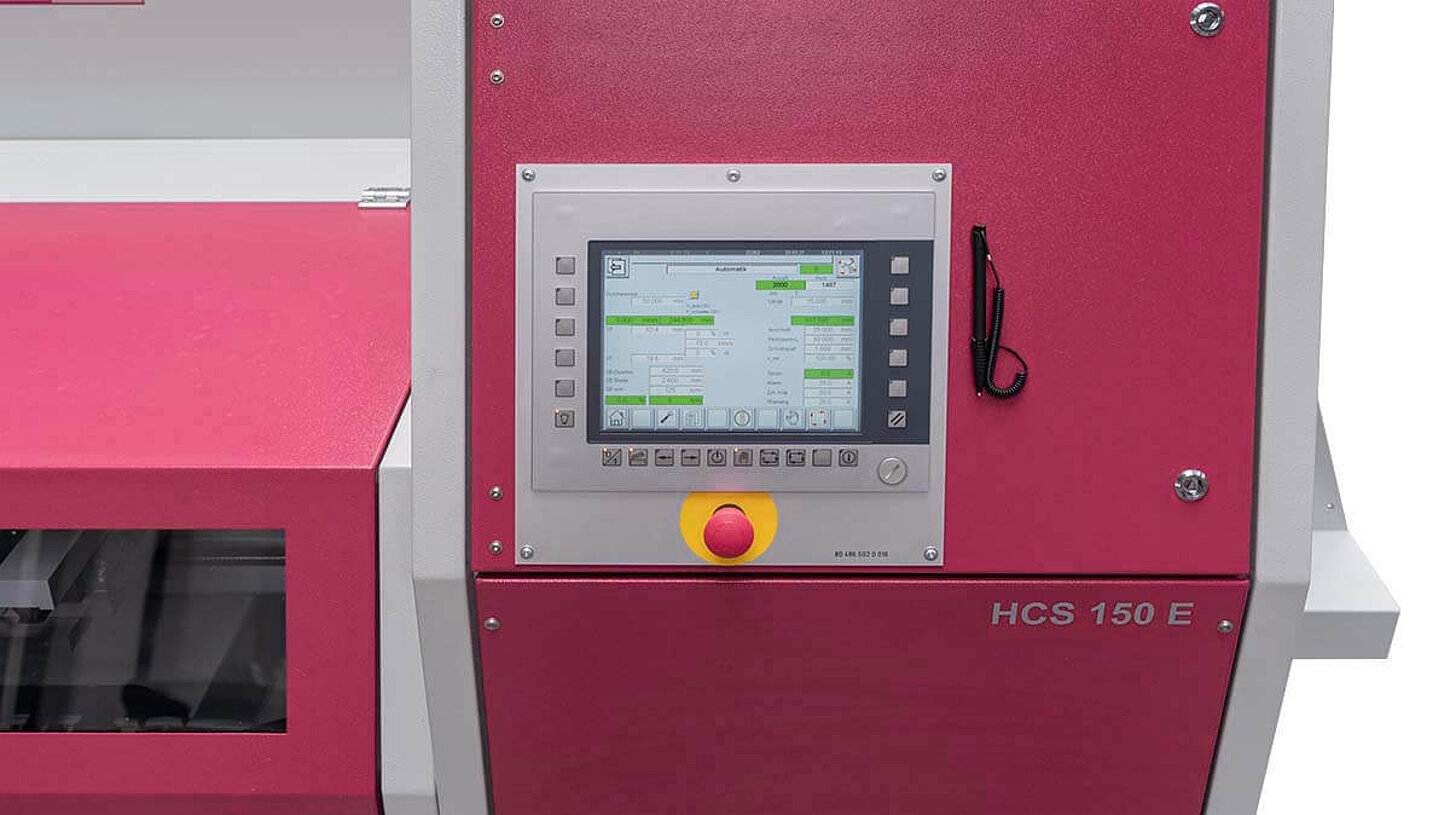

  • High Speed Circular Saw with intuitive PLC control with touch screen

    Powerful control of the industrial circular saw

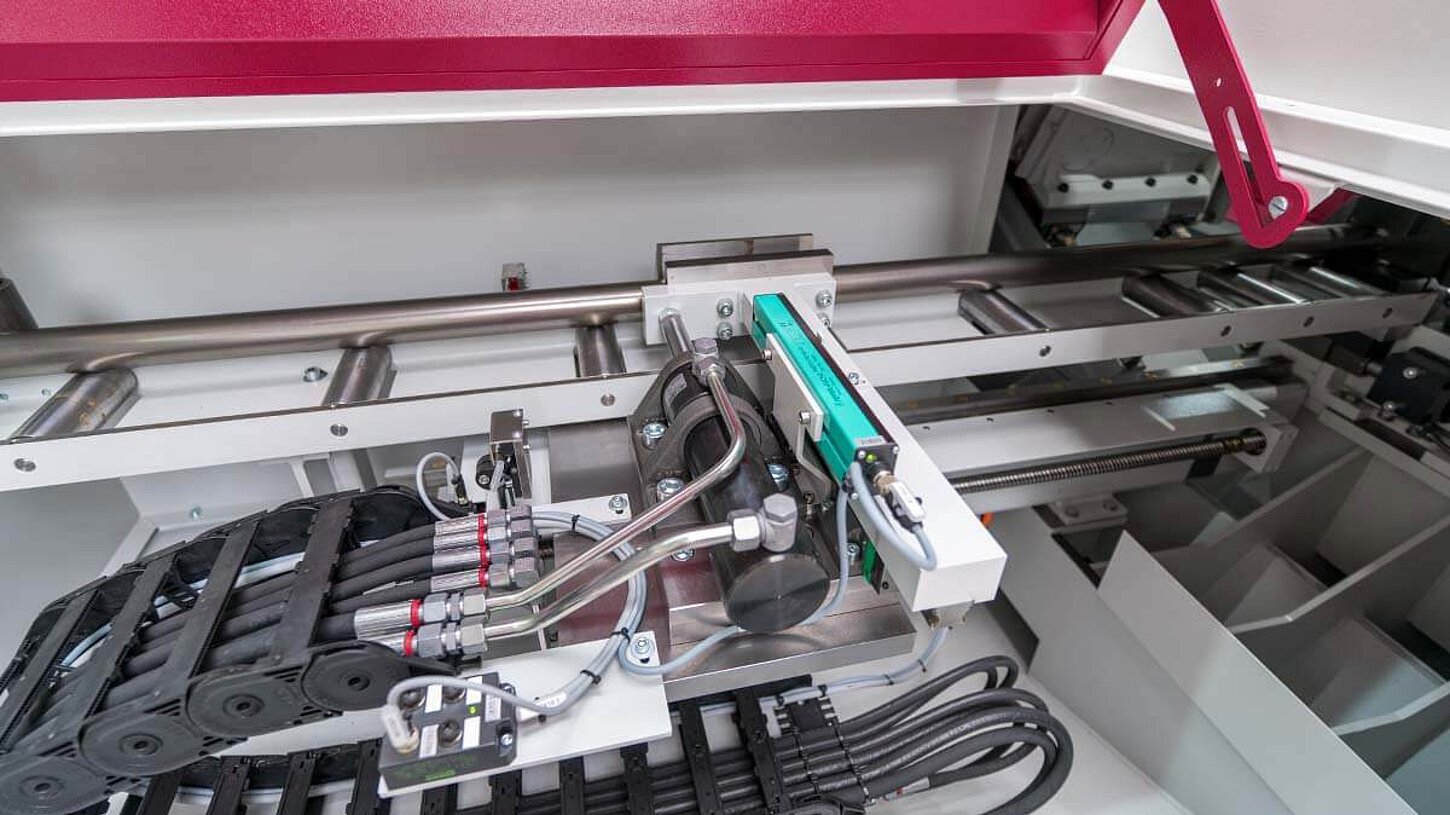

  • Feeding gripper with servo drive

    Servo-driven feeding gripper

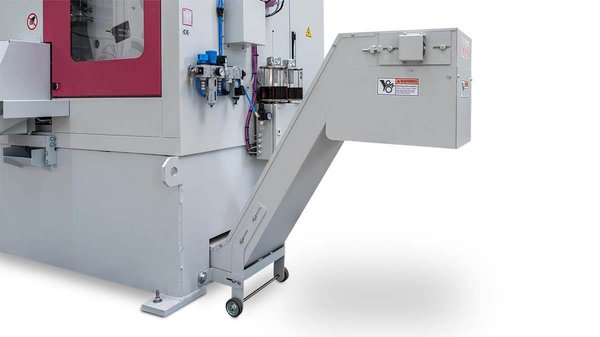

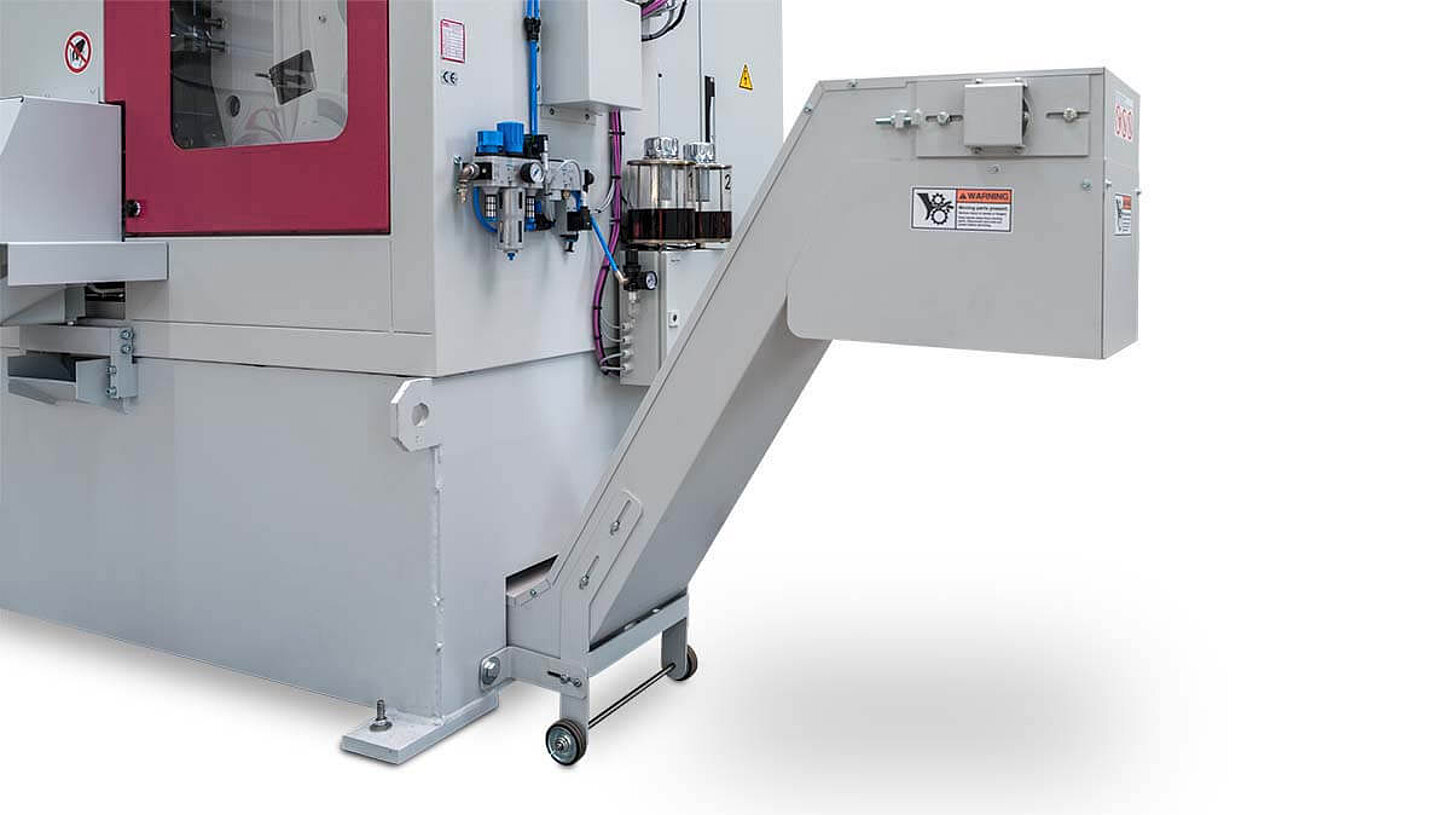

  • High Speed Circular Saw with powerful chip conveyor

    Chip conveyor

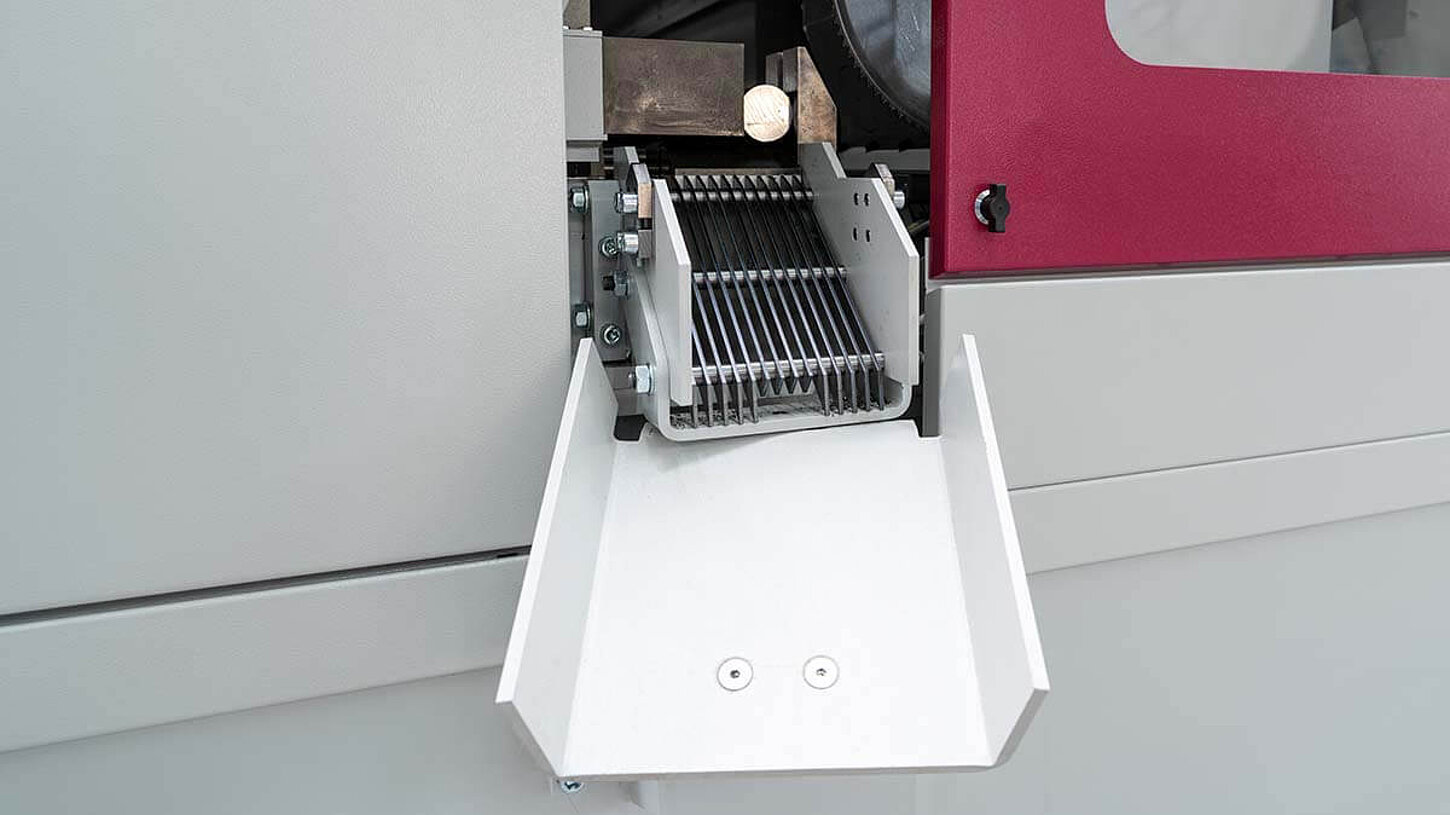

  • High Speed Circular Saw with sorting switch for separation of trim cuts and short cut-offs

    Sorting switch

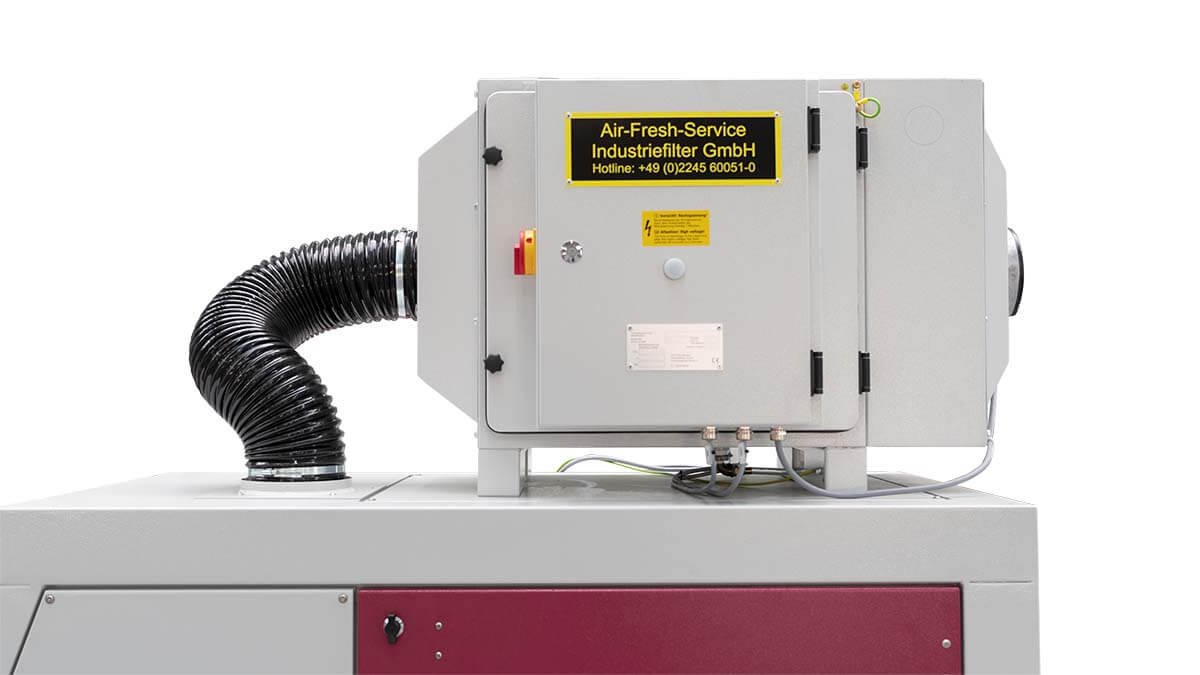

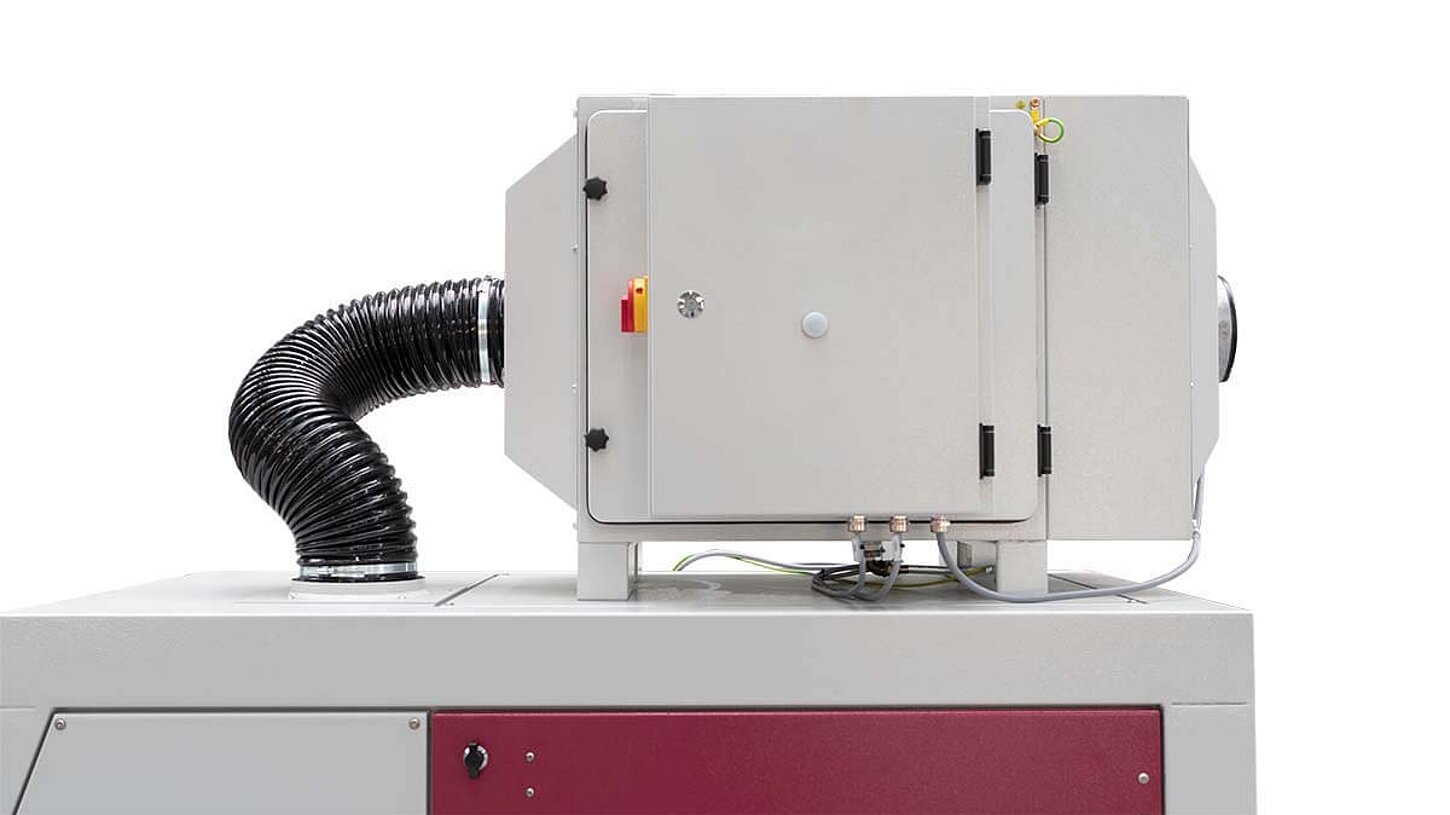

  • Emulsion mist separator removes vapors from the cutting oil

    Spray mist extraction

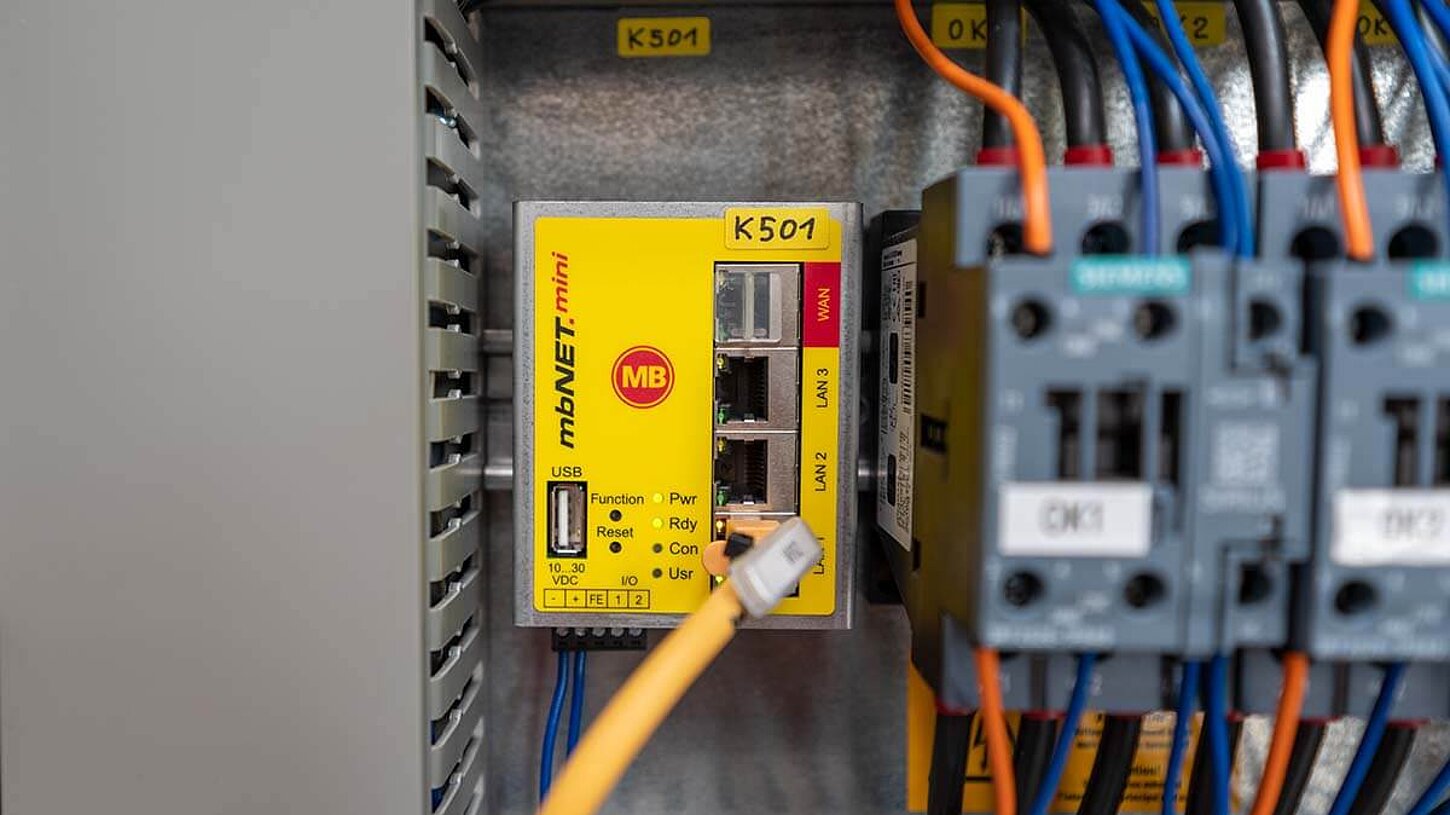

  • Behringer VPN remote maintenance

    Remote maintenance as standard

  • Youtube Logo

    Example of robot connection (deburring, marking, palletising)

Features of the high speed circular saw HCS 150 E

  • Robust, low-vibration gear unit
    The heart of the saw unit is the worm gear unit, made by Behringer Eisele. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface and the blade life.

  • Cooling systems
    The industrial circular saws of the HCS-E series are equipped with a micro-spray unit as standard. This ensures precise cooling and minimal lubrication of the tool. In addition, a cold air nozzle can further reduce the temperature of the tool when sawing difficult-to-cut materials.

  • Extremely solid construction
    The extremely stable and solid machine bed is the basis of every HCS high speed circular saw. It ensures excellent vibration damping and ideal power flow. The cast iron parts made by Behringer have an additional positive effect.

  • Funnel-shaped machine base
    provides a perfect chip flow into the chip conveyor as well as the speedy disposal of chips. Cleaning is extremely easy.

  • Linear guided saw feed
    The saw unit is moved dynamically through the entire cutting area via two linear guides in conjunction with a ball screw and a servo motor. This ensures a long service life, excellent saw cuts and low burr formation.

  • Servo-driven feeding gripper
    swiftly positions the material precisely and in a matter of seconds. Its advantages are: accurate cutting length and short cycle times with tight tolerances.

  • Simple and intuitive operation of the control unit
    Everything under control! The control unit is self explanatory and easy to operate; operating mistakes are avoided and it allows for quick navigation within the program menu. Other systems can also be easily connected, both on the software and hardware side.

  • Chip conveyor (option)
    The chip conveyor can be installed flexibly. It ensures the quick disposal of chips, is easy to maintain and quick to clean. Optionally, the chip conveyor can also be mounted with ejection to the front.

Customer-specific sawing systems

Individual Configuration

The industrial circular saw HCS 150 E can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data high speed circular saw HCS 150 E

Cutting range 90° round 152,4 mm
Cutting range 90° square 130 x 130 mm
Smallest dimension to be sawn round 10 mm
Smallest dimension to be sawn square 10 x 10 mm
Drive power 15 kW
RPM 20 - 250 min-1
Saw blade diameter 360 / 420 / 460 mm
Feeding length single stroke 1.000 mm
Feed rate 1.250 mm/s
Saw feed servo-driven
Material clamping hydraulic
Saw drive frequency-controlled
Length 2,550 mm
Width 1,900 mm
Height 2,000 mm
Weight 3,200 kg
Material support height 1,170 mm
