Mitre Bandsaw HBE520-926G

For steel construction and sectional steel trade

The high-performance horizontal mitre bandsaw HBE520-926G is designed for automatic sawing of structural steel, profiles and pipes. Features such as electronic mitre angle adjustment, saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment and a robust double clamping vice are provided as standard. Its stable saw frame, inclined band wheels and the use of vibration-damping cast components extend the service life of the saw bands tremendously.

When processing large profiles, however, material handling is in addition to the cutting performance also a key factor in determining the system throughput. The HBE520-926G mitre saw is therefore consequently designed for low-operator use in automated sawing lines. Automatic material loading and discharge systems, pre- and post-buffer lines and an intelligent control system with nesting functionality cover all requirements.

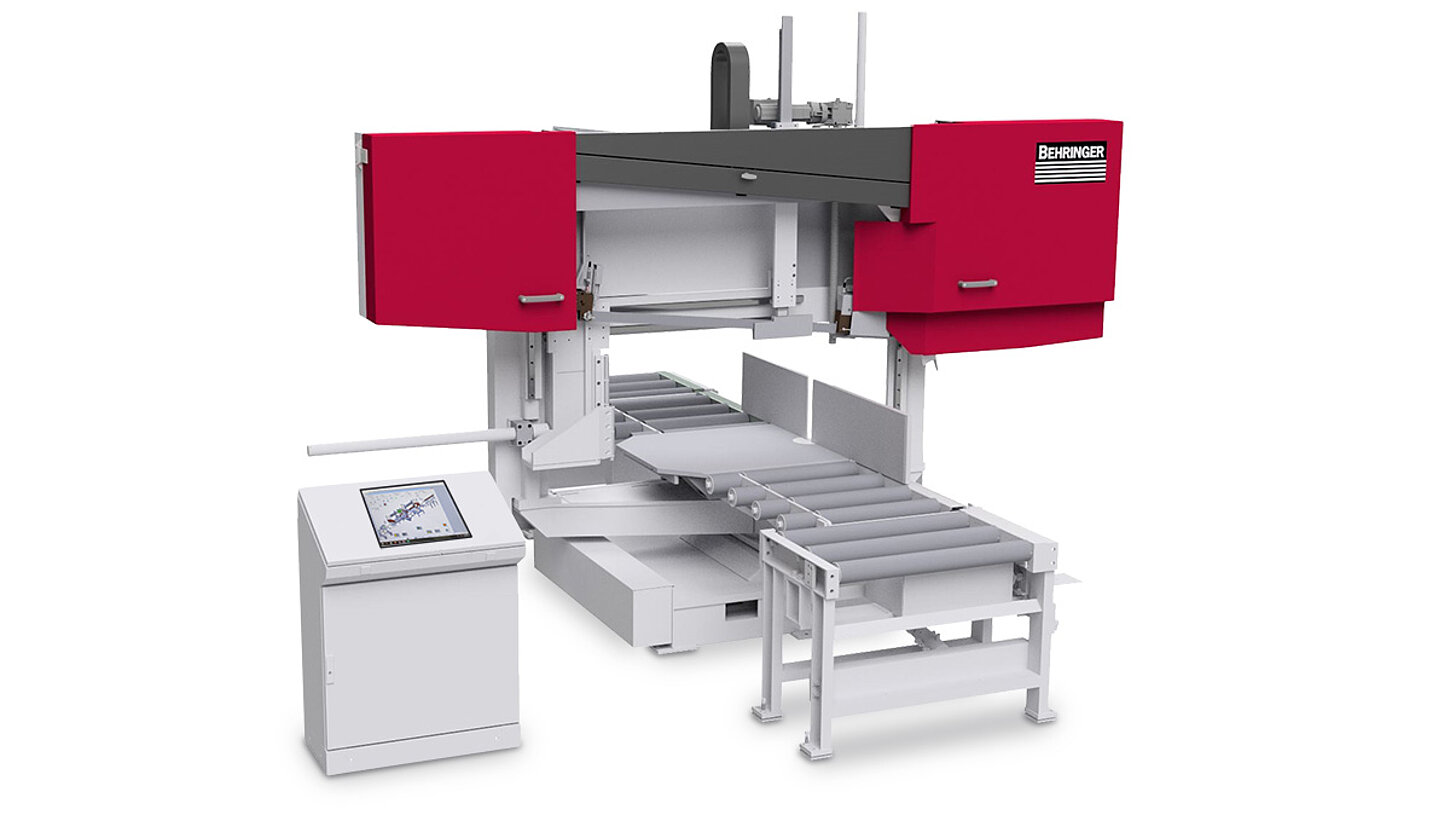

  • Mitre bandsaw Behringer HBE520-926G for sawing steel construction profiles

    Mitre bandsaw HBE520-926G

  • Mitre bandsaw Behringer HBE520-926G enclosed material table

    Enclosed material table

  • Mitre bandsaw Behringer HBE520-926G saw feed with servo motor

    Servo feed system with BEHRINGER cutting pressure control

  • Behringer PC Control

    Powerful PC control

  • Mitre bandsaw Behringer HBE520-926G band guiding parts made from vibration damping grey cast iron

    Cast iron band guiding parts

  • Mitre bandsaw Behringer HBE520-926G automatic mitre angle adjustment

    Fast NC mitre angle adjustment

  • Mitre bandsaw Behringer HBE520-926G electrically driven chip brush

    Electrically driven chip brush

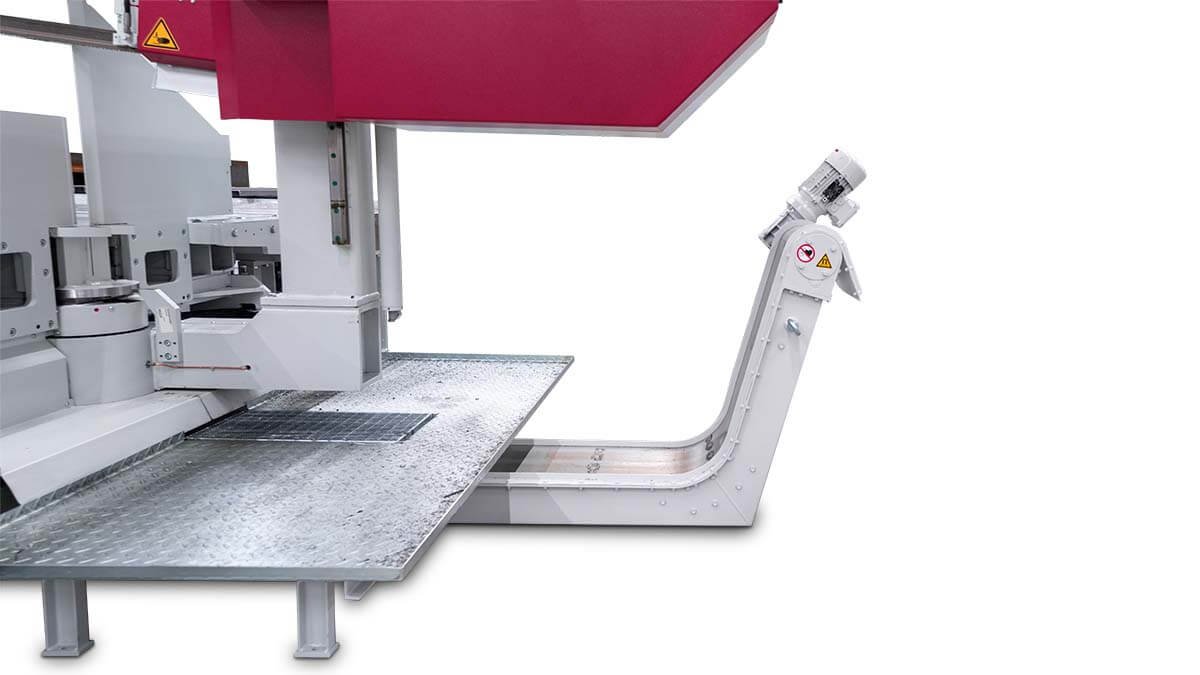

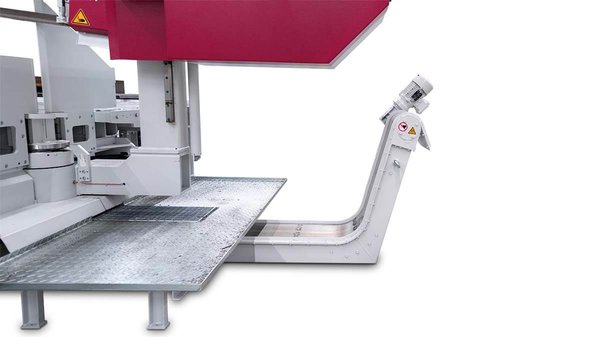

  • Mitre bandsaw Behringer HBE520-926G magnetic chip conveyor

    Magnetic chip conveyor (option)

Features of the mitre bandsaw HBE520-926G

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best cutting results and maximum service life of the mitre saw.

  • 6° inclination of the saw band
    provides significantly higher cutting performance when sawing large beams and hollow profiles and reduces burr formation.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Customer-oriented sawing concepts
    Behringer offers complete system solutions with individual material handling where everything fits together perfectly. We are a competent partner and provide comprehensive advice.

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Closed material table
    The closed table support makes working with the mitre bandsaw easier. Even short sections can be transported in and out of the machine without any problems.

  • Downfeed control with servo drive
    The saw feed is carried out by means of a ball screw and servo motor. This results in considerably shorter non-productive times and more precise saw feeds.

  • Double clamping vice
    offers process reliability - especially when sawing bundles or making single cuts. The clamping jaws are arranged on the infeed and outfeed side and clamp both the starting material and the finished cut.

  • Micro Spray System
    When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles. This guarantees a long service life of the saw blade and a clean working environment.

  • Electrically driven chip brush
    with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Individual Configuration

The mitre bandsaw HBE520-926G can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data mitre bandsaw HBE520-926G

Cutting range 90° round 520 mm
Cutting range 90° flat 920 x 520 mm

75° Mitre left round / flat 520 mm / 920 x 520 mm
60° Mitre left round / flat 520 mm / 810 x 520 mm
45° Mitre left round / flat 520 mm / 640 x 520 mm
30° Mitre left round / flat 430 mm / 430 x 520 mm

75° Mitre right round / flat 520 mm / 920 x 520 mm
60° Mitre right round / flat 520 mm / 810x 520 mm
45° Mitre right round / flat 520 mm / 640 x 520 mm

Smallest dimension to be sawn round 30 mm
Smallest dimension to be sawn flat 30 x 30 mm
Drive power 5,5 kW
Blade speed 17 - 120 m/min
Saw blade dimensions 8.500 x 54 x 1,6 mm
Rest piece length 45 mm
Total power 11 kW
Saw feed Servo feed via ball screw
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 1,900  mm (3,950 mm at mitre angle 30°)
Width 4,150mm
Height 2,960 mm
Weight 4,100 kg
Material support height 800 mm
