HBM500SC - The benchmark among high-performance band saws
Maximum speed, maximum precision, uncompromising efficiency.
The HBM500SC is the fastest band saw on the market—developed for maximum productivity and precision. With innovative drive technology, SpeedCutting technology, and intelligent control, it combines the speed of a circular saw with the flexibility of a band saw. For those who refuse to compromise when it comes to steel processing.
-

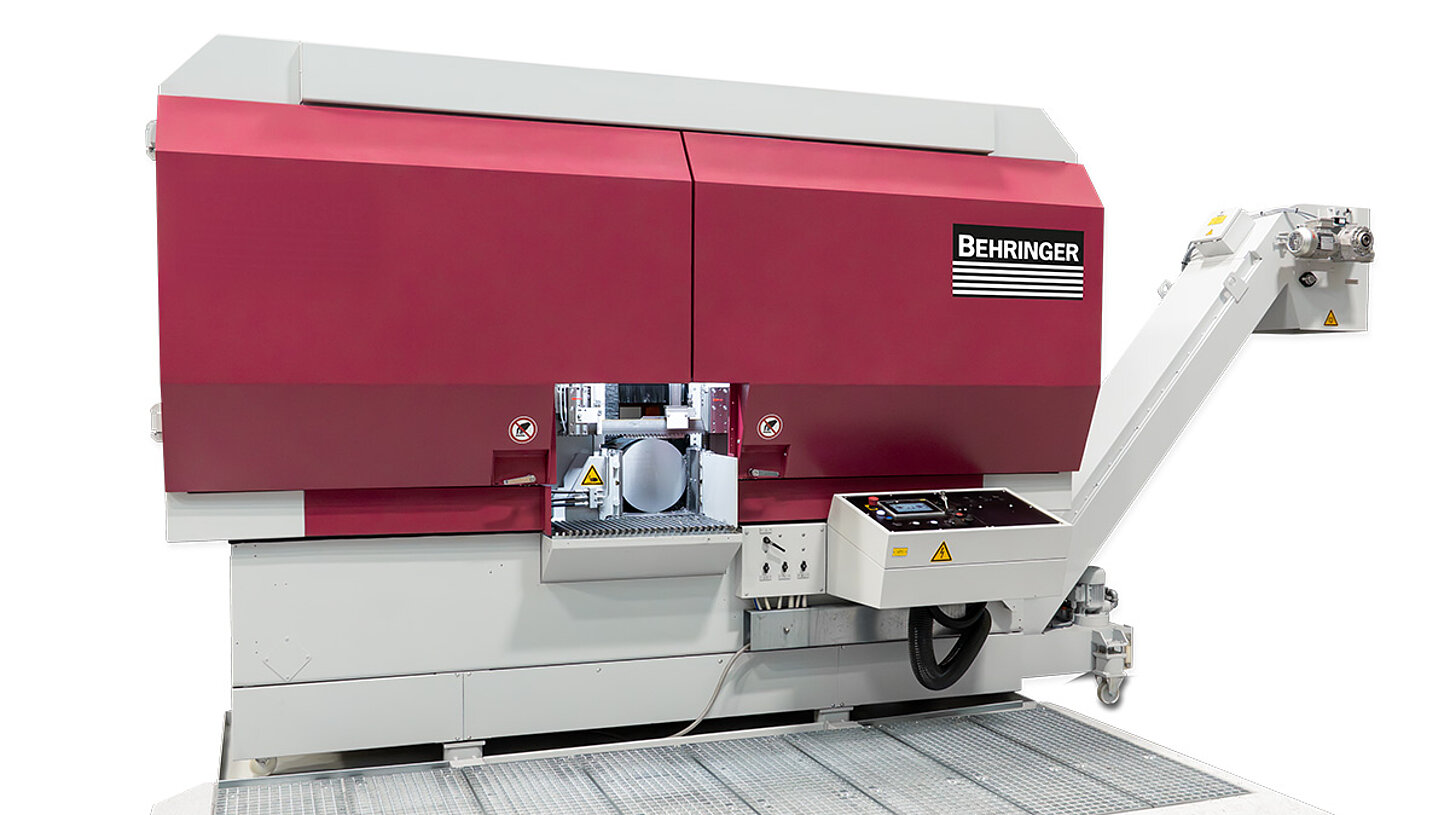

High-performance band saw HBM500SC
-

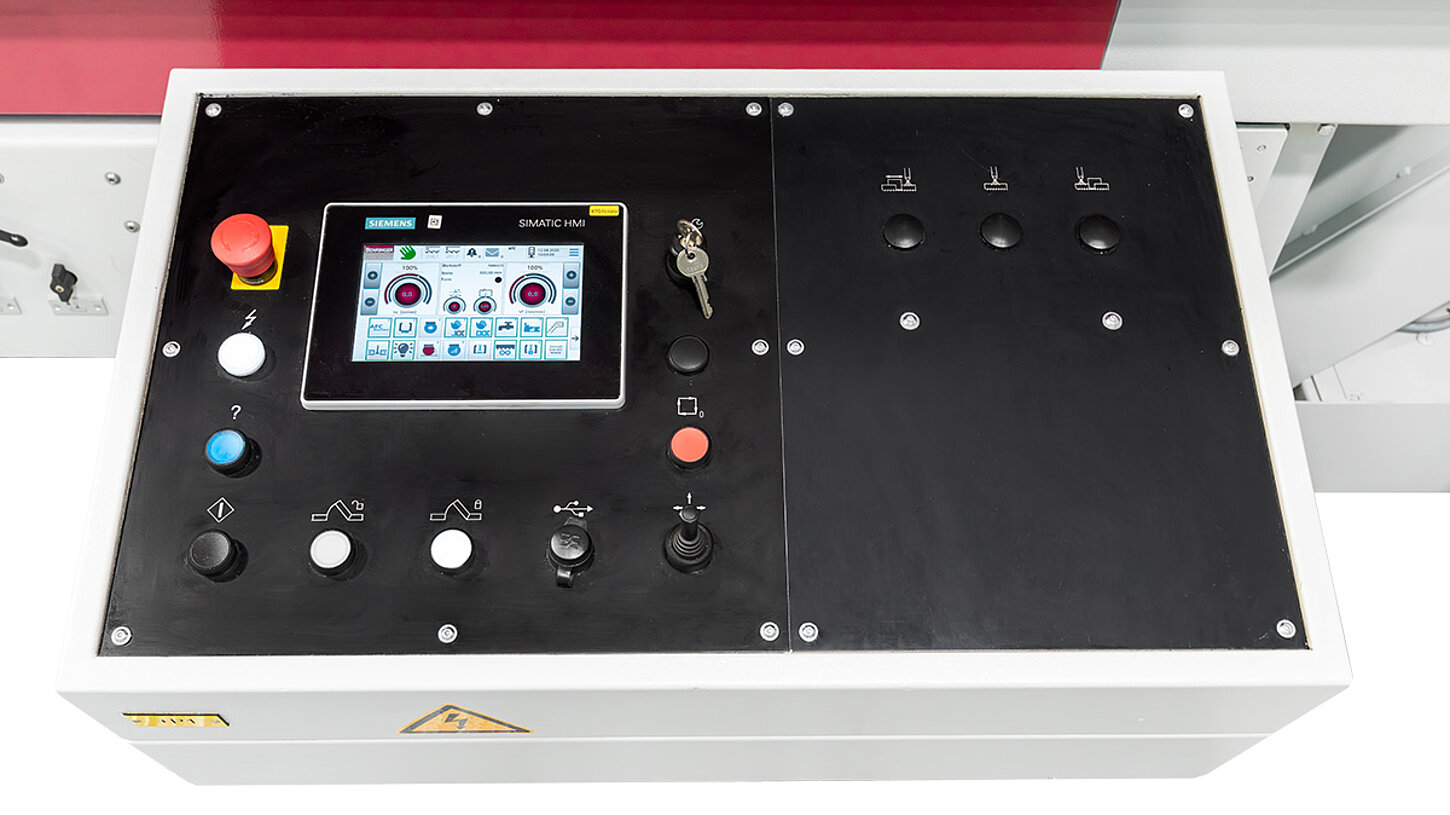

Innovative BehrCtrl10 control system with AFC Pro
-

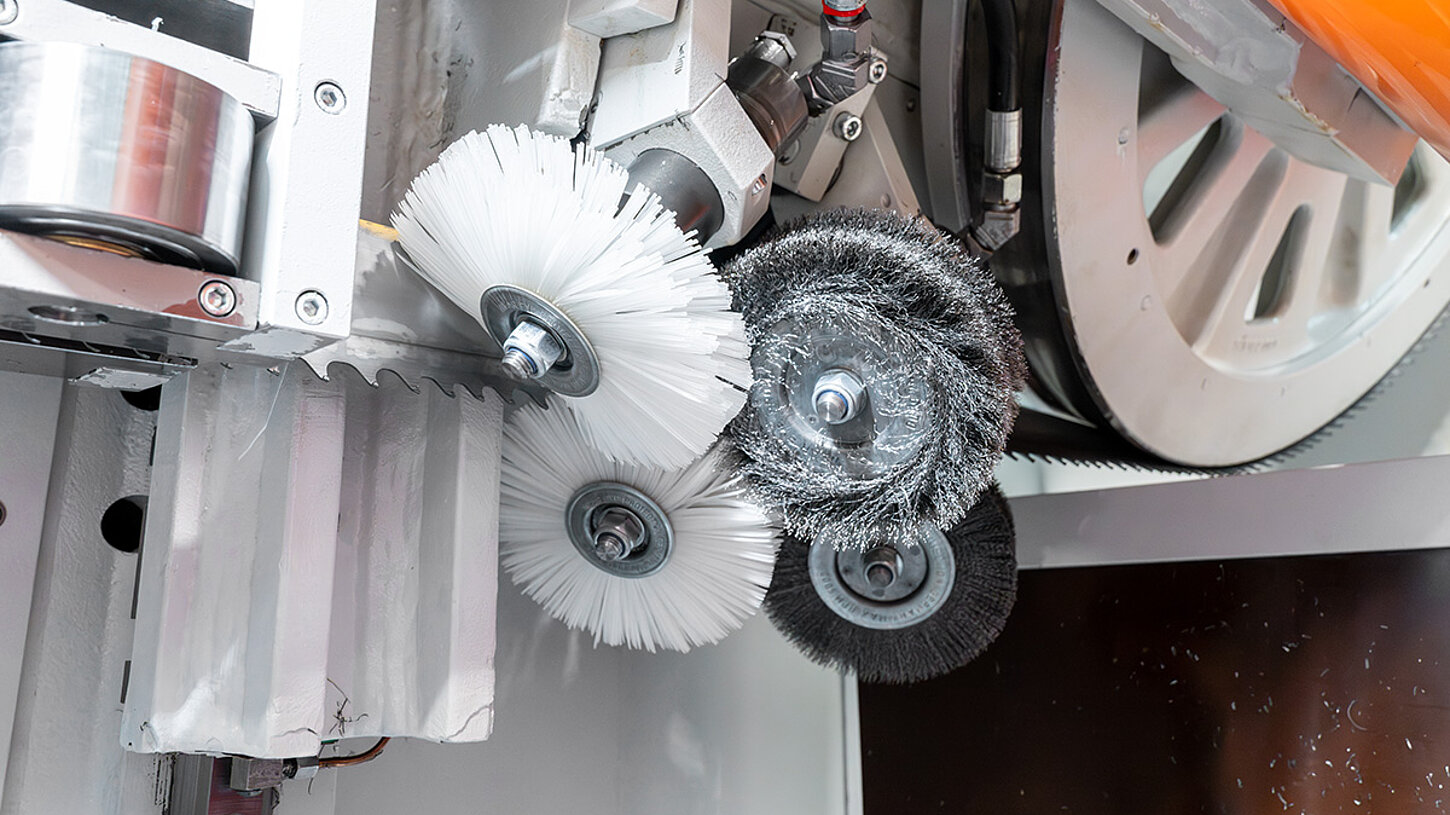

Quadro chip brush
-

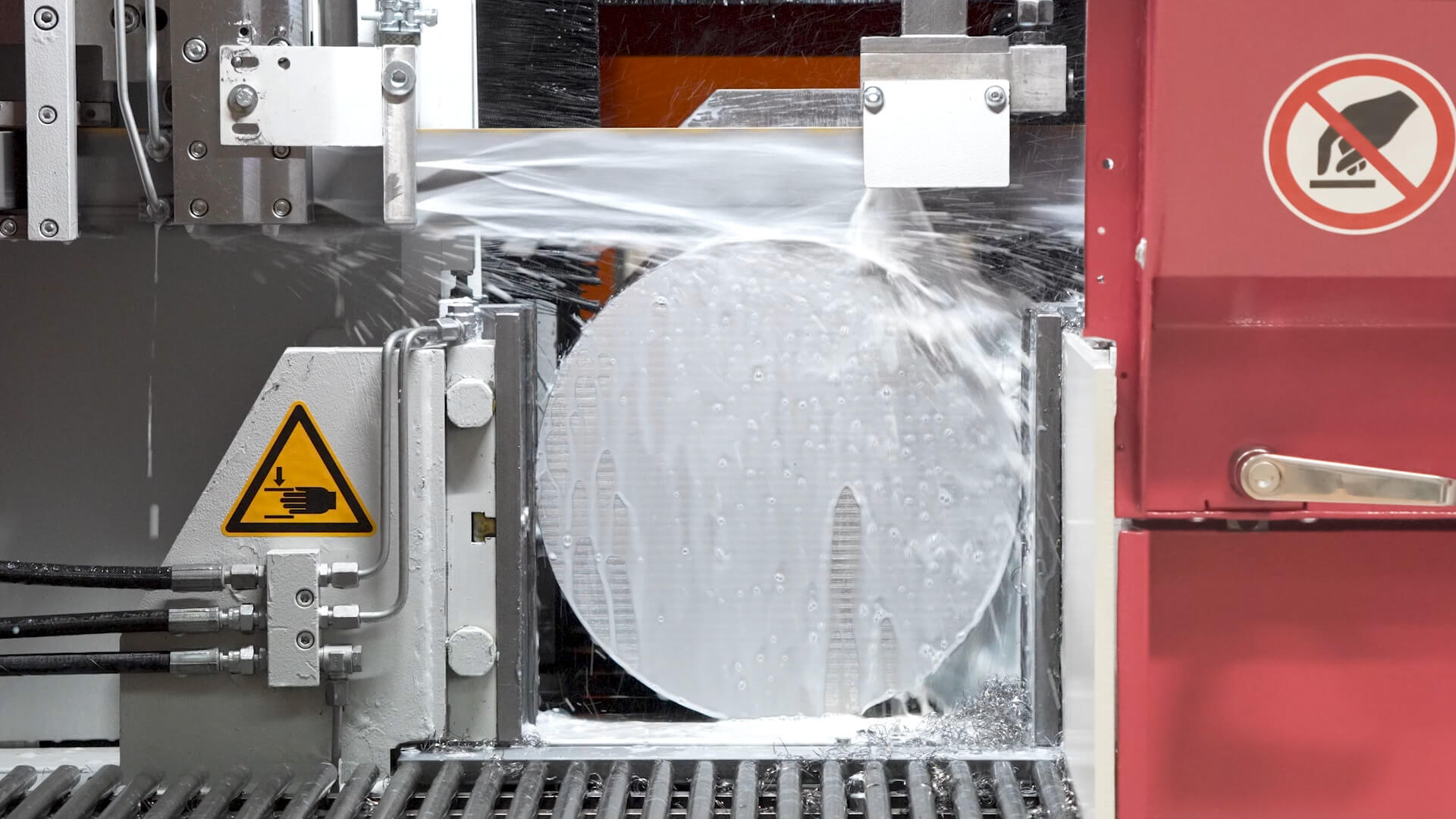

Sawing example: 16MnCr5 tool steel with SpeedCutting technology
- Fastest band saw on the market
The HBM500SC sets new standards in high-performance sawing. With extremely short cutting times and maximum repeat accuracy, it achieves a level of performance that was previously only possible with circular saws—and with the flexibility of a band saw.
- Prepared for automation
A powerful machine concept puts high demands on material handling. The production band saws of the HBM series are often configured as automated sawing systems. Therefore, the machines are already prepared in the basic configuration for the connection of extensive material handling equipment.
- SpeedCutting-Technology
The combination of SC-Performance band guides, high-performance cooling system, dynamically controlled saw feed and specially optimized Auto-Feed-Control allows you to get the maximum performance and tool life.
- Maximum flexibility
From structural steel to tool steel and high-alloy grades, the HBM500SC processes a wide range of materials. Different saw blades can be used depending on the application. The cut length also remains flexible.
- Optimum chip disposal
Maximum cutting performance requires efficient chip removal. The wide, funnel-shaped machine base ensures that chips flow freely into the conveyor below. The standard link belt chip conveyor with a discharge height of 1,600 mm allows the use of large chip buckets and reduces downtime.
- Sensitive Behringer cutting pressure control
increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.
| Feeding length single stroke | 600 mm |
| Drive power | 22 kW |
| Blade speed | 20 - 500 m/min |
| Saw blade dimensions | 7,500 x 67 x 1.6 mm |
| Rest piece length in automatic operation | 70 mm |
| Total power | 33 kW |
| Saw feed | servo-feed via ball screw |
| Material feed | ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | 4x electrically driven chip brush |
