The aluminium bandsaw HBM540ALU is specially designed for sawing ingots and billets made of aluminium or comparable non-ferrous metals such as magnesium. They cut quickly, reliably, precisely and with a small kerf, thus contributing to future-proof, resource-saving production. The aluminium saw can be designed to suit the application, from simple automatic machines with chip conveyors to automated, interlinked saw cells with integrated chip extraction.

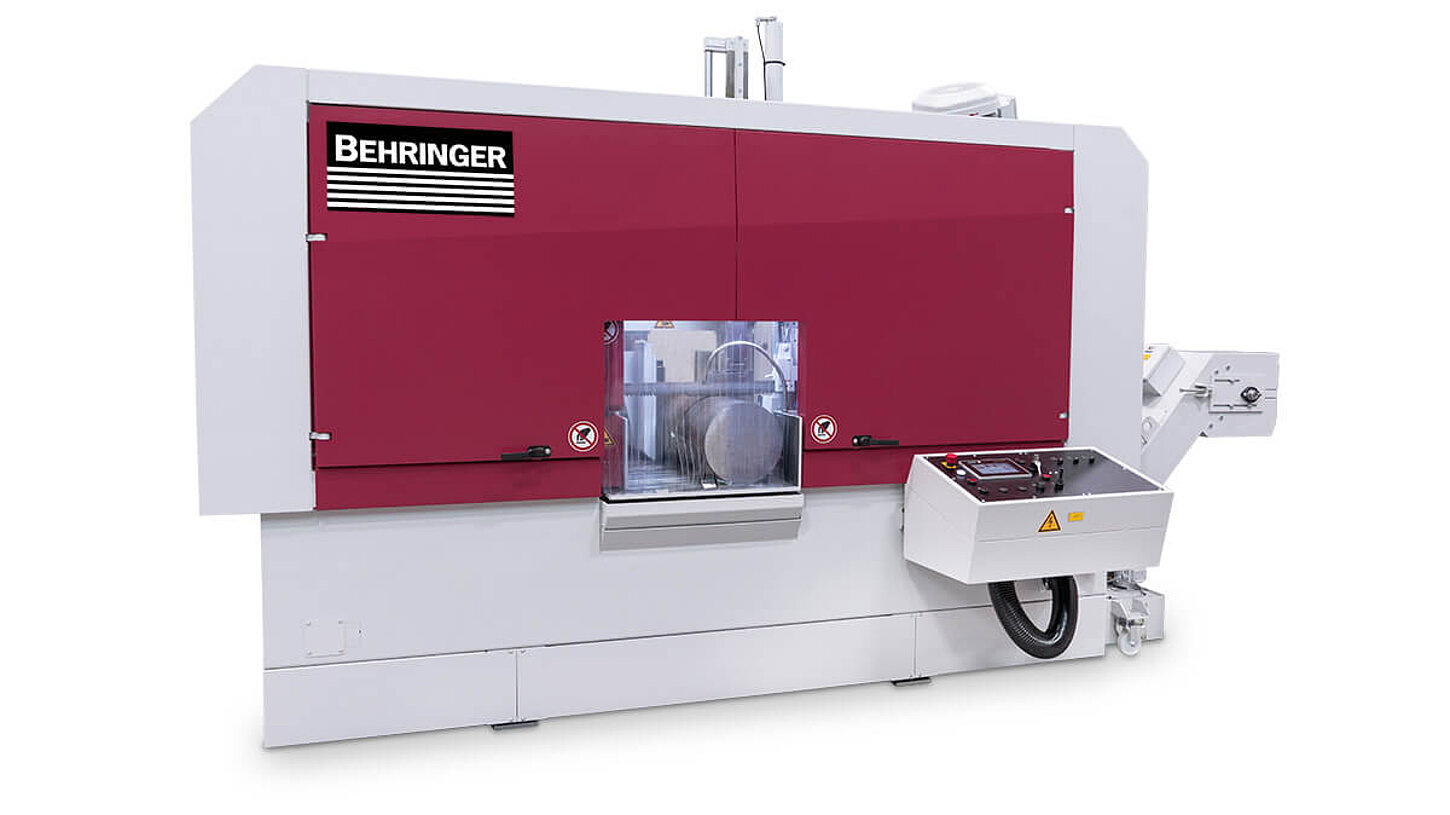

Aluminium bandsaw HBM540ALU

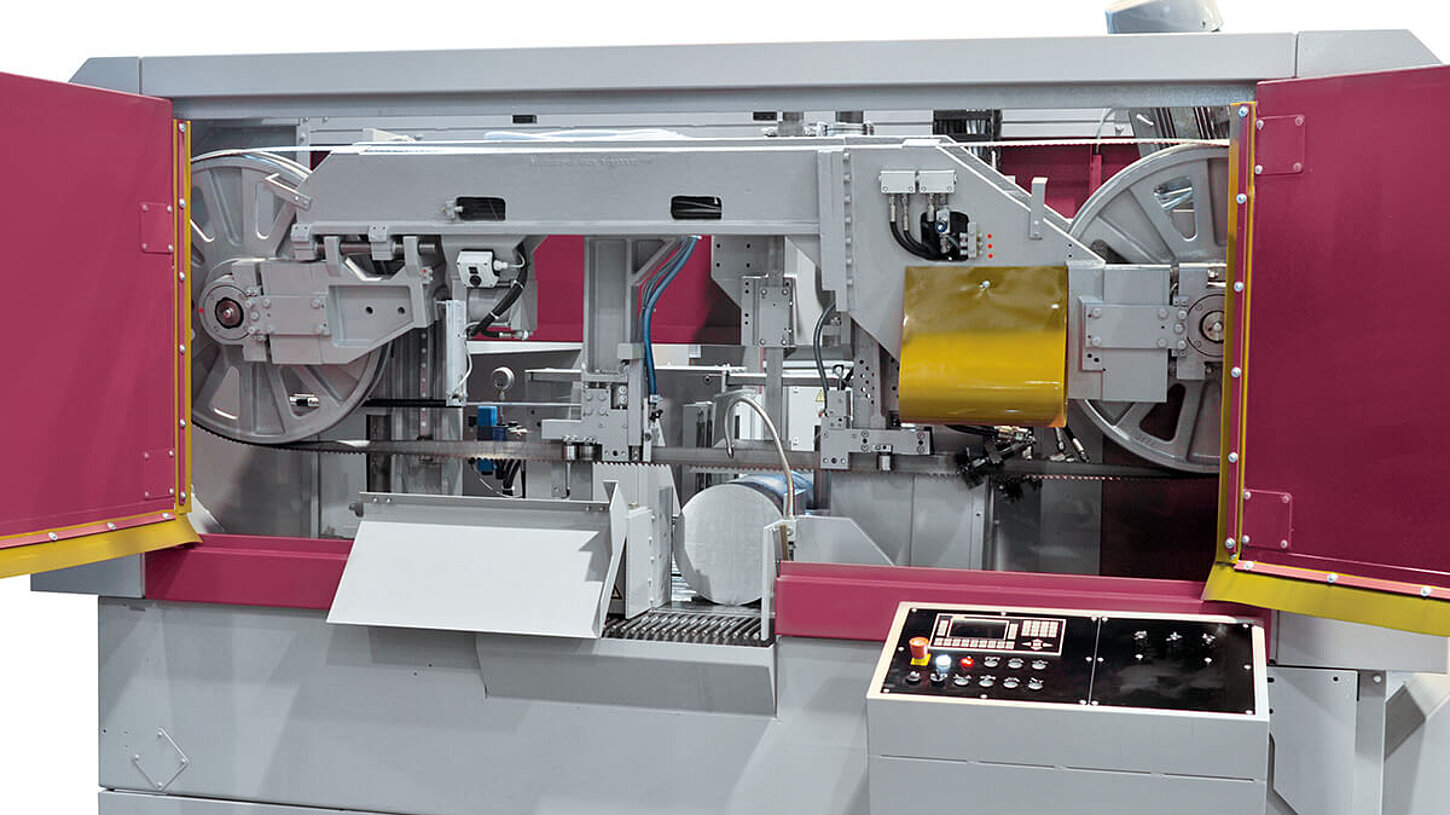

HBM high performance aluminium sawing unit

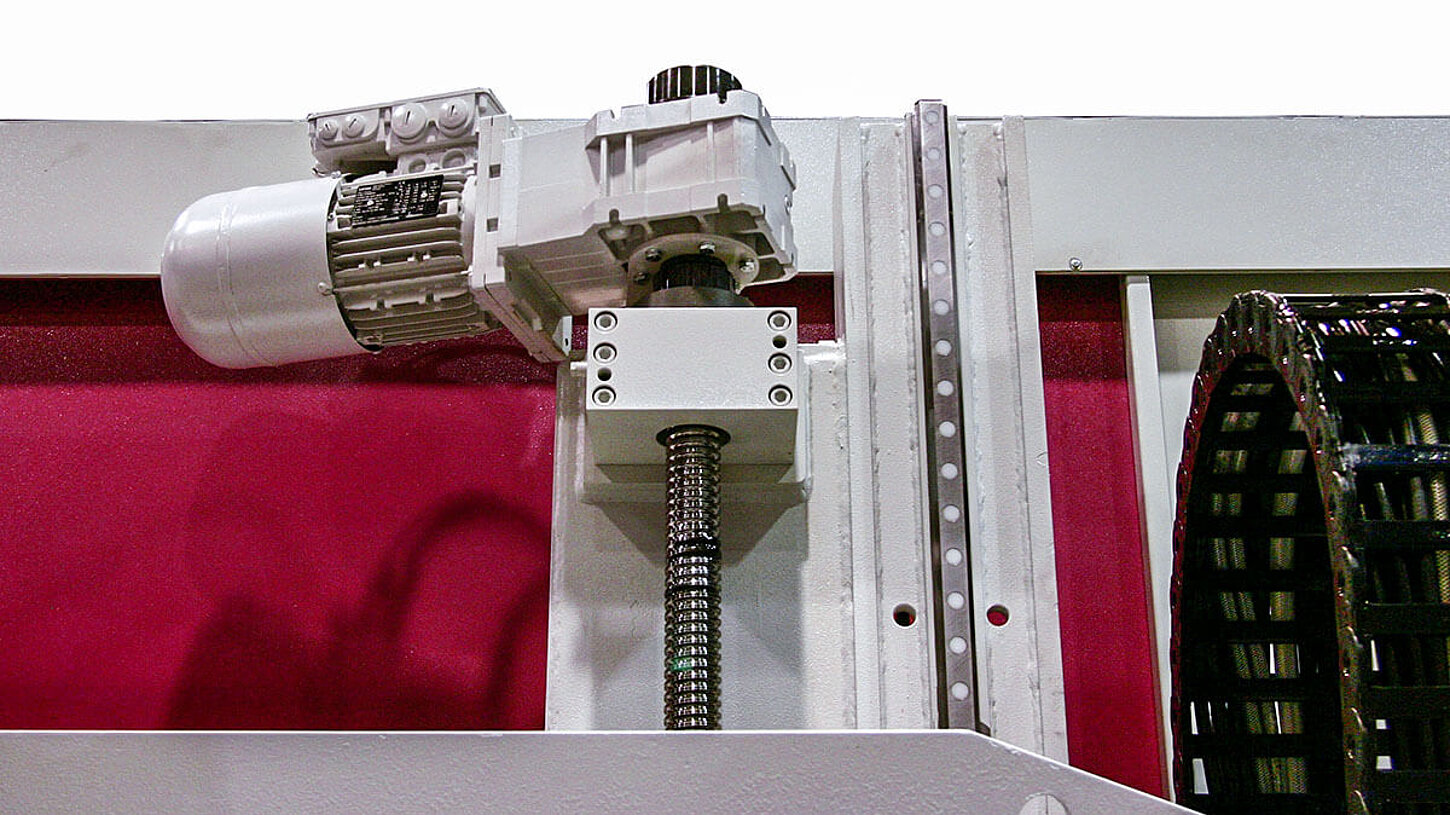

Servo feed system for short non-productive times

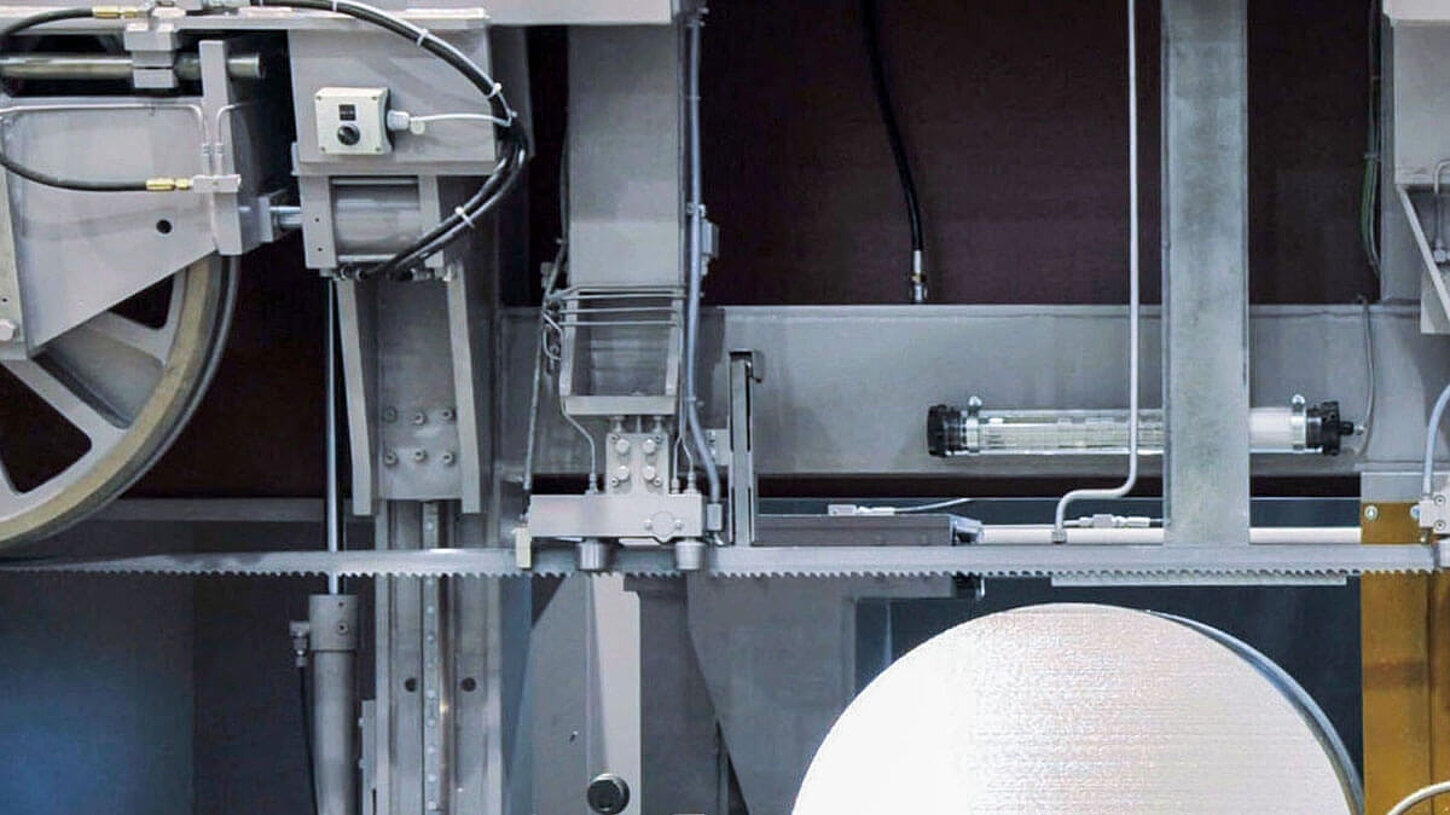

Roller band guides with integrated spray lubrication
Sawing example aluminium 300 mm diameter
- Prepared for automation
A powerful machine concept puts high demands on material handling. The production band saws of the HBM series are often configured as automated sawing systems. Therefore, the machines are already prepared in the basic configuration for the connection of extensive material handling equipment.
- Chip disposal suitable for the application
In the high-performance sawing of aluminium and non-ferrous metals, large quantities of chips are produced that have to be removed reliably. Whether with chip conveyor or connected to a central extraction system - the chip removal of the HBM aluminium saw grows dynamically with your requirements.
The aluminium bandsaw HBM540ALU can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.
|Feeding length single stroke||500 mm|
|Drive power||22 kW|
|Blade speed||300 - 1,300 m/min|
|Saw blade dimensions||7,500 x 34 x 1.1 mm|
|Rest piece length in automatic operation||50 mm|
|Total power||29 kW|
|Saw feed||servo-feed via ball screw|
|Material feed||ball screw|
|Saw blade cleaning||electrically driven chip brush|
