Production band saw HBM800A

Highest performance through innovative Speed-Cutting technology

The innovative SpeedCutting technology of the HBM800A high-speed saw series allows process-reliable cutting performance that was previously unthinkable. The HBM800A shows its full potential especially when sawing tool steels to stainless steels or high-alloy materials such as Inconel or Titanium. The production bandsaw thus covers a wide range of applications in industry and the steel trade. Thanks to the combination of a powerful machine base, modern servo technology, innovative cooling system and process-reliable chip disposal, the HBM800A gets the maximum out of the tool used - regardless of whether it is a carbide or bi-metal blade.

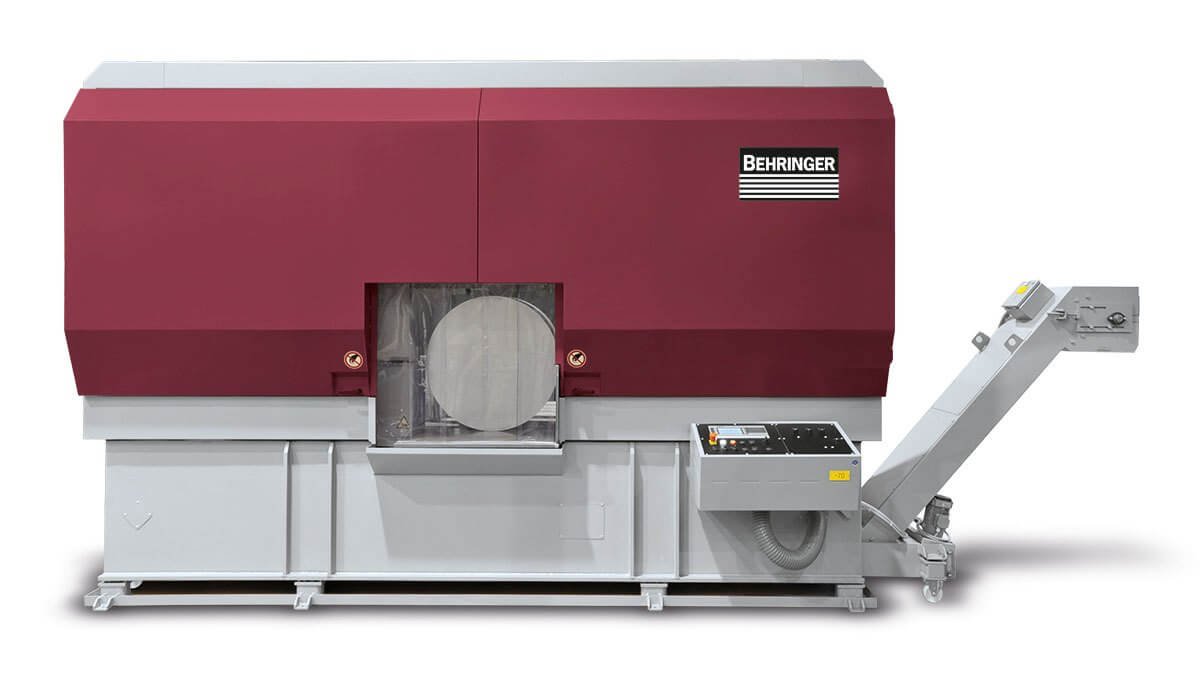

  • Behringer production band saw HBM800A

    Production band saw HBM800A

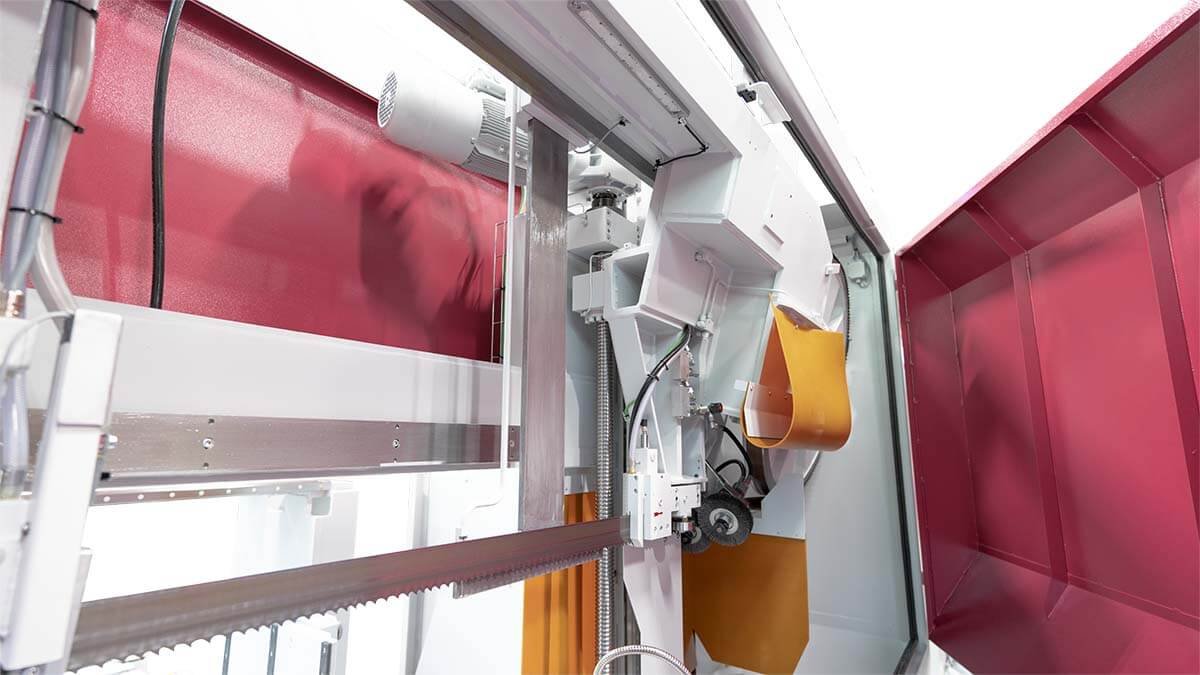

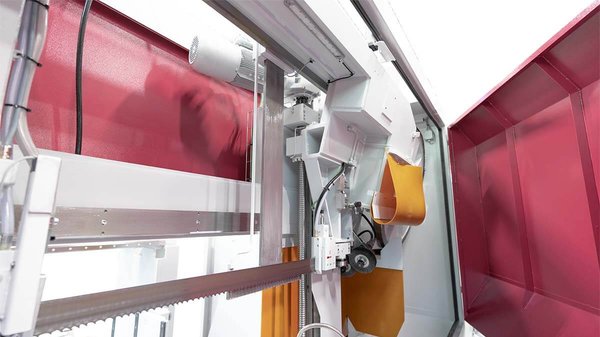

  • Behringer production band saw HBM800A saw unit with innovative speed cutting technology

    High-performance sawing unit with BEHRINGER Speed-Cutting technology

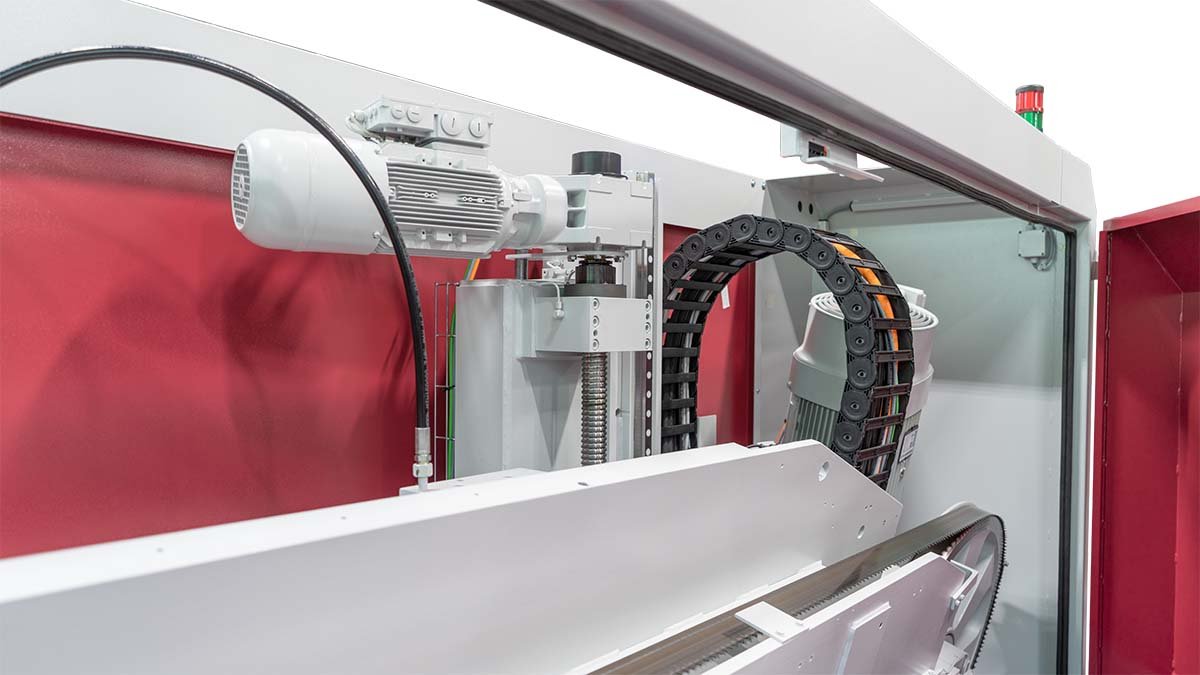

  • Behringer production band saw HBM800A

    Servo feed system with auto-feed-control (AFC)

  • Youtube Logo

    Sawing example 42CrMo4 with Speed-Cutting technology

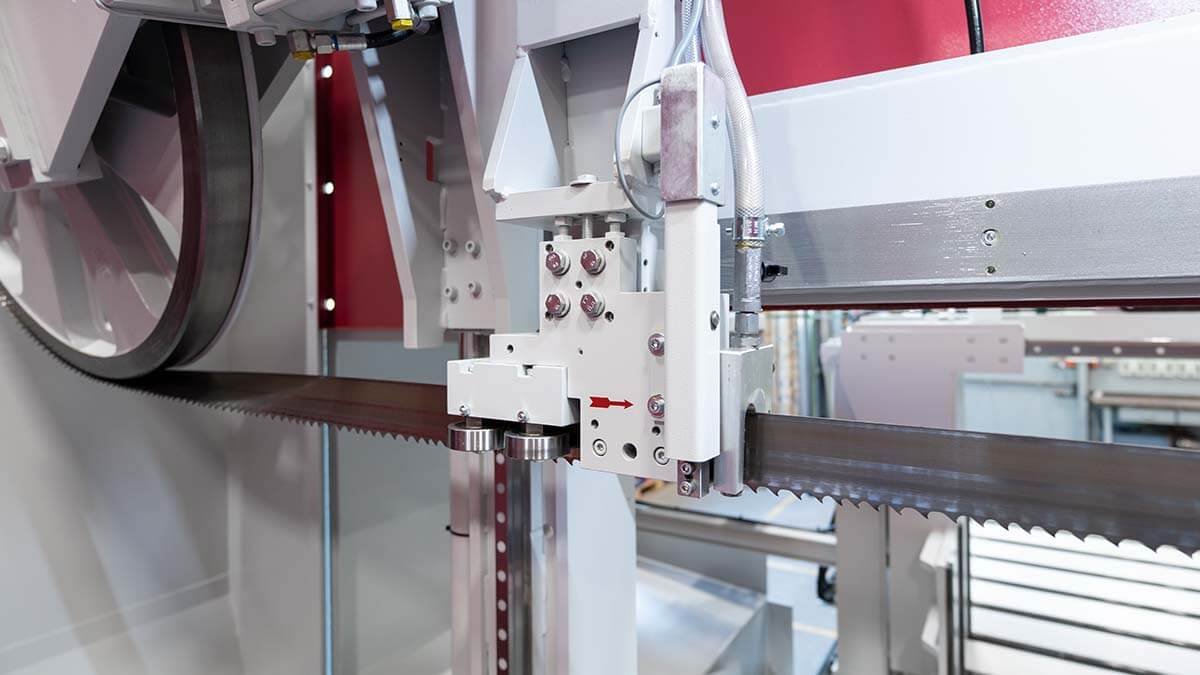

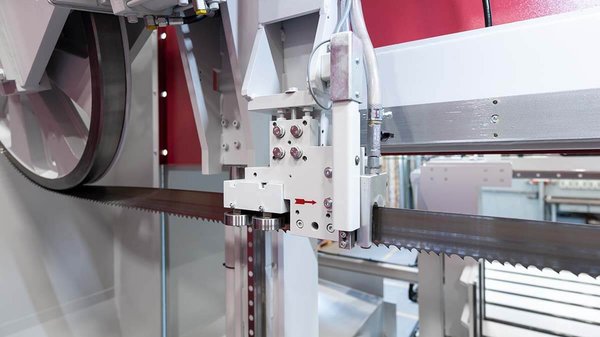

  • Behringer production band saw HBM800A special speed cutting band guides

    HBM band guide with high-performance cooling

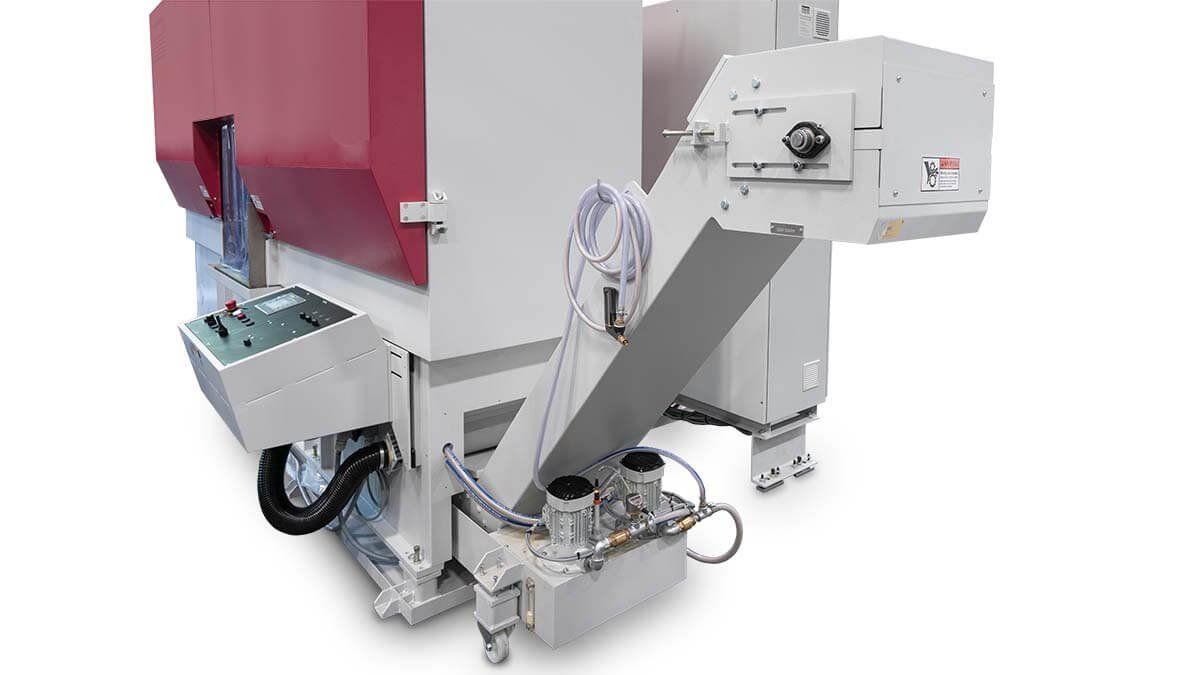

  • Behringer production band saw HBM800A powerful chip conveyor

    Chip conveyor with integrated coolant tank

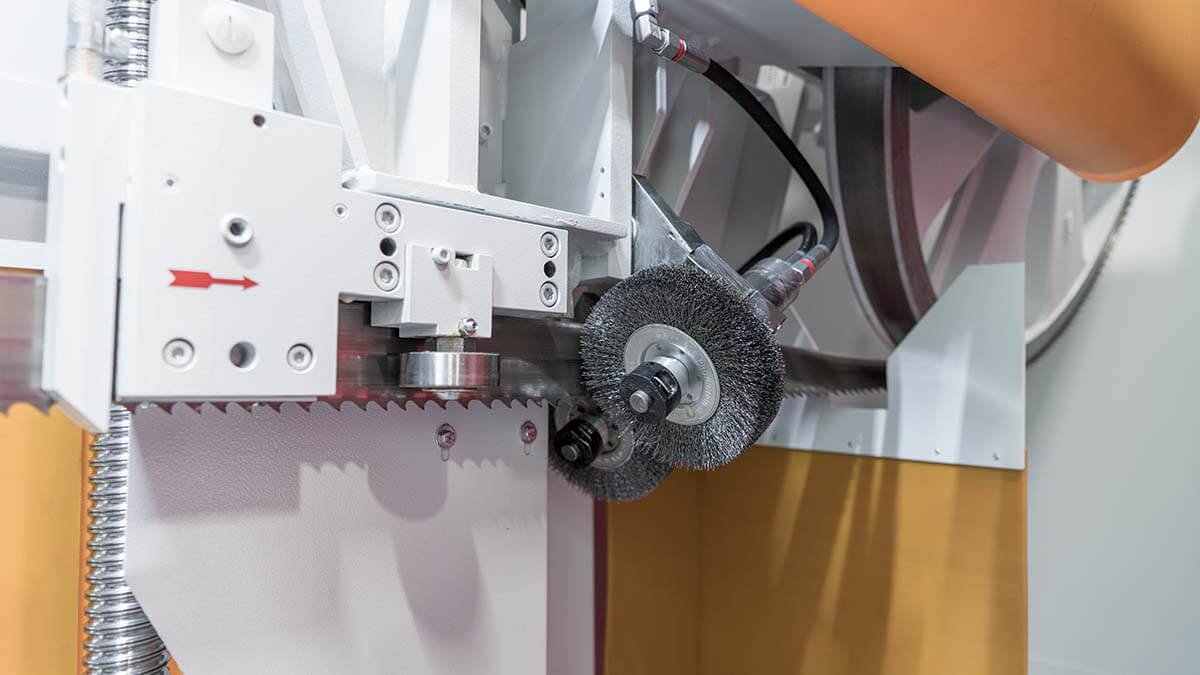

  • Behringer production band saw HBM800A driven duplex chip brushes

    Duplex chip brush

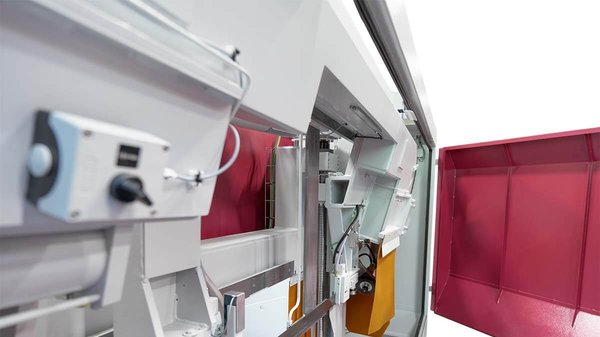

  • Behringer production band saw HBM800A band guiding parts made of vibration damping gray cast iron

    Cast iron band guiding parts

Features of the production band saw HBM800A

  • SpeedCutting-Technology (option)
    The combination of SC-Performance saw blade guides, high-performance cooling system, dynamically controlled saw feed and specially optimized Auto-Feed-Control allows you to get the maximum performance and tool life.

  • Prepared for automation
    A powerful machine concept puts high demands on material handling. The production band saws of the HBM series are often configured as automated sawing systems. Therefore, the machines are already prepared in the basic configuration for the connection of extensive material handling equipment.

  • Servo downfeed system
    The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds. Your advantage: higher cutting performance and longer band life!

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Optimum chip disposal
    Highest cutting performance requires high standards of chip disposal. The wide, funnel-shaped machine base allows chips to fly freely into the chip conveyor with integrated coolant tank below. The ejection height of 800 mm or optionally 1,200 mm allows the use of large chip buckets.

  • Economical use of carbide saw blades
    due to robust design, use of latest servo technology and well dimensioned chip disposal.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best cutting results and maximum service life.

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

Individual Configuration

The production band saw HBM800A can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Productivity boost for your production

Faster cuts with the new AFC Pro



  • Countering the shortage of skilled labour
    Optimum sawing results WITHOUT prior knowledge of the operator.

  • Increase your output
    Significantly increased cutting performance thanks to dynamic sawing process (up to 50% depending on material).

  • Wide range of materials - no problem
    The extensive material database even takes tempering or electro-slag remelting (ESR) into account.

  • Scalable production
    The sawing know-how is in the machine control system. This allows you to easily adapt your production to changing requirements.

We would be happy to show you how you can make your production even more efficient with our sawing solutions.

Get in touch with us!

Technical data production band saw HBM800A

Cutting range 90° round 800 mm
Cutting range 90° flat 800 x 800 mm
Smallest dimension to be sawn round 50 mm
Smallest dimension to be sawn flat 50 x 50 mm
Feeding length single stroke 600 mm
Drive power 11 kW
Blade speed 17 - 120 m/min
Saw blade dimensions 9,400 x 67 x 1.6 mm
Rest piece length in automatic operation 70 mm
Total power 19 kW
Saw feed servo-feed via ball screw
Material feed ball screw
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 2,900 mm
Width 5,150 mm
Height 3,000 mm
Weight 7,800 kg
Material support height 800 mm
