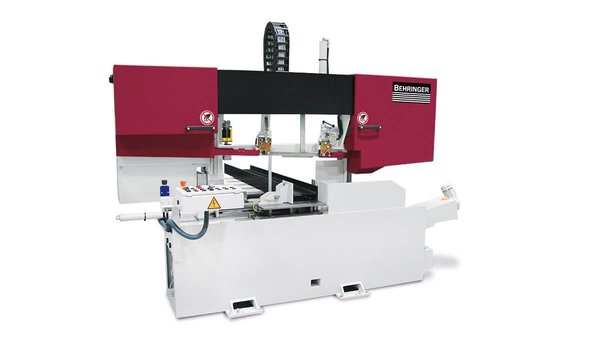

Metal cutting bandsaw HBE320-523

For metal construction, steel construction and sectional steel trade

The horizontal bandsaw HBE320-523 perfectly combines the advantages of modern high-performance machines for individual sawing tasks with proven, unique BEHRINGER features. With its extensive range of applications, the band saw reliably covers all the requirements of small and medium-sized workshops. Make your production even more economical with powerful, precise cuts at low cutting costs.

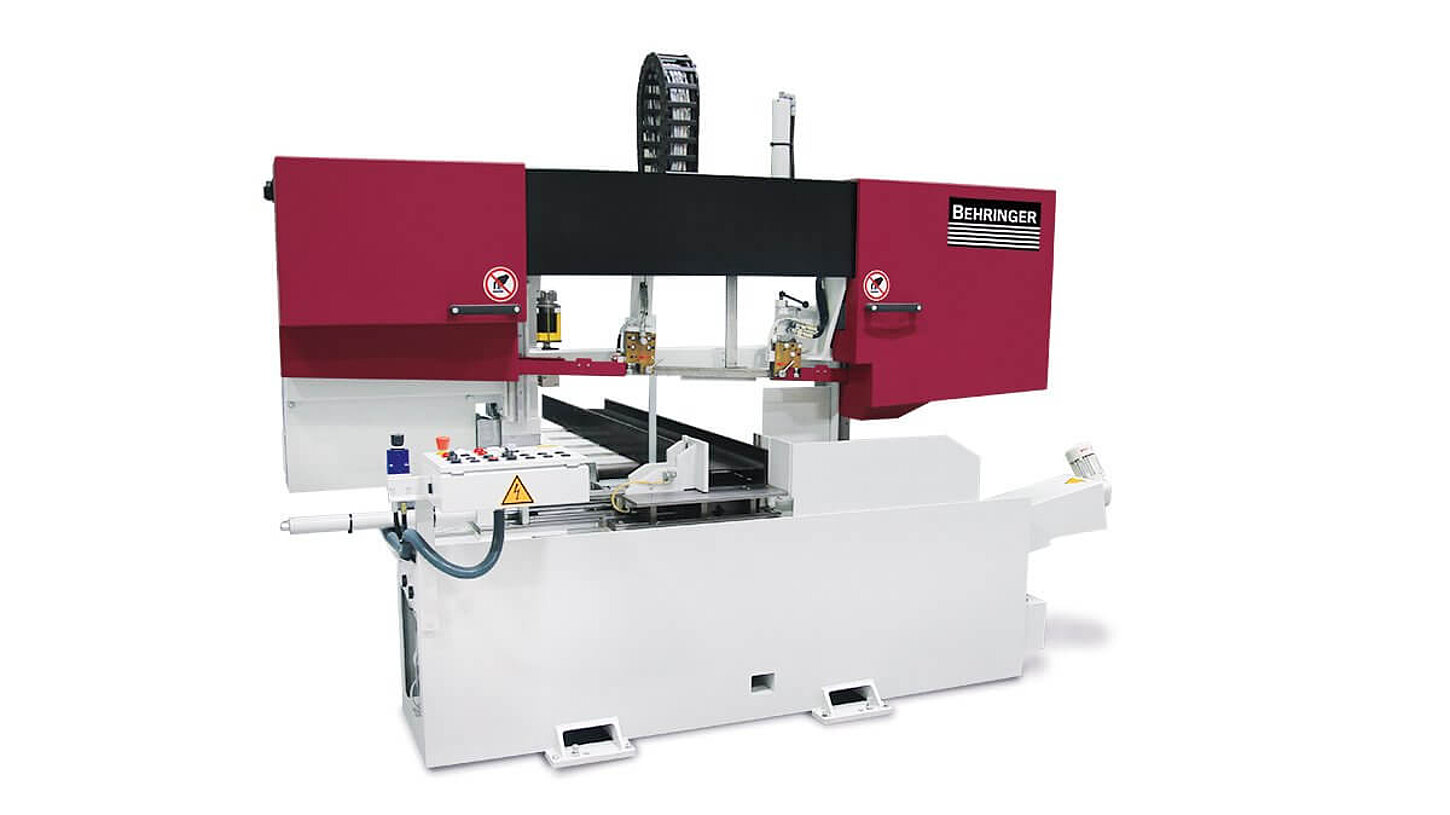

  • Behringer metal cuttig bandsaw HBE320-523

    Metal cutting bandsaw HBE320-523

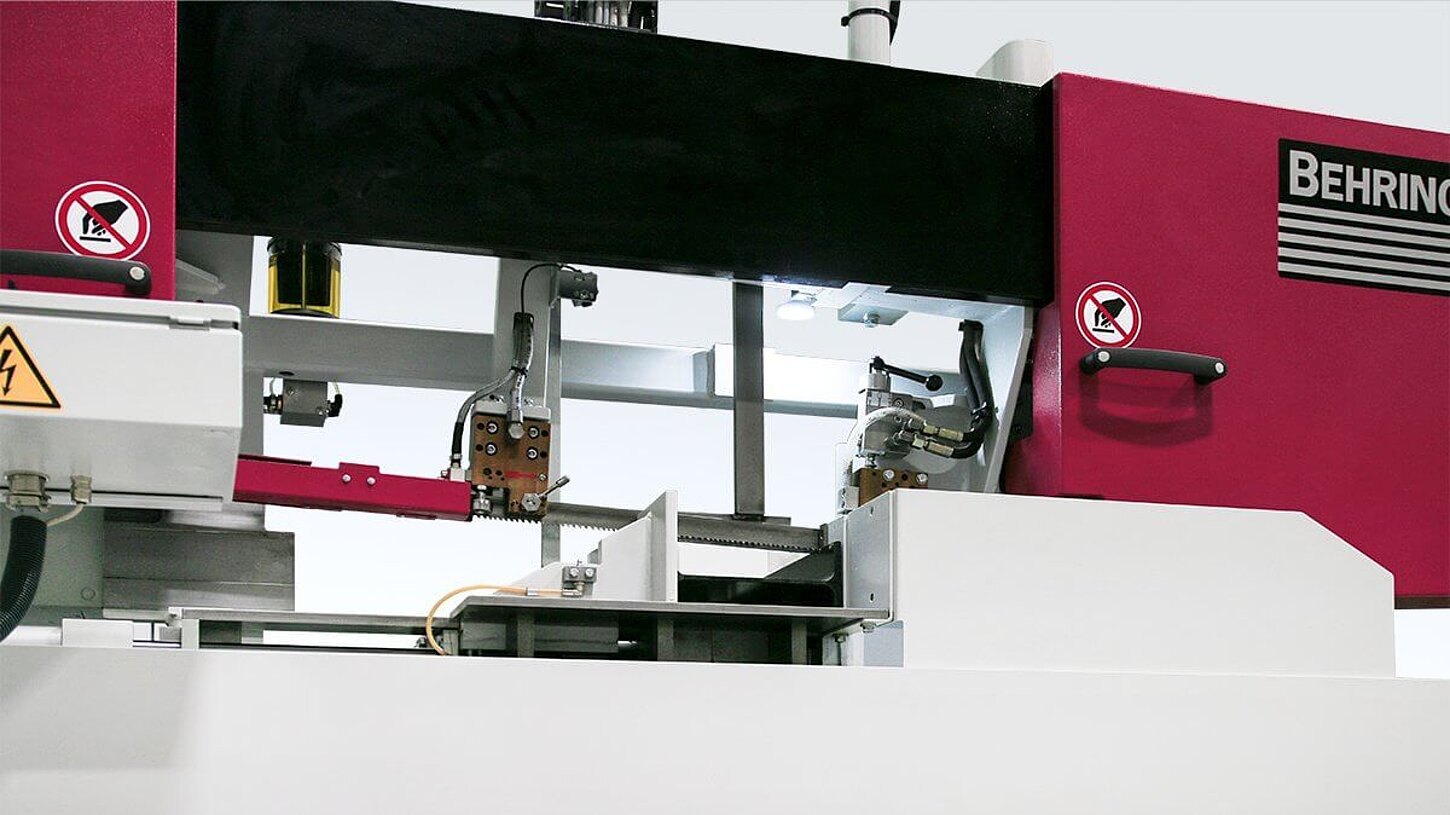

  • Behringer metal cuttig bandsaw HBE320-523 lighting

    Lighting (option)

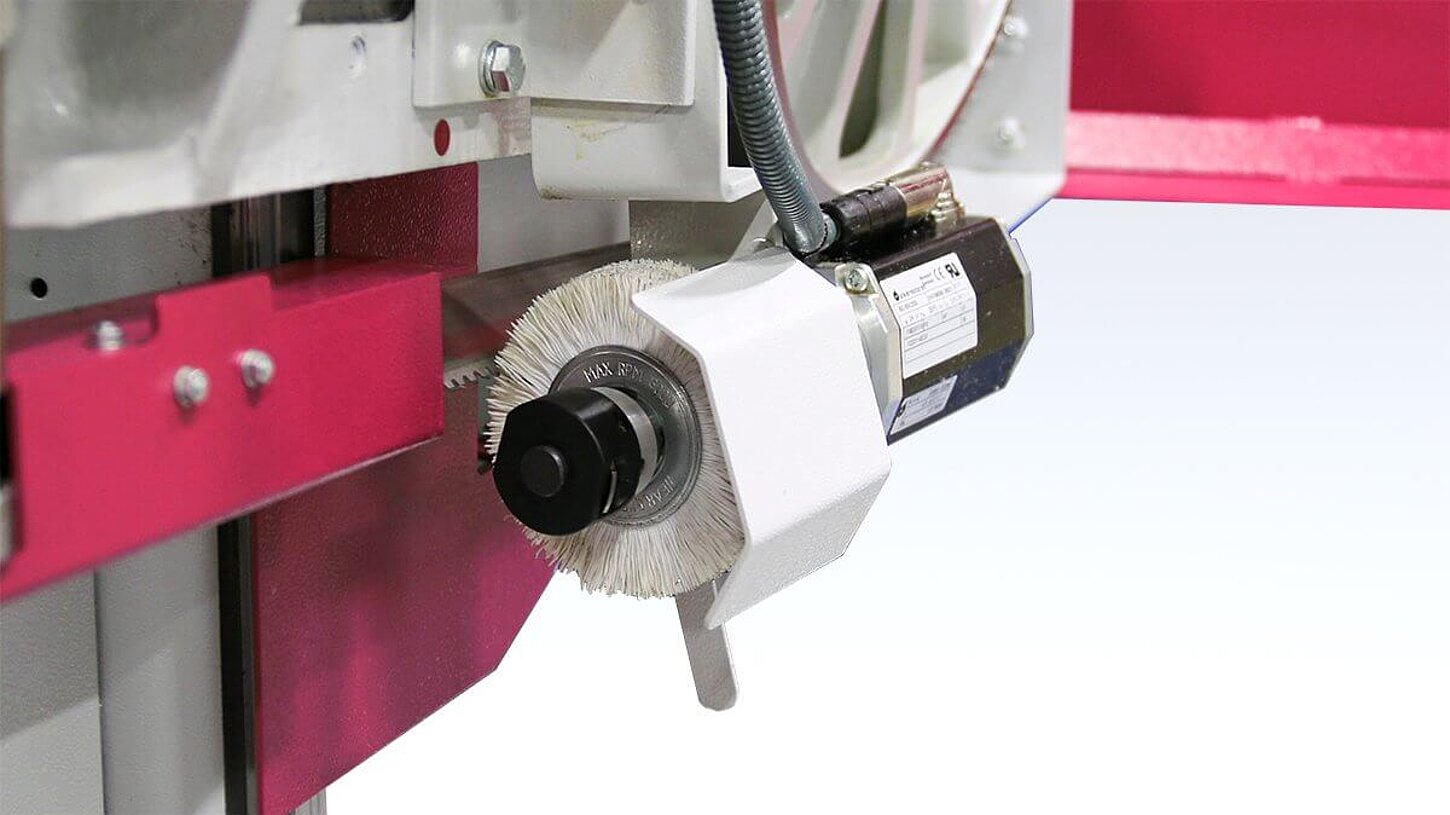

  • Behringer metal cuttig bandsaw HBE320-523 electric chip brush

    Electrically driven chip brush

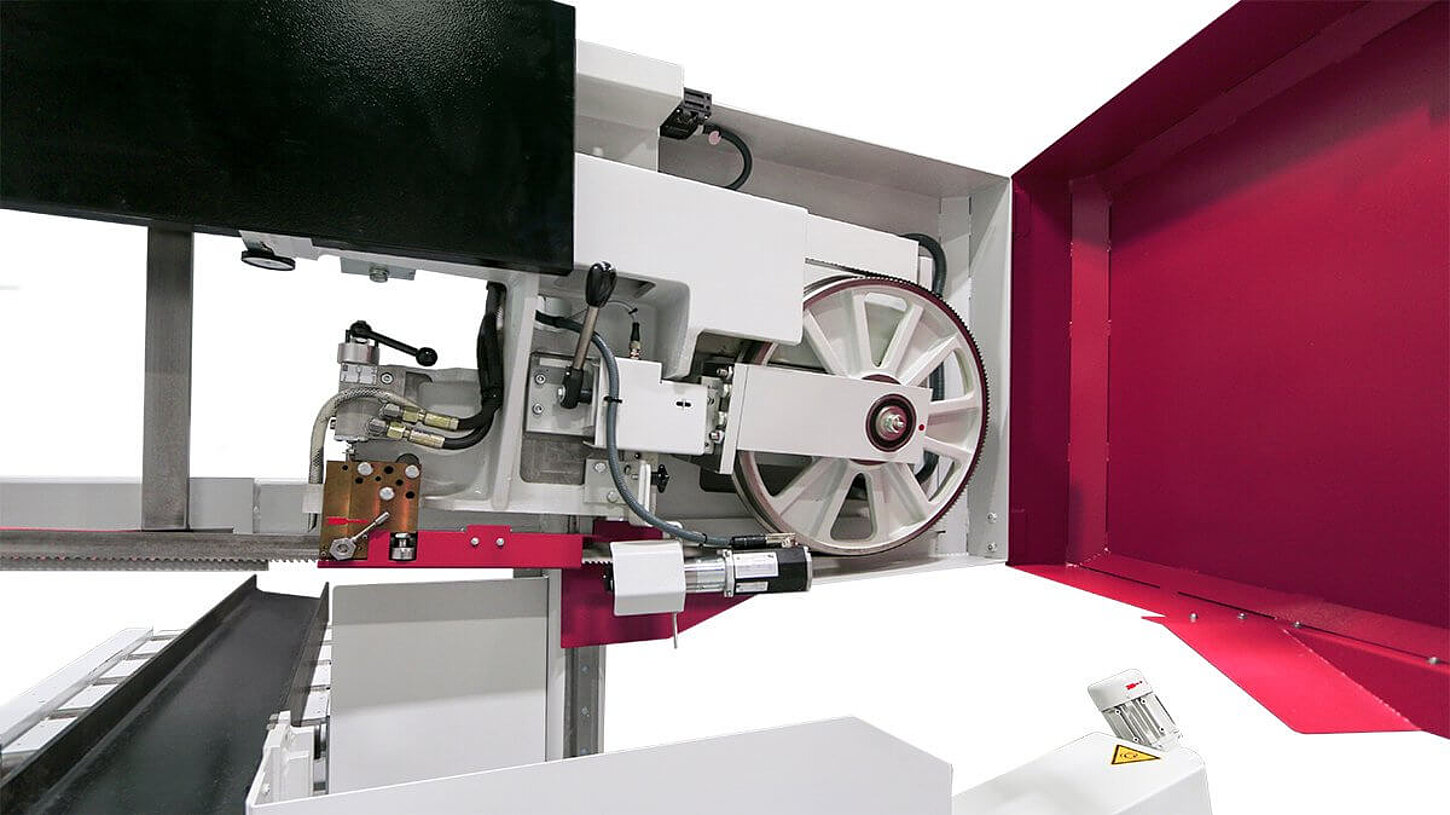

  • Behringer metal cutting bandsaw HBE320-523 drive wheel made of vibration damping cast iron

    Cast iron band guiding parts

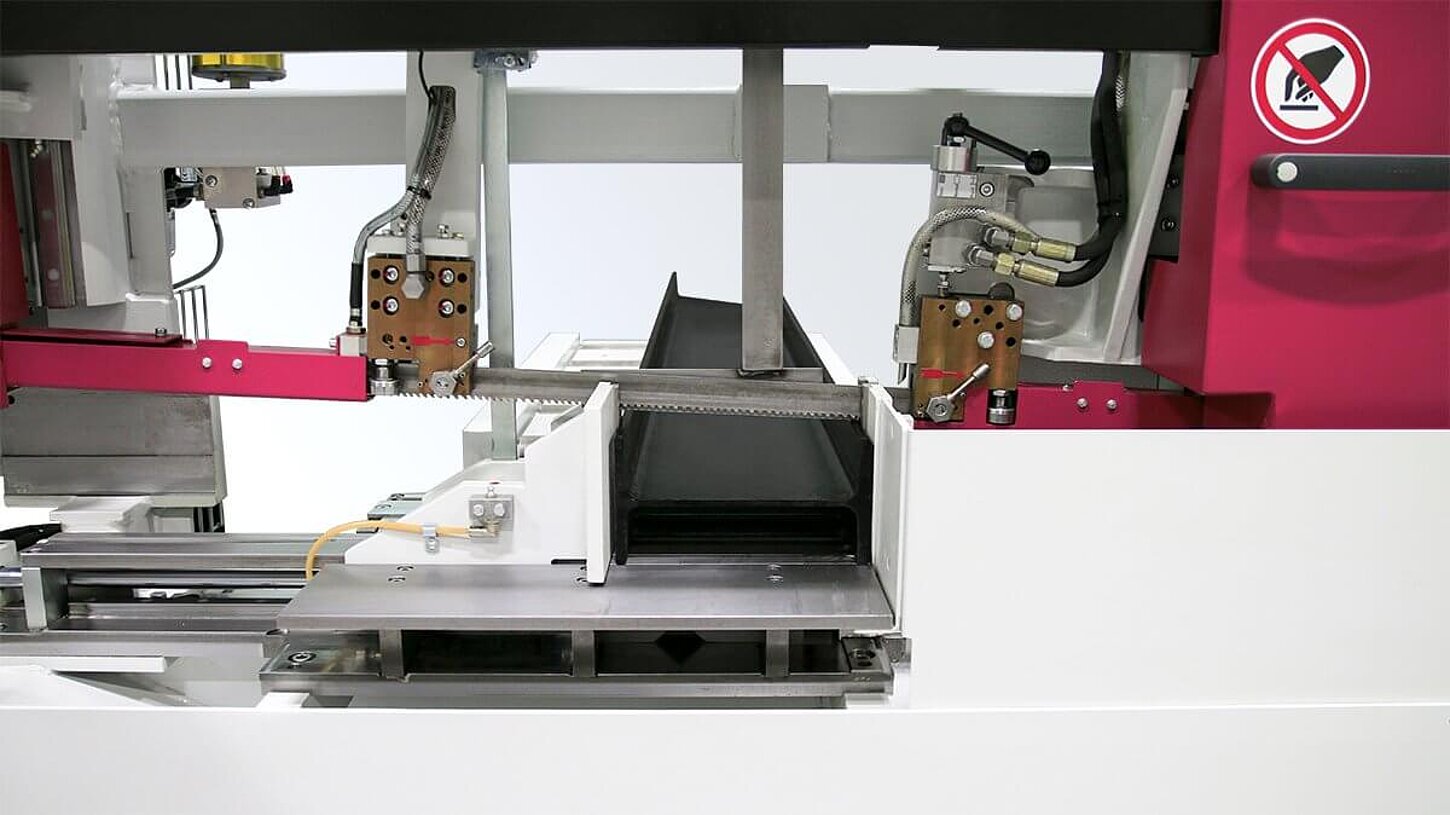

  • Behringer metal cuttig bandsaw HBE320-523 material vice

    Double clamping vice of the horizontal bandsaw

Features of the metal cutting bandsaw HBE320-523

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

  • Electrically driven chip brush
    with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

  • Double clamping vice
    is ideal for clamping single cuts. The clamping jaws are arranged on both sides of the saw band. When setting up, the material can simply be aligned with the blade. After sawing through, the horizontal bandsaw securely holds the section and the starting material.

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Energy efficient
    The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

  • Servo feed system (option)
    The band saw is fed by a servo drive with ball screw. This results in significantly shorter non-productive times and more precise saw feeds. Your advantage: higher cutting output and longer blade life!

Individual Configuration

The metal cutting bandsaw HBE320-523 can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data metal cutting bandsaw HBE320-523

Cutting range 90° round 320 mm
Cutting range 90° flat 520 x 320 mm
Smallest dimension to be sawn round 10 mm
Smallest dimension to be sawn flat 10 x 8 mm
Drive power 2.6 kW
Blade speed 15 - 110 m/min
Saw blade dimensions 5,300 x 34 x 1.1 mm
Rest piece length 40 mm
Total power 3.7 kW
Length 1,150 mm
Width 2,750 mm
Height 2,150 mm
Weight 1,600 kg
Material support height 800 mm
