Metal cutting bandsaw HBE560

Robust semi-automatic bandsaw for steel trade and industry

The HBE560 is a modern, semi-automatic high-performance horizontal bandsaw in a robust design for the economical cutting of solid metals of all grades and large pipes. Especially for single cuts or difficult material geometries, positioning of the parts on sight by means of a crane or roller conveyor and line laser is recommended. For machining large pipes, the HBE560 can be equipped with a measuring system.

The metal cutting bandsaw HBE560 impresses with its solid, indestructible basic construction and its high cutting performance, which also allows the economical cutting of difficult-to-machine materials such as high-alloy stainless steels, Inconel or titanium in large diameters with carbide saw blades. The HBE560 makes your production even more economical with high-performance, precise cuts and low cutting costs at the same time.

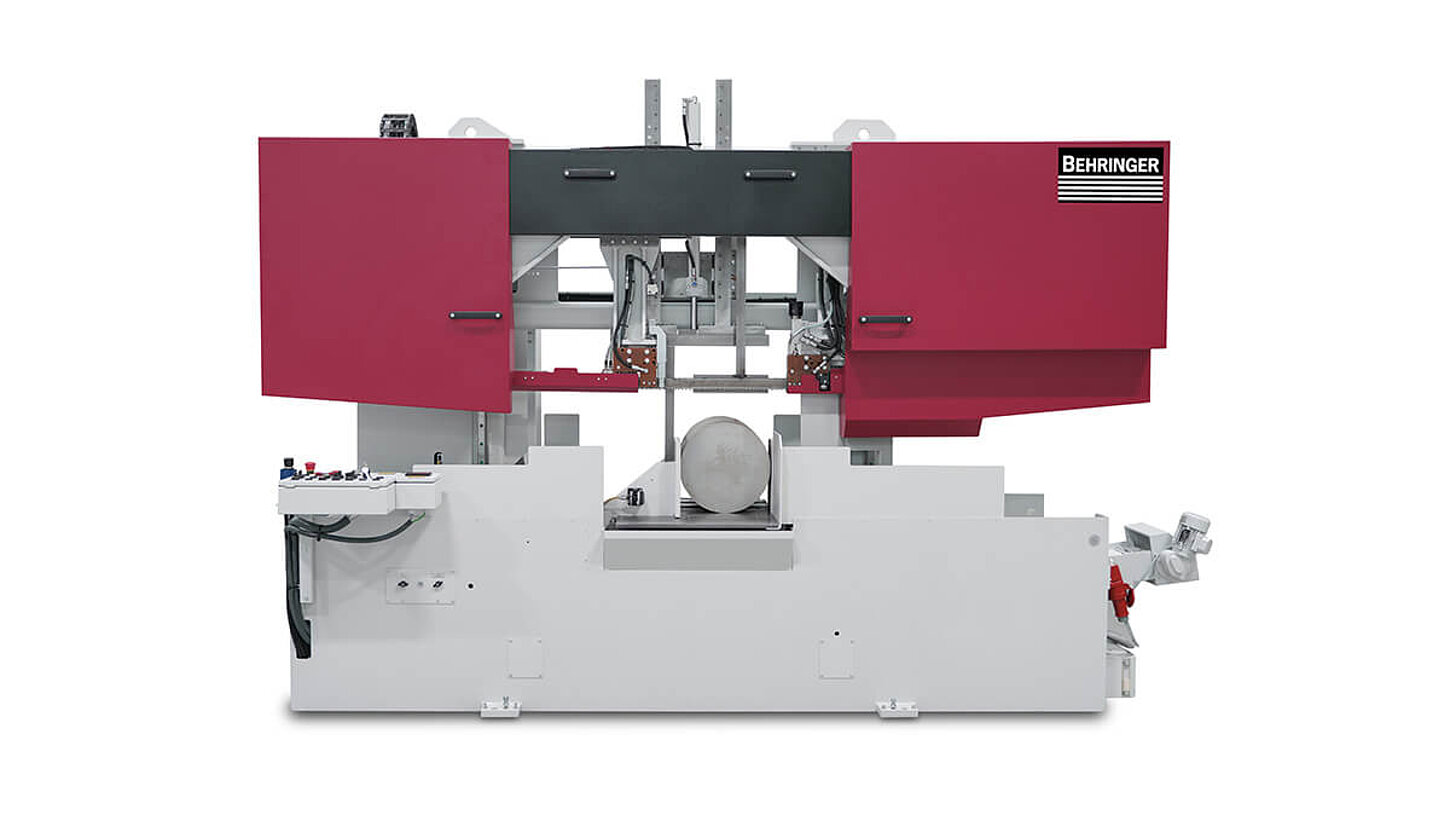

  • Behringer metal cutting bandsaw HBE560

    Metal cutting bandsaw HBE560

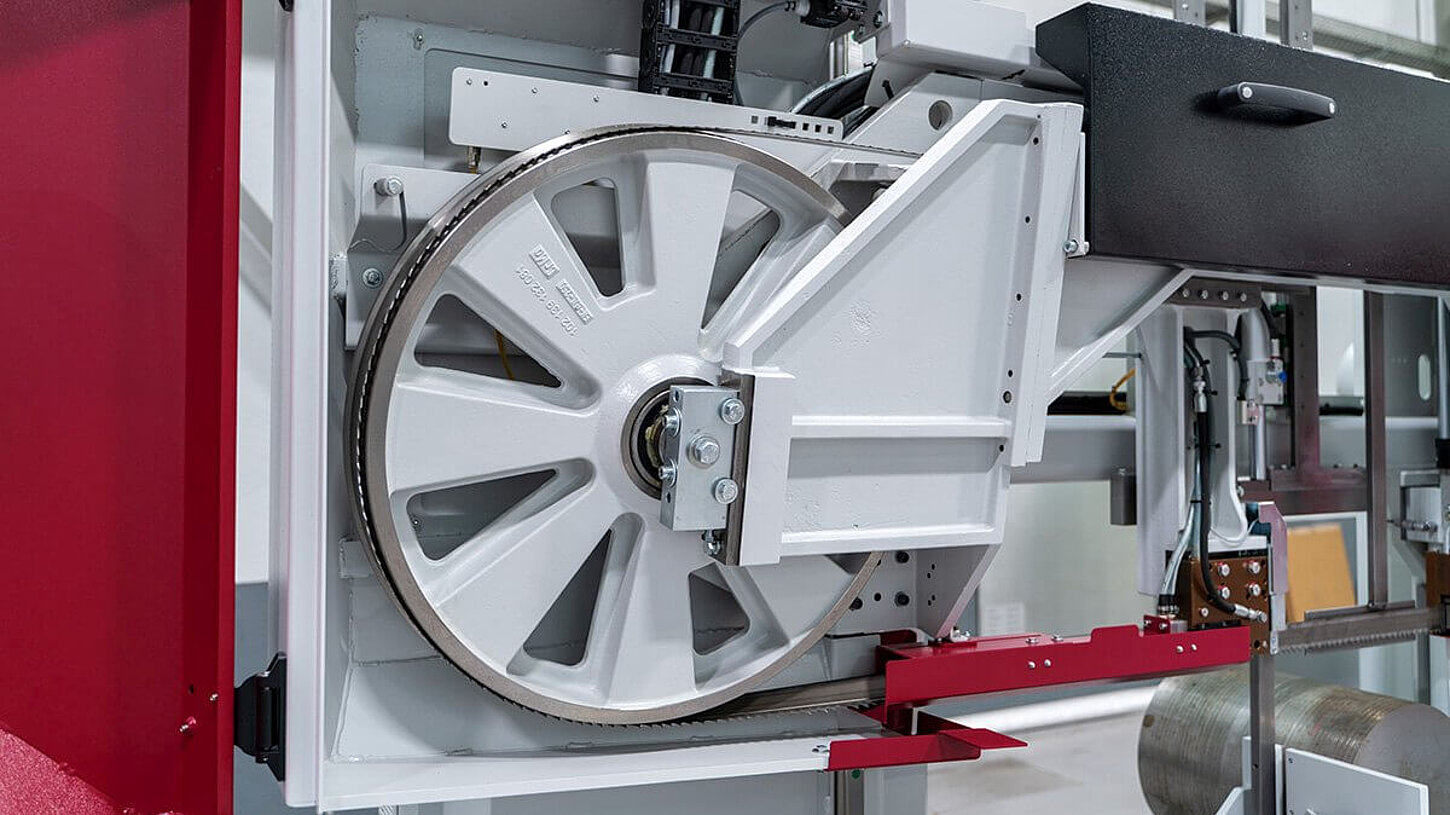

  • Behringer metal cutting bandsaw HBE560 grey cast iron band wheel

    Cast iron band guiding parts

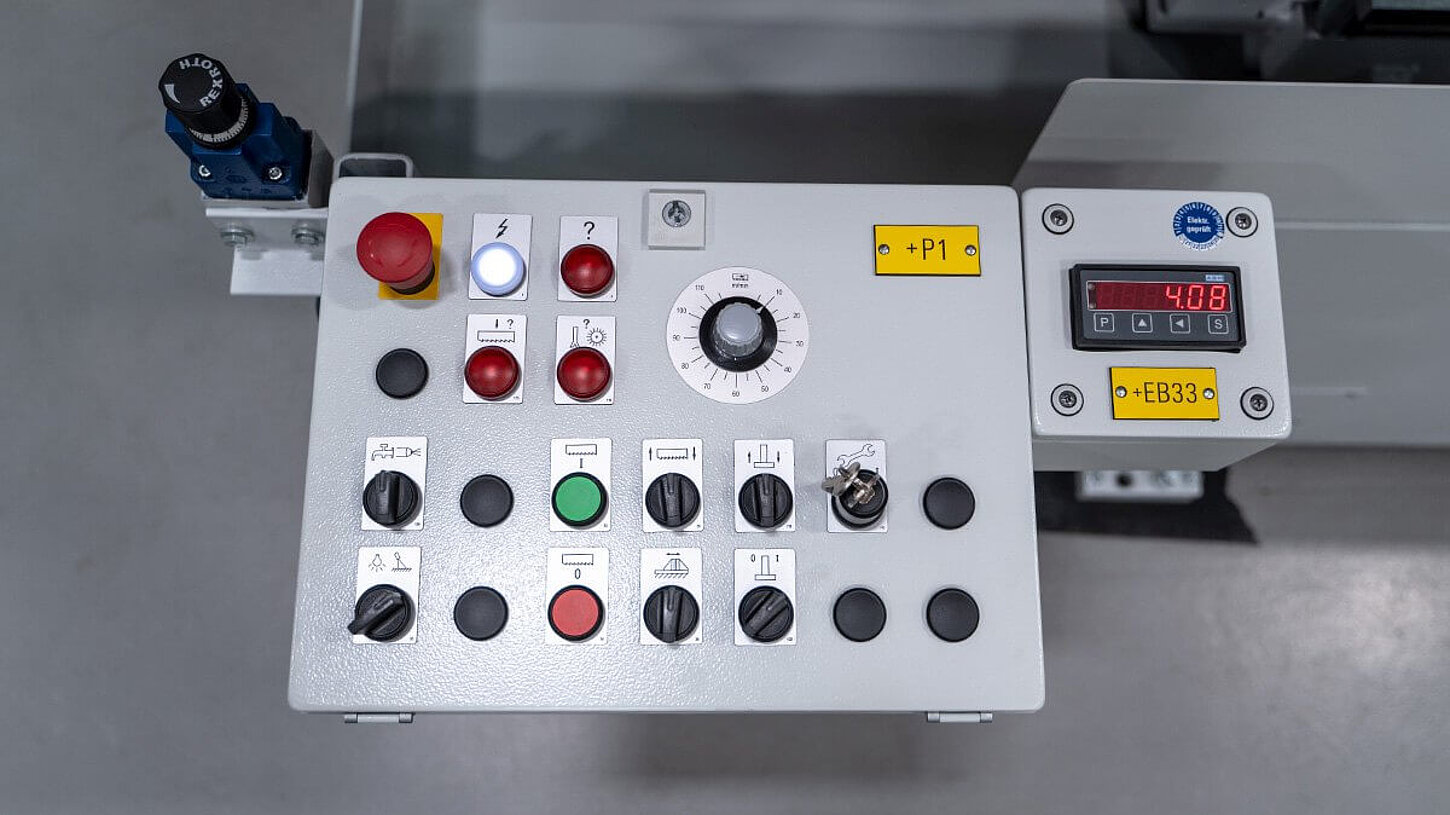

  • Behringer metal cutting bandsaw HBE560 control panel

    Control panel

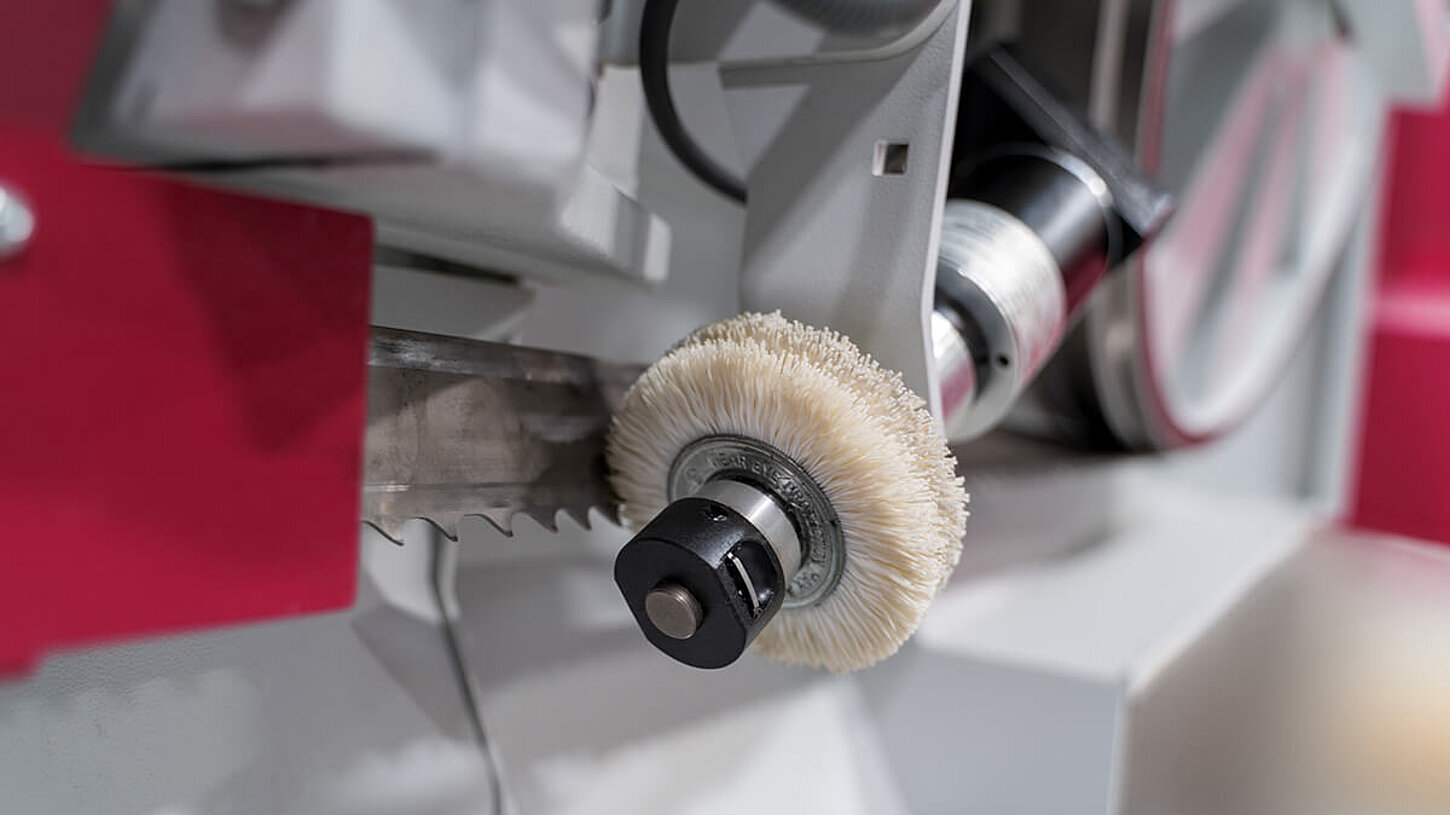

  • Behringer metal cutting bandsaw HBE560 electric chip brush

    Electrically driven chip brush

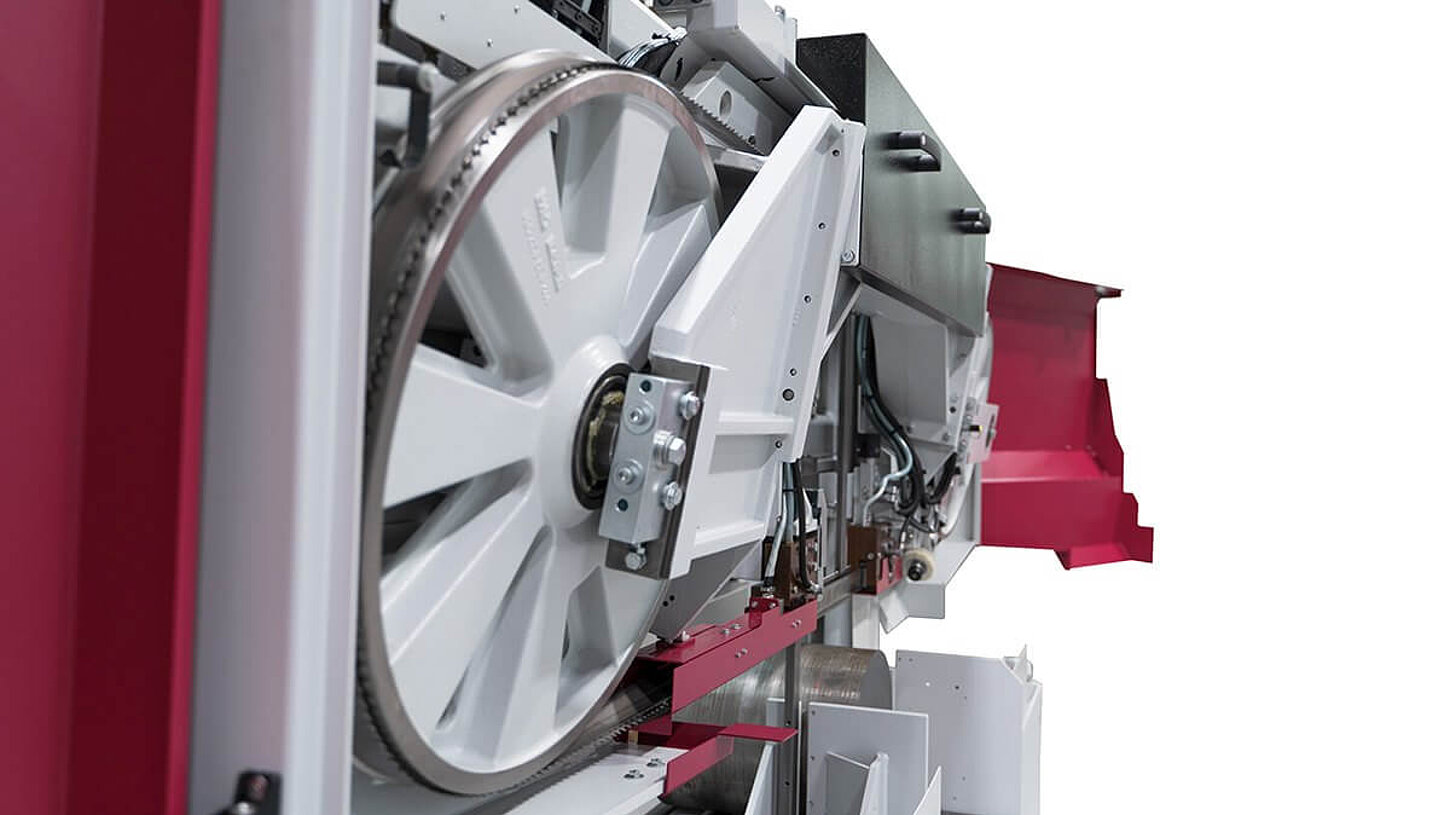

  • Behringer metal cutting bandsaw HBE560 inclined band wheels

    Inclined band wheels

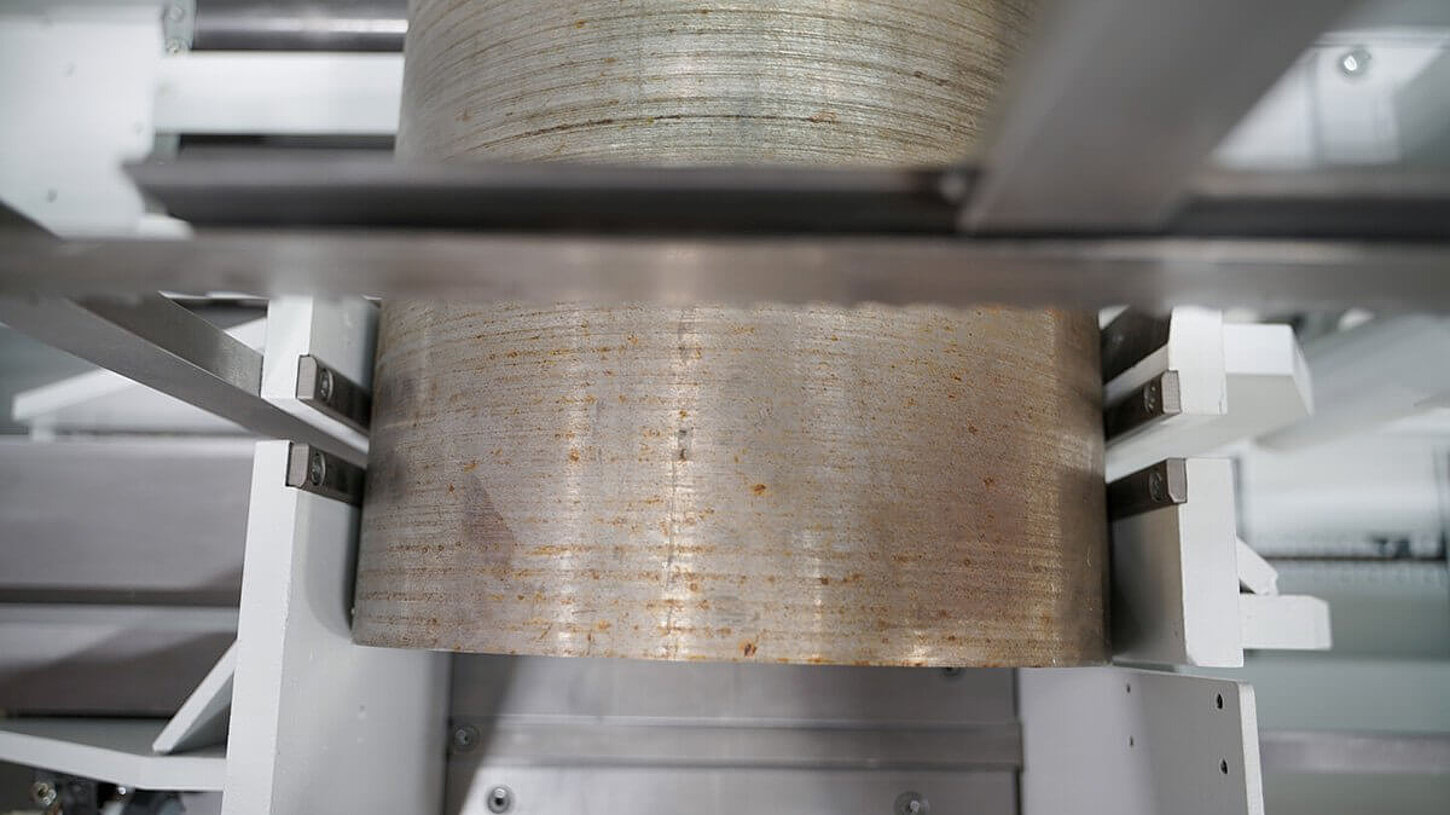

  • Behringer metal cutting bandsaw HBE560 double clamping vice

    Double clamping vice

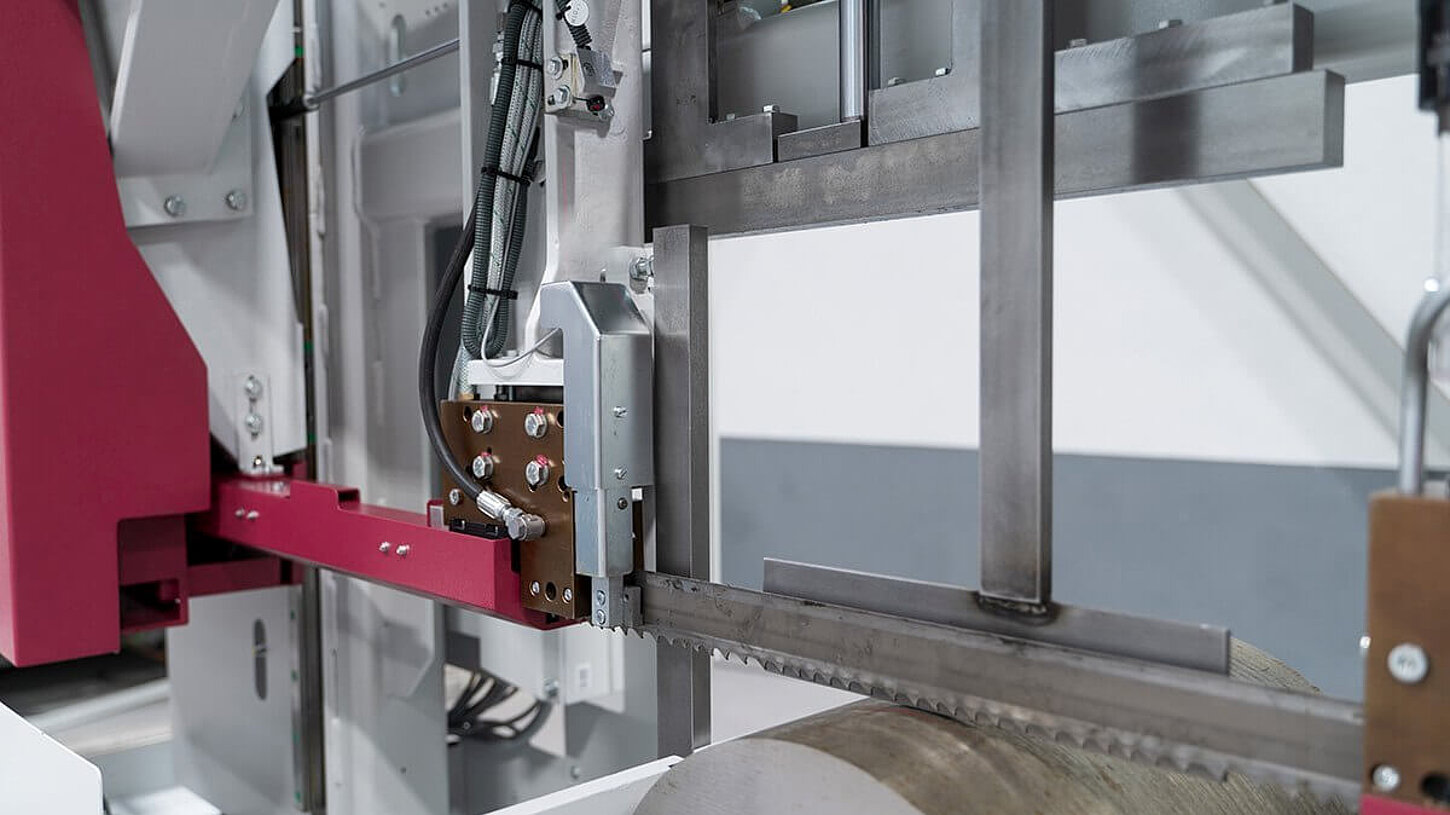

  • Behringer metal cutting bandsaw HBE560 line laser

    Line laser (option)

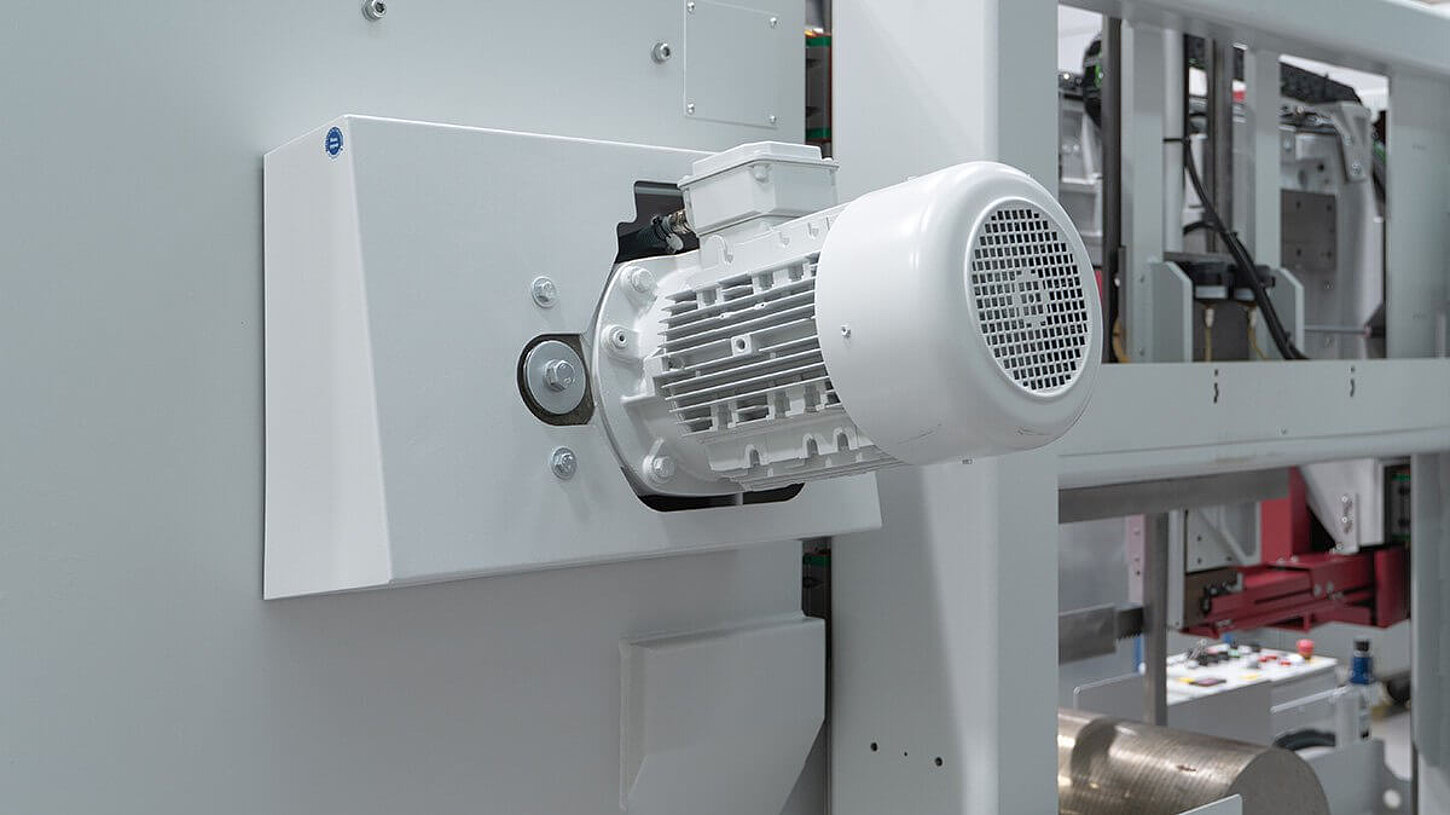

  • Behringer metal cutting bandsaw HBE560 powerful saw drive

    High torque band saw drive

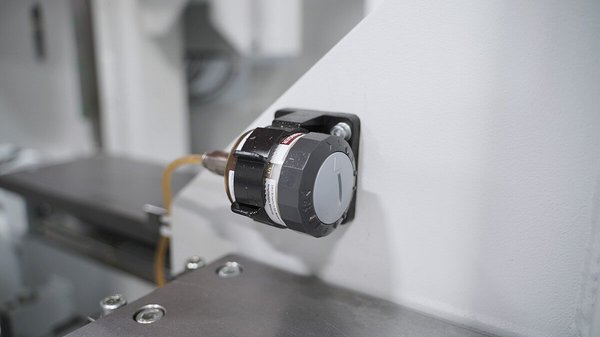

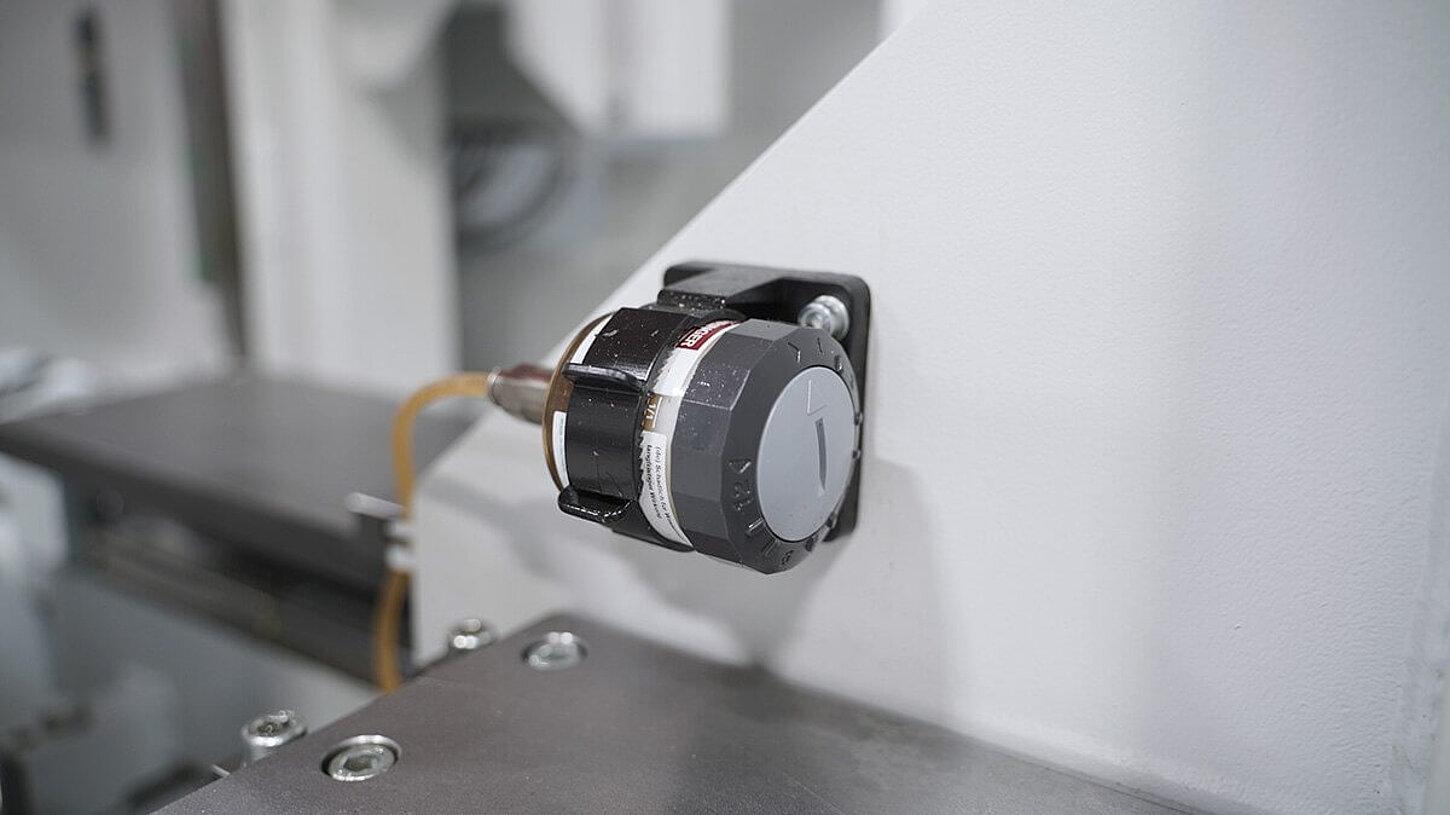

  • Behringer metal cutting bandsaw HBE560 automatic lubrication

    Automatic lubrication (option)

Features of the metal cutting bandsaw HBE560

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

  • Electrically driven chip brush
    with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

  • Servo feed system (option)
    The band saw is fed by a servo drive with ball screw. This results in significantly shorter non-productive times and more precise saw feeds. Your advantage: higher cutting output and longer blade life!

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Energy efficient
    The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

  • Double clamping vice
    is ideal for clamping single cuts. The clamping jaws are arranged on both sides of the saw band. When setting up, the material can simply be aligned with the blade. After sawing through, the horizontal bandsaw securely holds the section and the starting material.

Individual Configuration

The metal cutting bandsaw HBE560 can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data metal cutting bandsaw HBE560

Cutting range 90° round 560 mm (option 610 mm)
Cutting range 90° flat 560 x 560 mm (option 700 x 610 mm)
Smallest dimension to be sawn round 20 mm
Smallest dimension to be sawn flat 20 x 8 mm
Drive power 5.5 kW
Blade speed 10 - 110 m/min
Saw blade dimensions 7,800 x 54 x 1.6 mm
Rest piece length 40 mm
Total power 12 kW
Length 1,600 mm
Width 3,750 mm
Height 2,700 mm
Weight 3,400 kg
Material support height 800 mm
