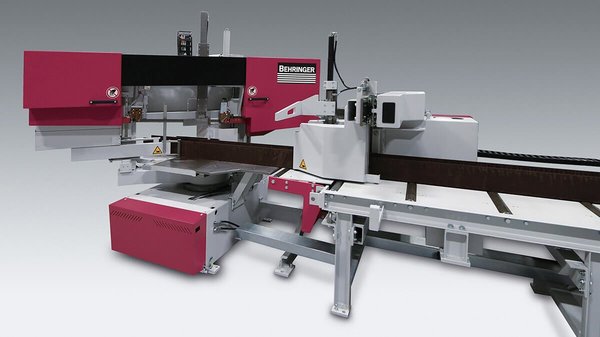

Automatic Mitre Bandsaw HBE320-523GA

for precise mitre cuts in metal construction, sectional steel trade and mechanical engineering

The automatic mitre band saw HBE320-523GA scores with high cutting performance, user-friendliness and precision. It cuts profile steels, tubes and solid materials made of steel or stainless steel at almost any angle. Thanks to the precise feed gripper and fast, NC-controlled cutting angle adjustment, it is fully automatic.

Thanks to the standard saw feed with servo drive and unique Behringer cutting pressure control, it is up to twice as fast when sawing shaped steel as conventional saws at the same price level. With its powerful PC control, the computerized mitre saw is already prepared for the attachment of material handling equipment.

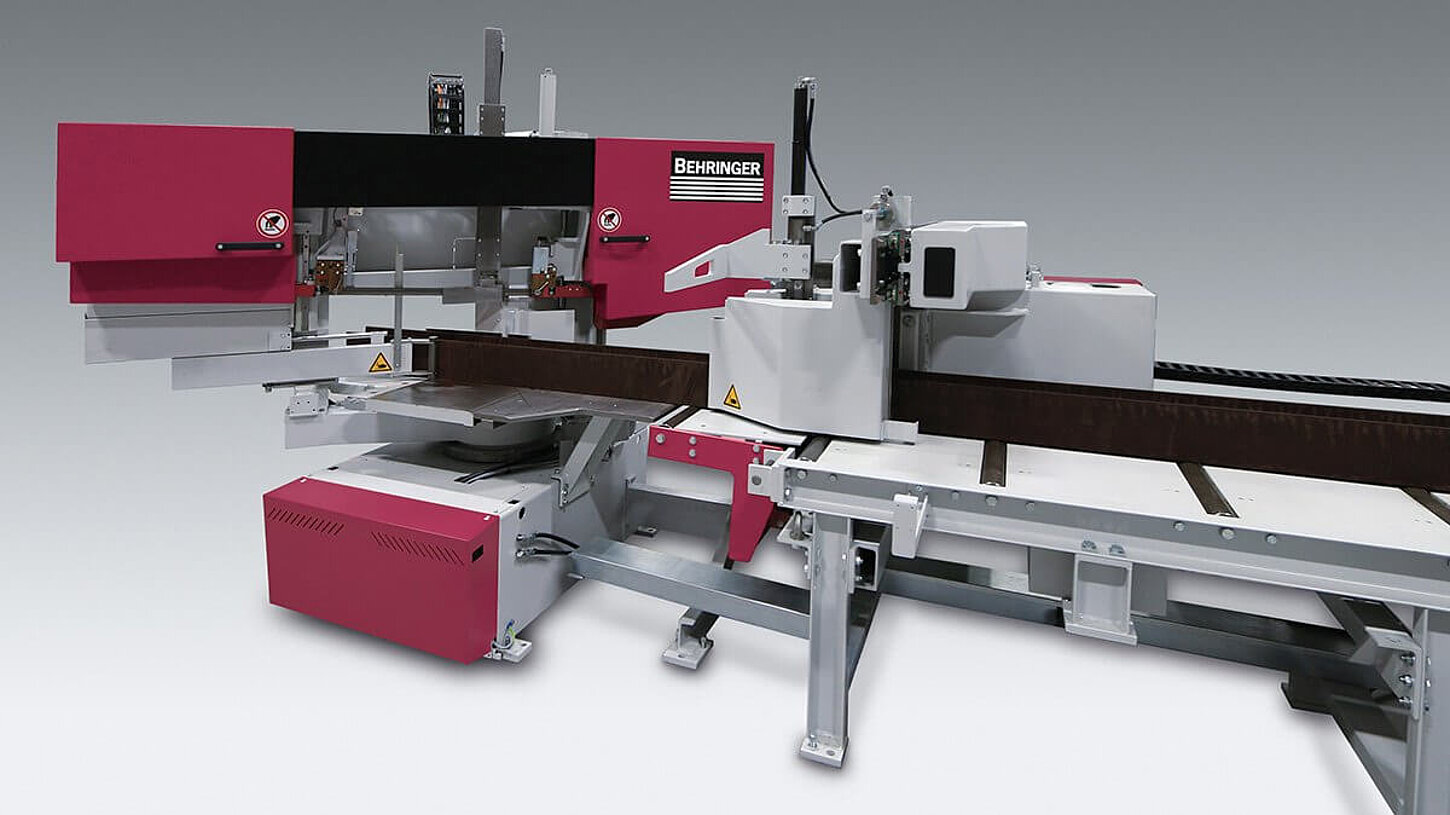

  • Automatic mitre bandsaw Behringer HBE320-523GA

    Automatic mitre bandsaw HBE320-523GA

  • Behringer horizontal bandsaw HBE320-523GA bundle clamping device

    Servo feed system with cutting pressure control

  • Behringer PC Control

    Powerful PC control

  • Youtube Logo

    Demo computerized mitre saw HBE320-523GA

  • Automatic mitre bandsaw HBE320-523GA automatic mitre angle andjustment

    Automatic mitre angle adjustment

  • Mitre bandsaw HBE320-523GA micro spray system

    Micro Spray System

  • Mitre bandsaw HBE320-523GA closed material table

    Enclosed material table

  • Mitre bandsaw HBE320-523GA electrically driven chip brush

    Electrically driven chip brush

  • Automatic mitre bandsaw HBE320-523GA lifting roller on the infeed side

    Lifting roller on the infeed side

  • Mitre bandsaw HBE320-523GA line laser

    Line laser (option)

Features of the automatic mitre bandsaw HBE320-523GA

  • Downfeed control with servo drive
    The saw feed is carried out by means of a ball screw and servo motor. This results in considerably shorter non-productive times and more precise saw feeds.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best cutting results and maximum service life of the mitre saw.

  • Micro Spray System
    When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles. This guarantees a long service life of the saw blade and a clean working environment.

  • 3° inclination of the saw blade
    provides higher cutting performance when sawing hollow profiles and beams and reduces burr formation.

  • Customer-oriented sawing concepts
    Behringer offers complete system solutions with individual material handling where everything fits together perfectly. We are a competent partner and provide comprehensive advice.

  • Closed material table
    The closed table support offers maximum process reliability in fully automatic operation. Jamming of short cuts and gussets is avoided in the best possible way.

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Hydraulic blade tensioning
    The saw band is always optimally tensioned by a hydraulic system. When the machine is at a standstill, the saw band is relieved, thus extending its service life. In the event of a band breakage, the machine stops automatically.

  • Energy-efficient drives
    More output with less energy consumption. Protects the environment and your wallet.

  • Electrically driven chip brush
    with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Individual Configuration

The automatic mitre bandsaw HBE320-523GA can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data automatic mitre bandsaw HBE320-523GA

Cutting range 90° round 320 mm
Cutting range 90° flat 520 x 320 mm

75° Mitre left round / flat 320 mm / 520 x 320 mm
60° Mitre left round / flat 320 mm / 470 x 320 mm
45° Mitre left round / flat 320 mm / 390 x 320 mm
30° Mitre left round / flat 200 mm / 200 x 320 mm

75° Mitre right round / flat 320 mm / 490 x 320 mm
60° Mitre right round / flat 320 mm / 420 x 320 mm
45° Mitre right round / flat 320 mm / 330 x 320 mm

Smallest dimension to be sawn round 20 mm
Smallest dimension to be sawn flat 20 x 20 mm
Feeding length single stroke 3,000 mm
Drive power 2.6 kW
Blade speed 15 - 110 m/min
Saw blade dimensions 5,300 x 34 x 1.1 mm
Rest piece length in automatic operation 150 mm
Total power 8 kW
Saw feed servo-feed via ball screw
Material feed servo motor via gear rack
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 5,500 mm (incl. swivel range: 6,000 mm)
Width 2,900 mm
Height 2,150 mm
Weight 2,560 kg
Material support height 800 mm
