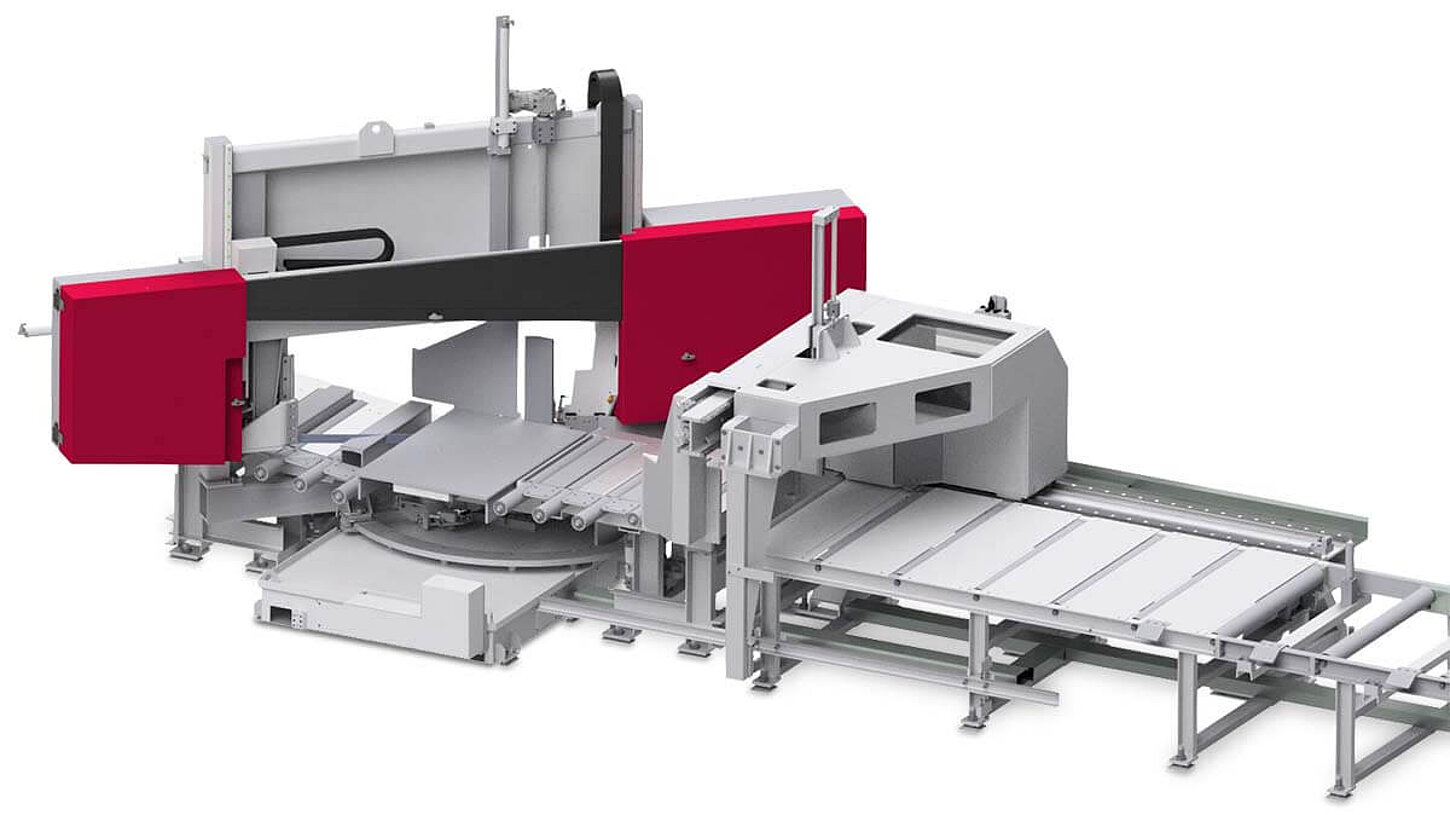

Automatic Mitre Bandsaw HBE610-1256GA
for precise mitre cuts in steel construction and sectional steel trade
The high-performance automatic mitre band saw HBE610-1256GA is designed for automatic sawing of structural steel, profiles and pipes. Features such as electronic mitre angle adjustment, saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment and a robust double clamping vice are provided as standard. Its stable saw frame, inclined band wheels and the use of vibration-damping cast components extend the service life of the saw bands tremendously.

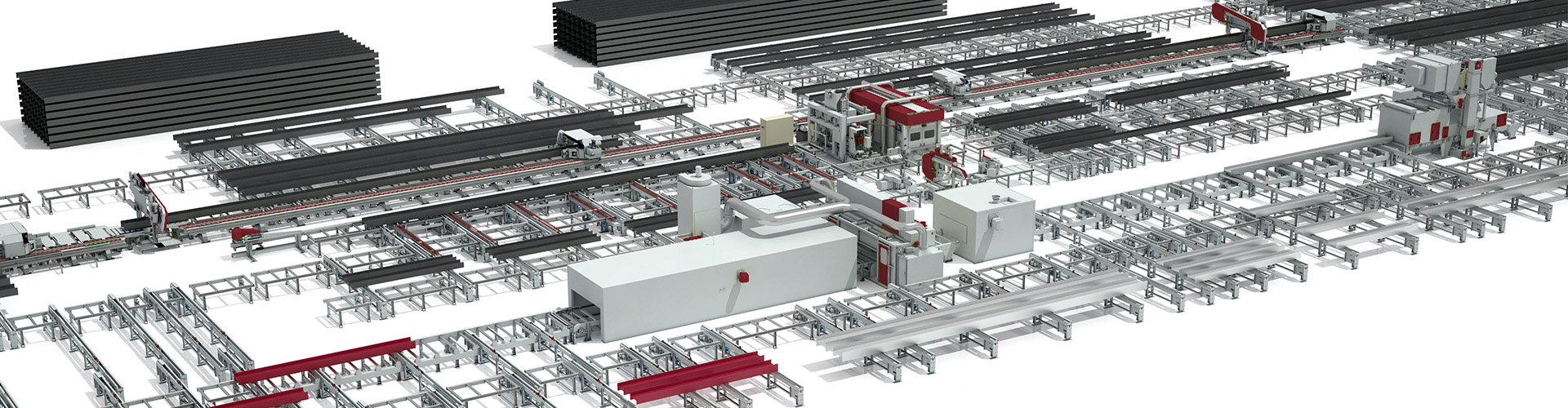

When processing large profiles, however, material handling is in addition to the cutting performance also a key factor in determining the system throughput. The HBE610-1256GA computerized mitre saw is therefore consequently designed for low-operator use in automated sawing lines. Automatic material loading and discharge systems, pre- and post-buffer lines and an intelligent control system with nesting functionality cover all requirements.
Automatic Mitre Bandsaw HBE610-1256GA
Servo feed system with BEHRINGER cutting pressure control

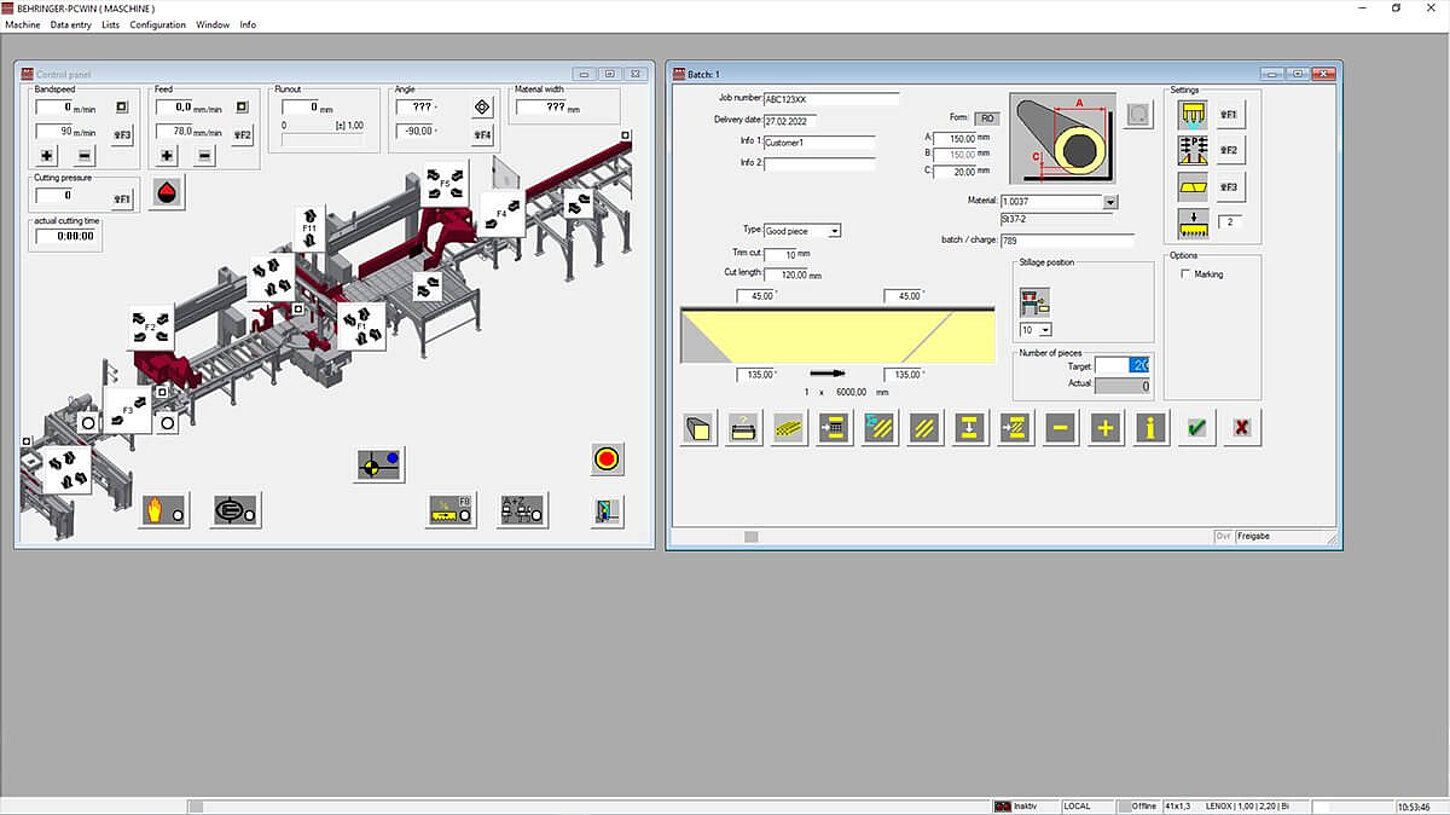

Powerful PC control
Video Automatic Mitre Bandsaw HBE610-1256GA

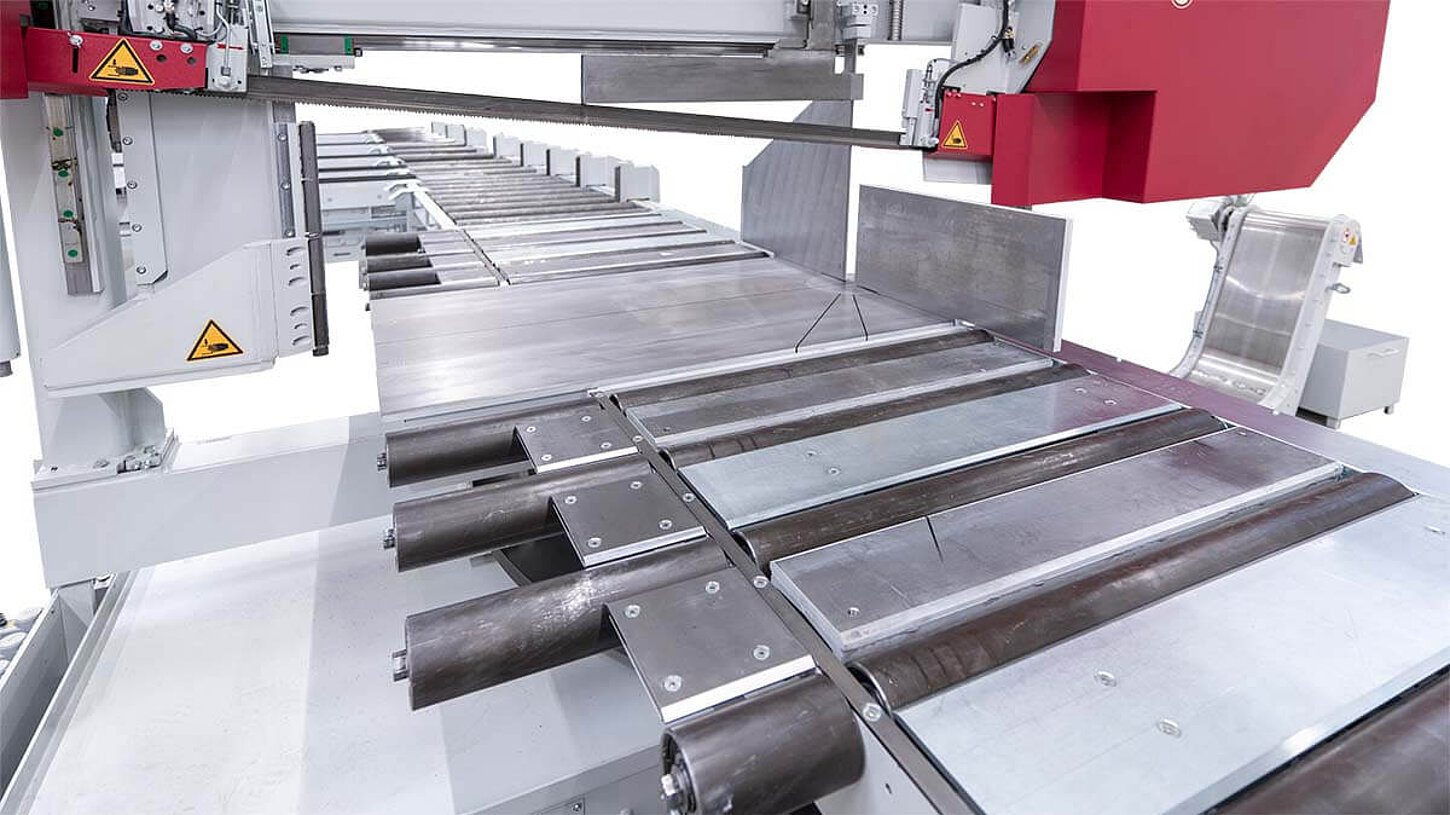

Enclosed material table
Cast iron band guiding parts

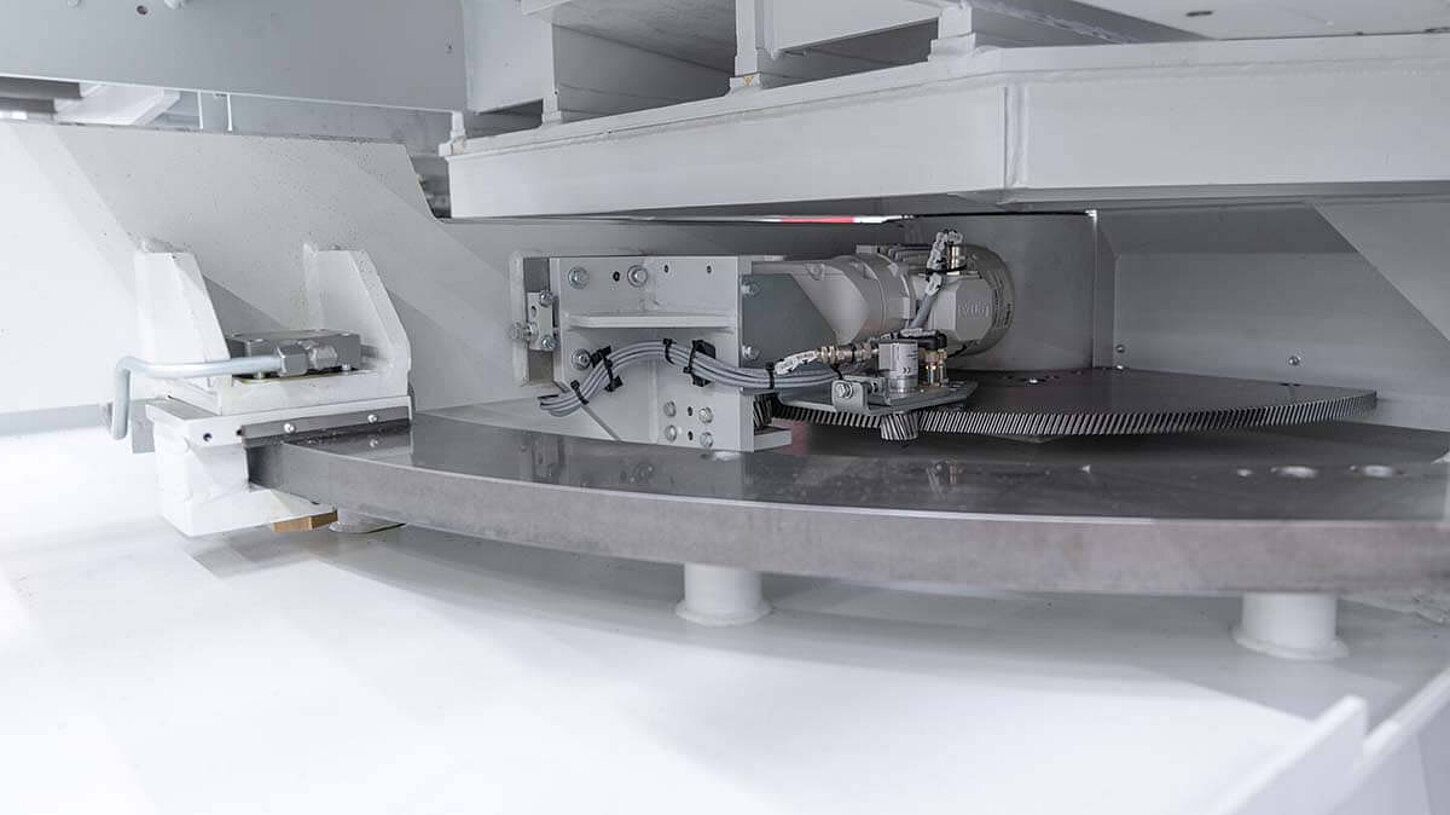

Fast NC mitre angle adjustment
Electrically driven chip brush

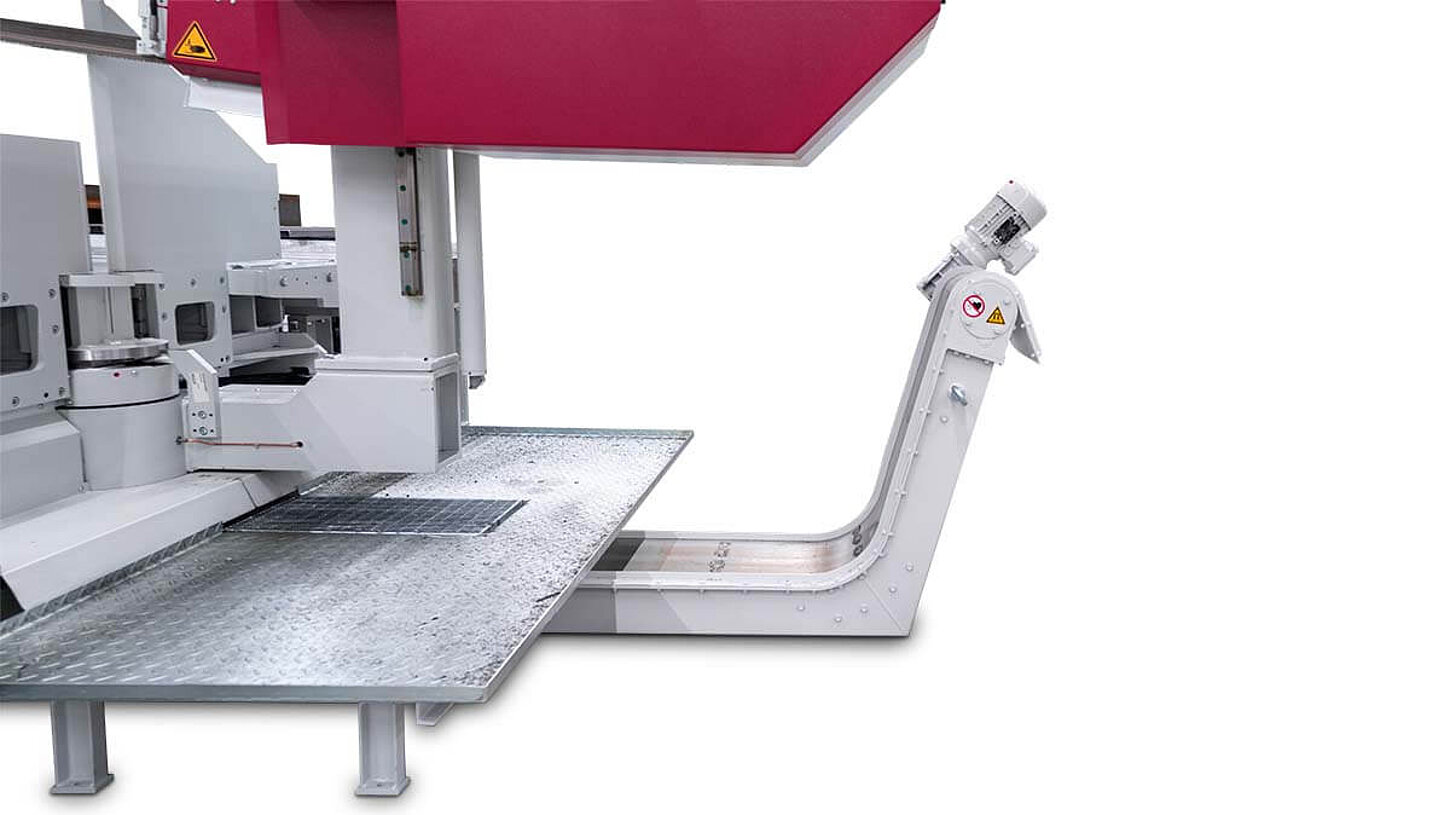

Magnetic chip conveyor (option)

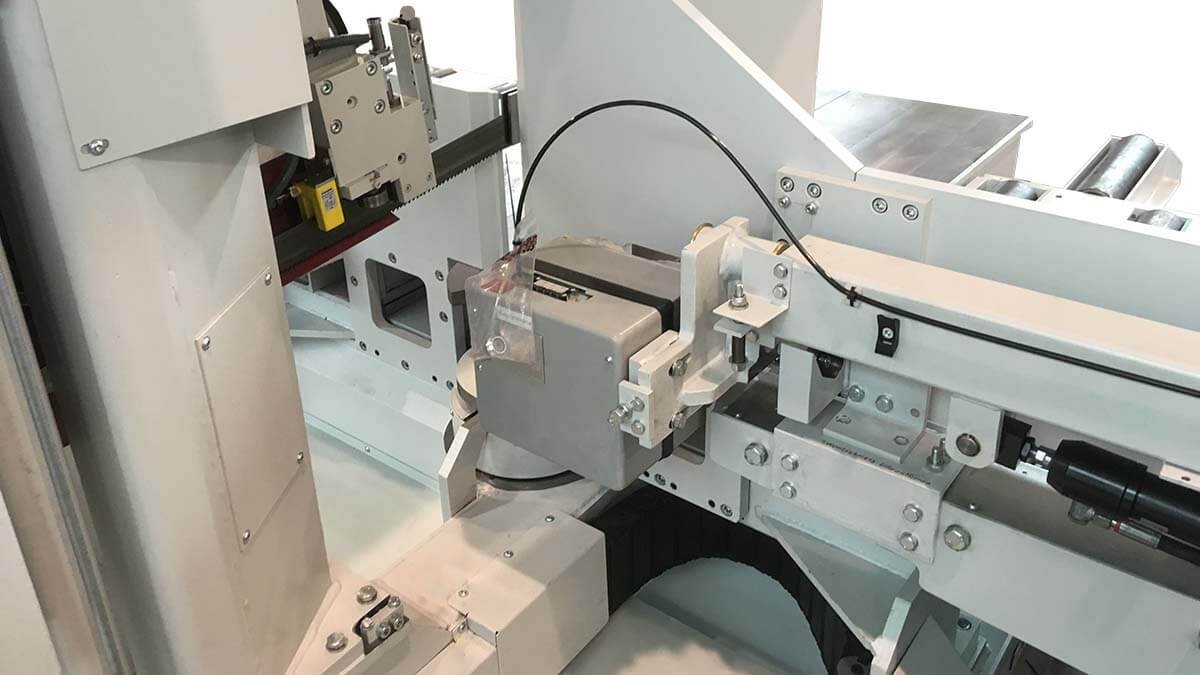

Integrated needle marking system (Option)
- Sensitive Behringer cutting pressure control
increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.
- Micro Spray System
When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles. This guarantees a long service life of the saw blade and a clean working environment.
The automatic mitre bandsaw HBE610-1256GA can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.
|Cutting capacity 90° round||610 mm|
|Cutting capacity 90° flat||1.250 x 610 mm|
|75° Miter left round / flat||610 mm / 1.200 x 610 mm|
|60° Miter left round / flat||610 mm / 1.100 x 610 mm|
|45° Miter left round / flat||610 mm / 880 x 610 mm|
|30° Miter left round / flat||610 mm / 610 x 610 mm|
|75° Miter right round / flat||610 mm / 1.200 x 610 mm|
|60° Miter right round / flat||610 mm / 1.100 x 610 mm|
|45° Miter right round / flat||610 mm / 880 x 610 mm|
|Smallest dimension to be sawn round||30 mm|
|Smallest dimension to be sawn flat||30 x 30 mm|
|Feeding length single stroke||3.000 mm|
|Drive power||7,5 kW|
|Blade speed||17 - 120 m/min|
|Saw blade dimensions||10.000 x 54 x 1,6 mm|
|Rest piece length in automatic operation||280 mm|
|Minimum cut length||25 mm|
|Total power||16 kW|
|Saw feed||servo-feed via ball screw|
|Material feed||servo motor via gear rack|
|Saw blade cleaning||electrically driven chip brush|
