Automatic Bandsaw SLB240A

Simple operation and precise serial cuts for professional use

The SLB240A from Behringer is a fully automatic bandsaw designed for easy operation and maximum reliability. It is ideally suited for single and serial cuts of pipes, profiles and solid materials made of metal and comparable plastics. At the same time, it impresses with its precision and smooth running.

In addition to its extensive basic equipment, the automatic bandsaw offers an attractive price/performance ratio. The small footprint makes it the ideal sawing machine in metalworking stores.

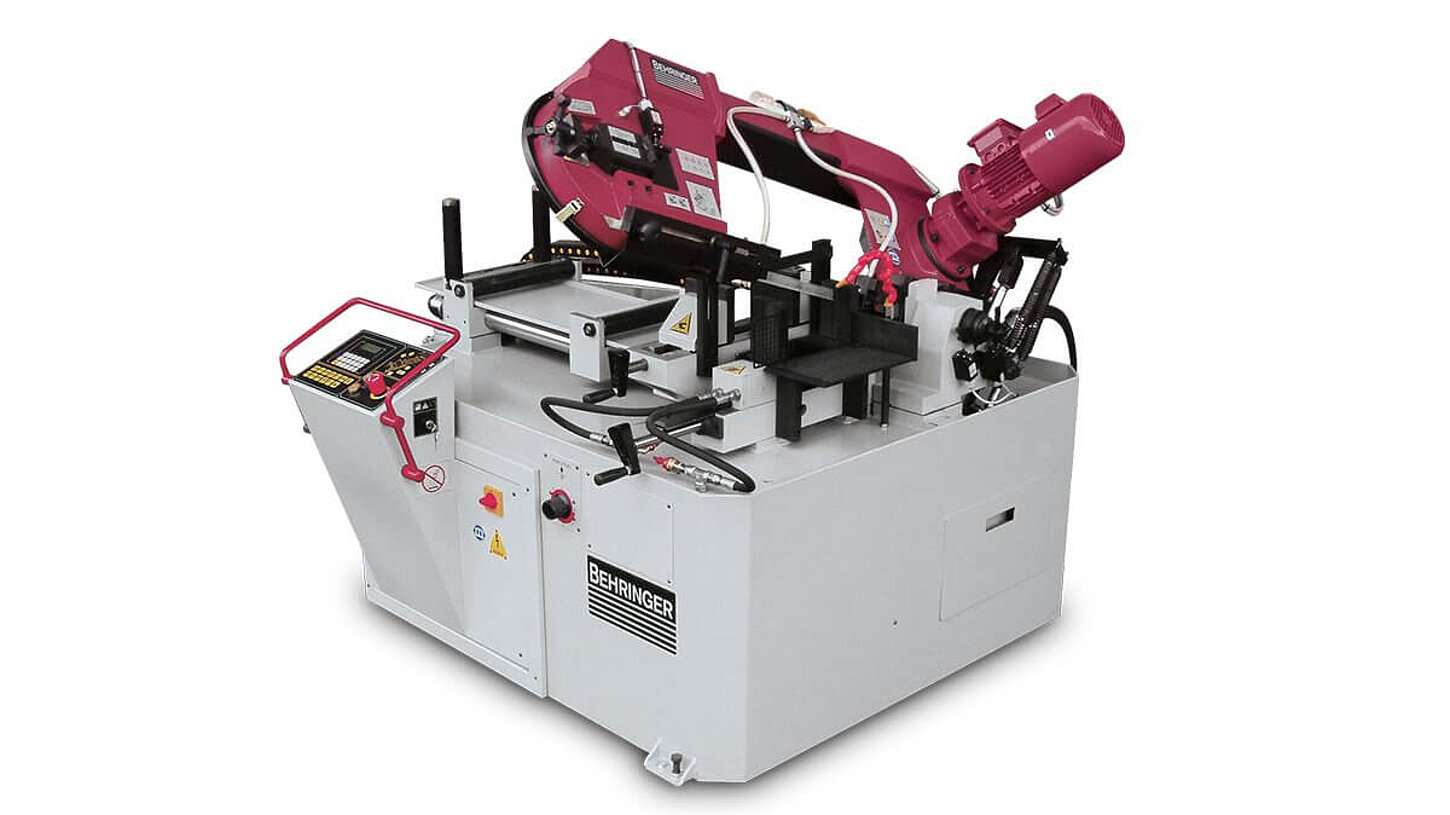

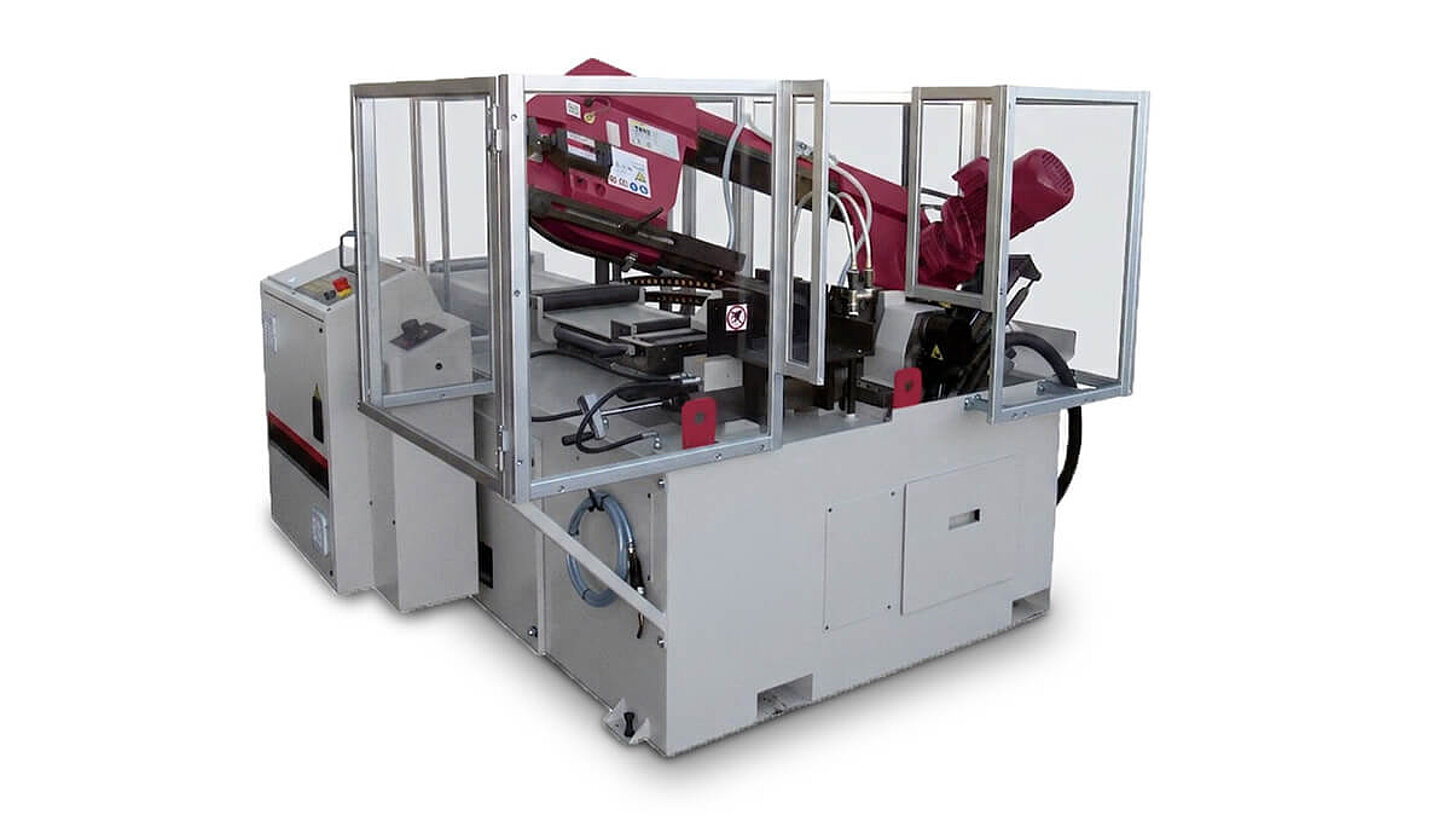

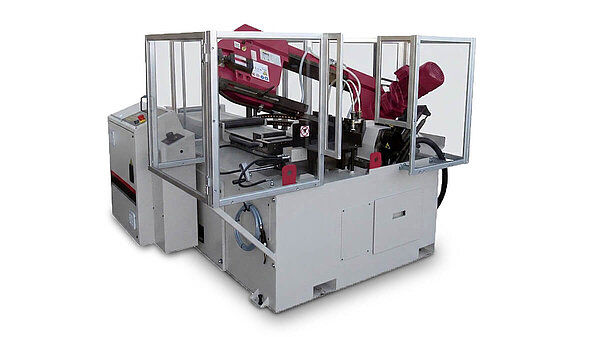

Automatic bandsaw SLB240A
Saw Band Tensioning
Hydraulic Saw Feed
Control Panel
Automatic Material Feed
Micro Spray System (option)

Features of the automatic bandsaw SLB240A

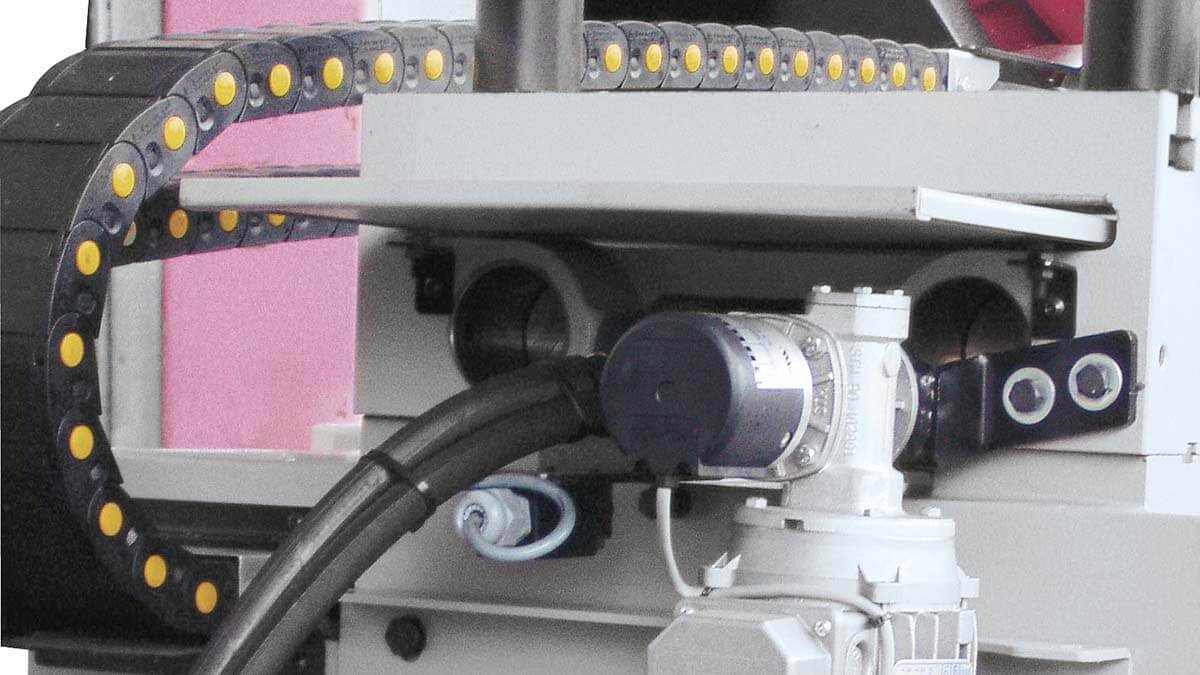

Automatic Material Feeding
A hydraulically operated feeding gripper positions the material for series cuts. The cutting length is set using a stop that is positioned by an electrically driven spindle. Feed length and number of cuts can be programmed in the control. The automatic cycle is ended after the target number of cuts has been reached or when the material has ended.

Robust Material Vice with Quick-Clamping Device
The material is clamped by a robust vice with a hydraulic quick-clamping device. The vice is adjusted to the material width using a handwheel. In semi-automatic operation, the material is then clamped using a short-stroke hydraulic cylinder.

Precise Band Guides
Combination of roller and carbide guide of the saw band. Adjustment of the movable band guide according to the cutting width.

Coolant System
The machine is equipped with 2 regulated coolant nozzles. The coolant tank can be removed for easy cleaning.

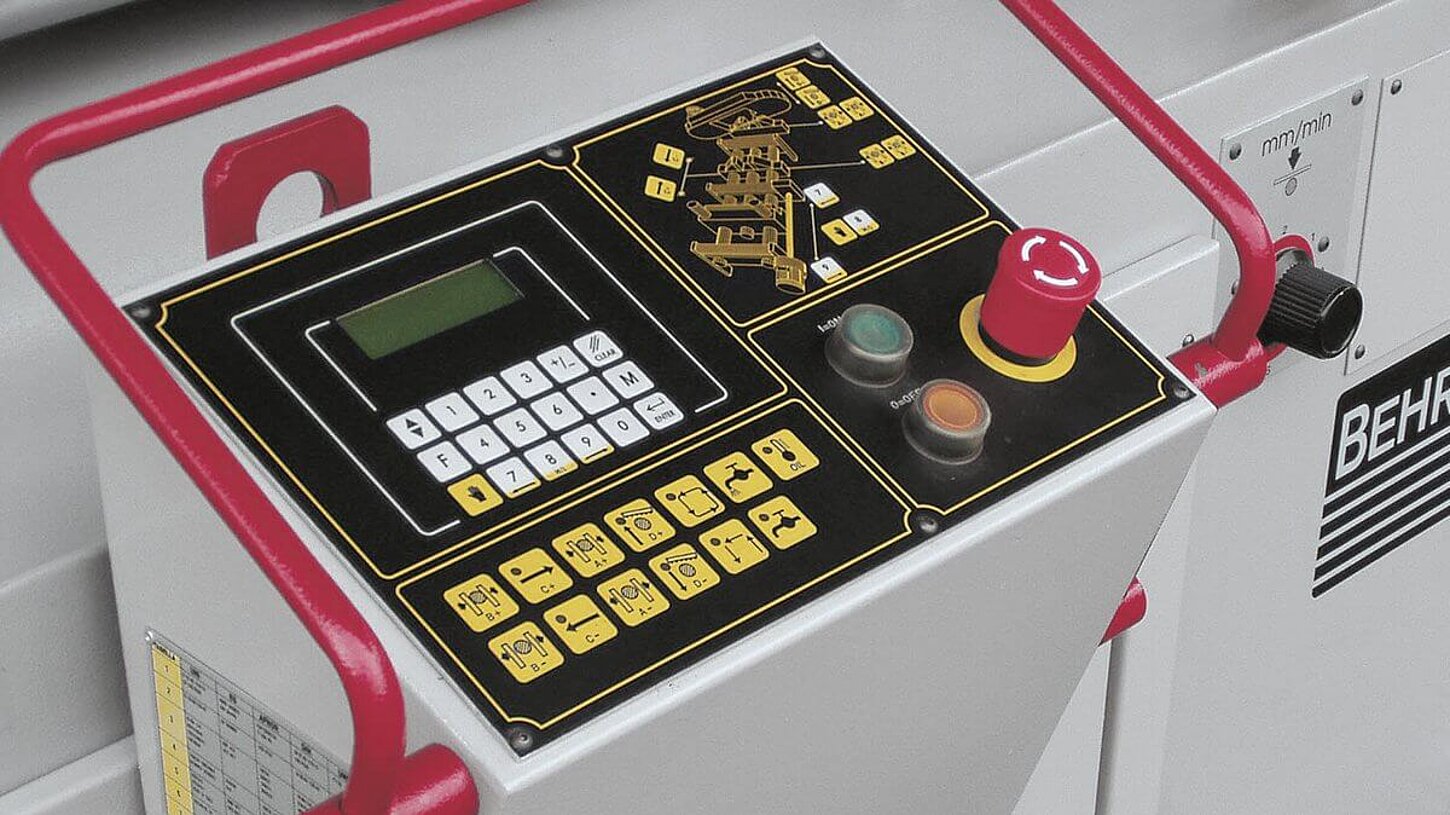

NC Program Control
Modern programmable logic controller with clear masks on the LCD display for simple and safe manual and automatic operation. It is possible to enter a maximum of 10 jobs with pre-selection of the cut length, number of pieces and the trim-cut length.

Frequency-Controlled Saw Drive
offers maximum flexibility when sawing different material grades such as stainless steel or aluminum. The cutting speed can be adjusted infinitely variable.

Hydraulic Saw Feed
The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

Saw Band Tensioning
The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically. In order to prevent overloading during the sawing process, the pressure is equalized by means of a pretensioned disc spring package. In the event of a band break, the sawing machine switches off automatically.

Individual Configuration

The bandsaw SLB240A can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data automatic bandsaw SLB240A

Cutting range 90° round	260 mm
Cutting range 90° flat	270 x 260 mm
Smallest dimension to be sawn round	10 mm
Smallest dimension to be sawn flat	10 x 10 mm

Feeding length single stroke	510 mm
Drive power	1.5 kW
Blade speed	16 - 120 m/min
Saw blade dimensions	3,300 x 27 x 0.9 mm
Rest piece length in automatic mode	80 mm
Shortes cutting length	10 mm
Saw feed	hydraulic
Material feed	hydraulic

Length	1,700 mm
Width	1,800 mm
Height	1,700 mm
Weight	950 kg
Material support height	850 mm
