Mitre Saw SLB240G-HA

Simple operation and precise cuts

The mitre bandsaw of the SLB series from Behringer is a reliable partner for daily sawing tasks in the workshop and factory. The SLB240G-HA is suitable for cutting tubes, profiles and solid material made of metal and comparable plastics.

In addition to the attractive price, cutting precision, performance and reliability play the main role. Due to the simple operation and the small space requirement, the mitre saw is ideally suited for use in locksmiths, maintenance companies, blacksmiths and training workshops.

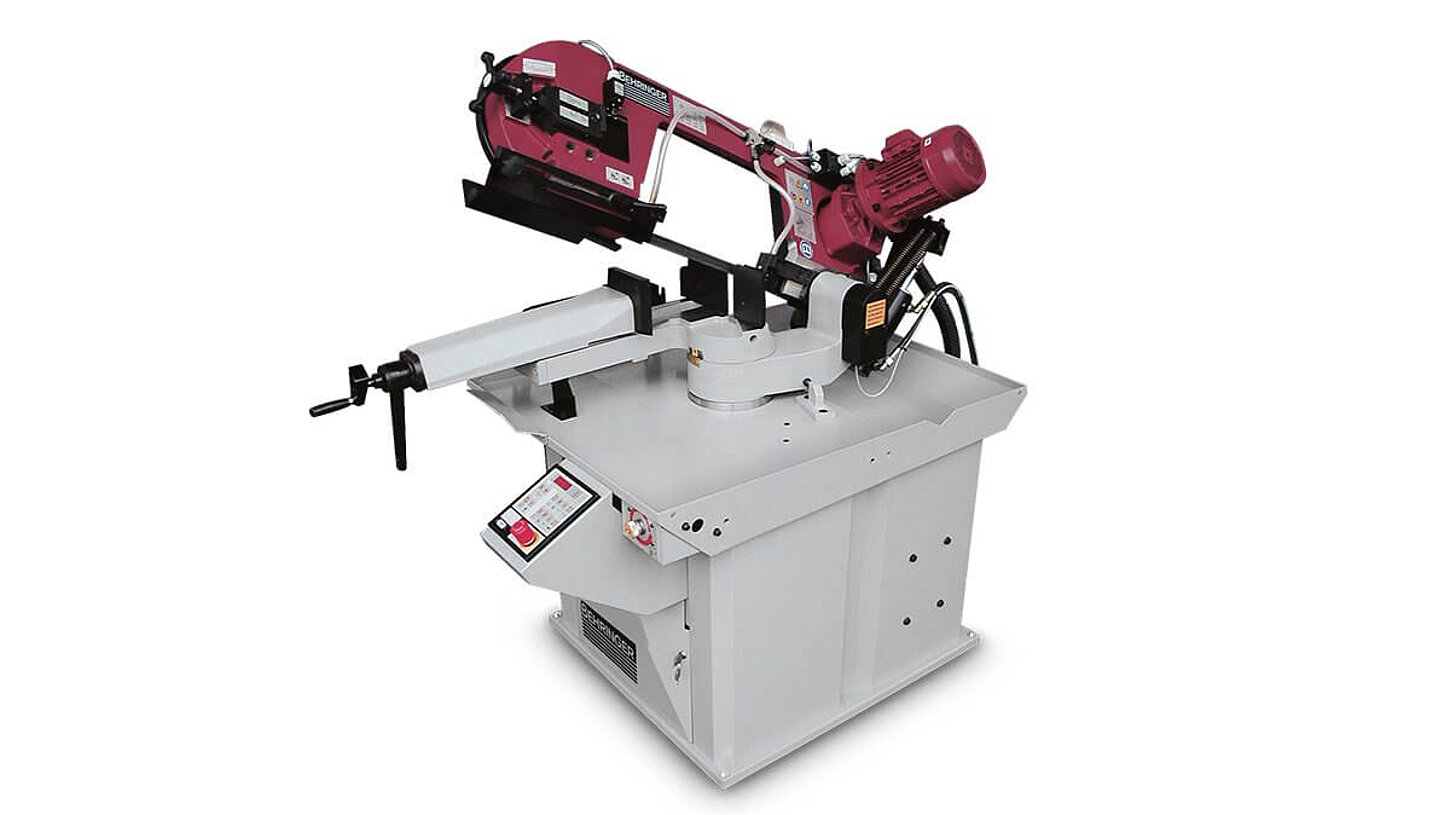

  • Behringer mitre saw SLB230G

    Mitre saw SLB240G-HA (similar to illustration)

  • Behringer automatic bandsaw SLB240A band tension with automatic switch-off in case of band breakage

    Saw Band Tensioning

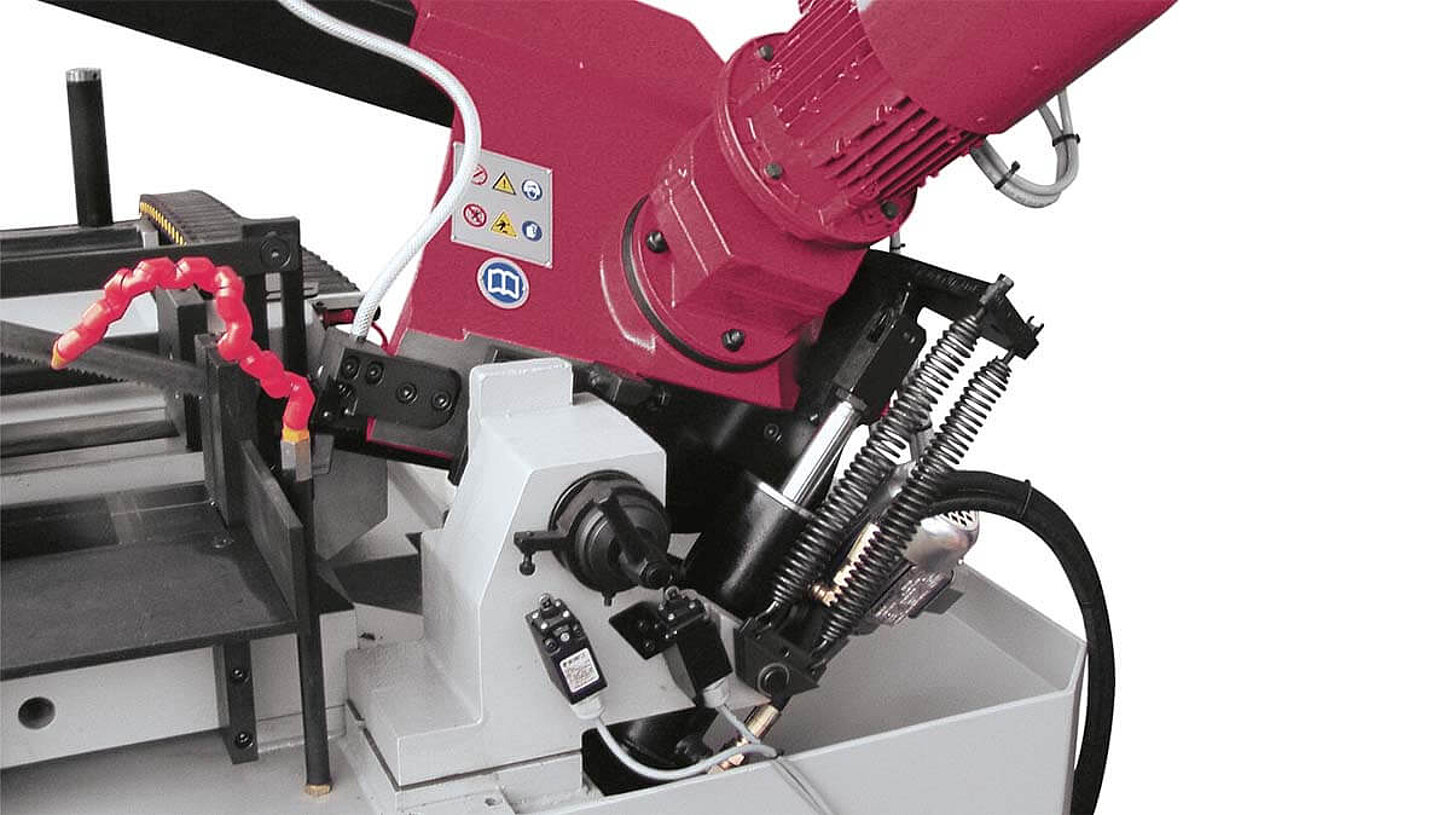

  • Behringer automatic bandsaw SLB240A hydraulic saw feed

    Hydraulic Saw Feed

  • Behringer mitre saw SLB230DG-HA control panel

    Control Panel

  • Behringer bandsaw with micro-spray system

    Micro Spray System (option)

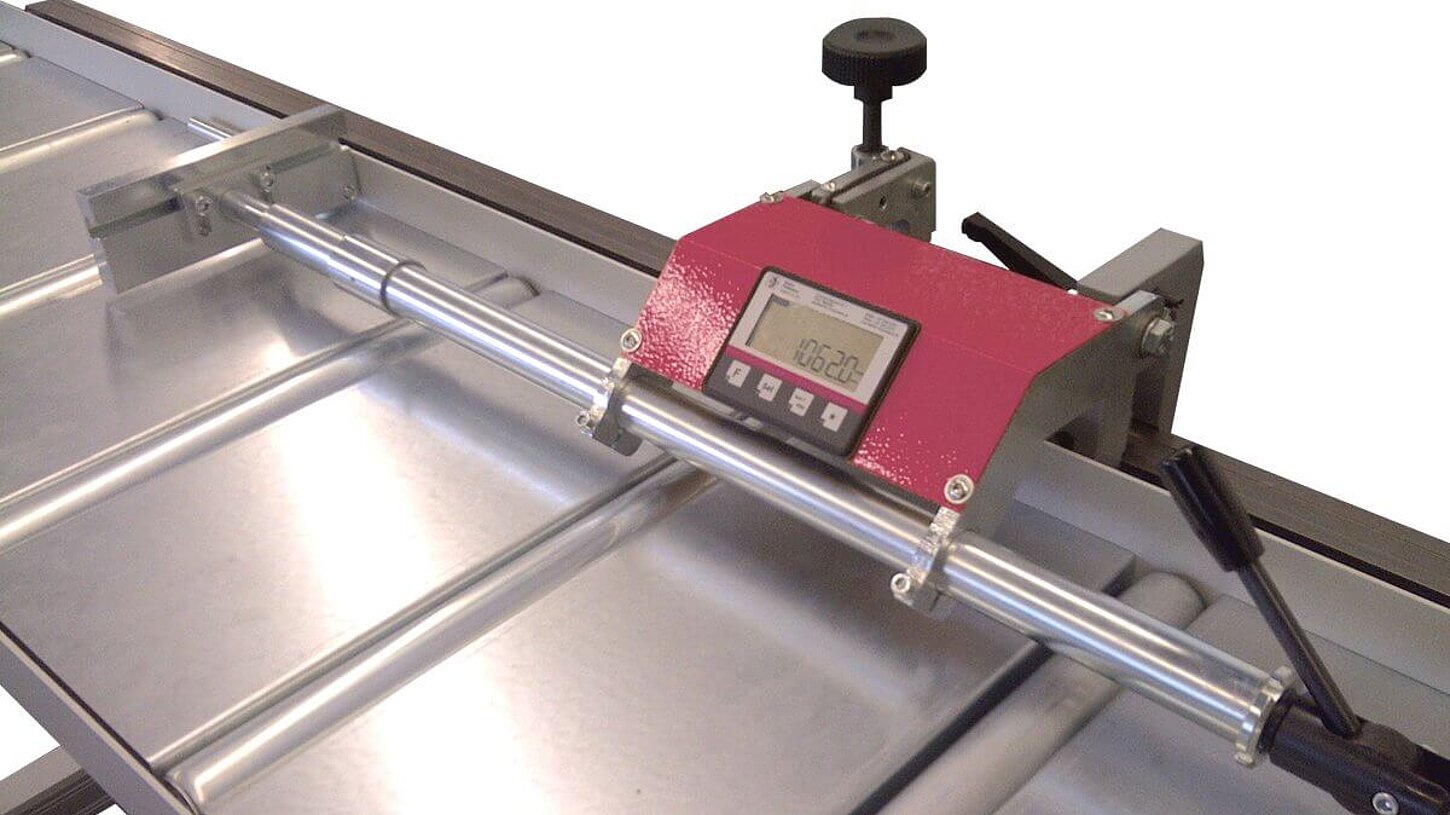

  • Behringer measuring stop with digital display

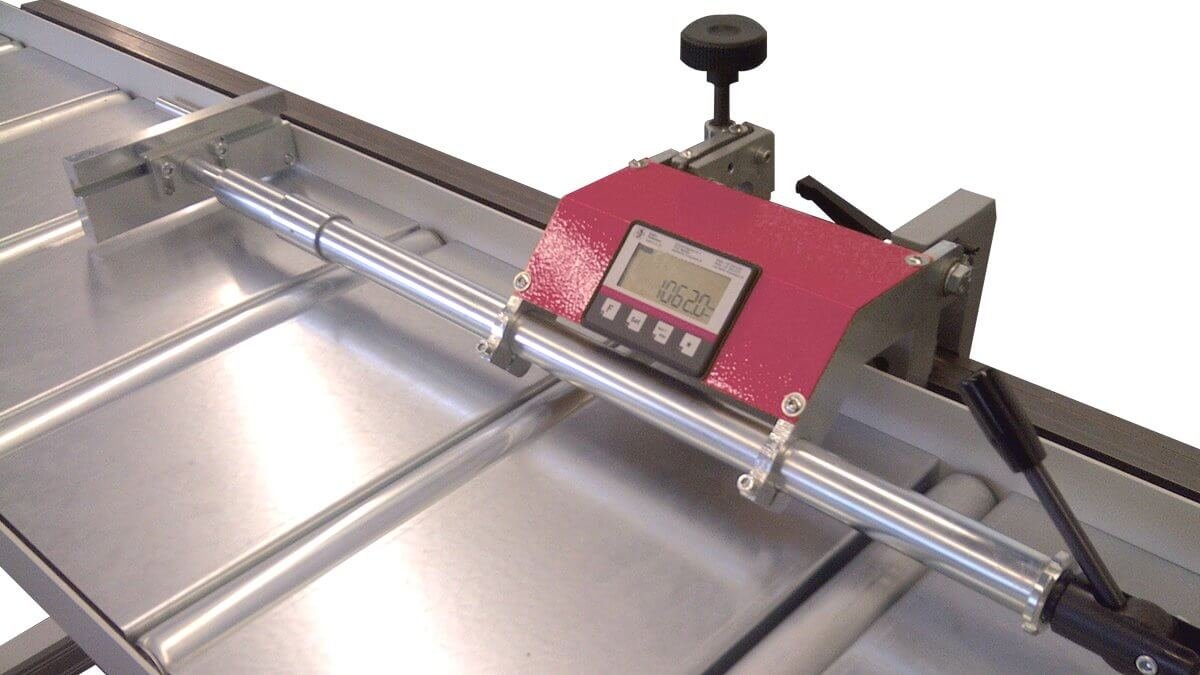

    Measuring Unit with Digital Display (option)

Features of the mitre saw SLB240G-HA

  • Miter Adjustment
    The miter angle can be adjusted to one side. The saw frame is locked by means of a quick-release clamp. The pivot point is in the area of intersection between the saw band and the datum vice - this does not change the reference line.

  • Frequency-Controlled Saw Drive
    offers maximum flexibility when sawing different material grades such as stainless steel or aluminum. The cutting speed can be adjusted infinitely variable.

  • Robust Material Vice with Quick-Clamping Device
    The material is clamped by a robust vice with a hydraulic quick-clamping device. The vice is adjusted to the material width using a handwheel. In semi-automatic operation, the material is then clamped using a short-stroke hydraulic cylinder.

  • Precise Band Guides
    Combination of roller and carbide guide of the saw band. Adjustment of the movable band guide according to the cutting width.

  • Standard Measuring Stop
    with millimeter scale up to 600 mm

  • Semi-Automatic Sawing Cycle
    After inserting the material, all it takes is a push of a button and the machine performs an automatic sawing cycle: clamp the material, saw, unclamp, lift the saw frame.

  • Hydraulic Saw Feed
    The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

  • Coolant System
    The machine is equipped with 2 regulated coolant nozzles. The coolant tank can be removed for easy cleaning.

  • Saw Band Tensioning
    The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically. In order to prevent overloading during the sawing process, the pressure is equalized by means of a pretensioned disc spring package. In the event of a band break, the sawing machine switches off automatically.

  • Material Handling from a Single Source
    The swing frame bandsaw machines of the SLB series can be perfectly tailored to your application with roller conveyors and measuring devices.

Individual Configuration

The bandsaw SLB240G-HA can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data mitre saw SLB240G-HA

Cutting range 90° round 260 mm
Cutting range 90° flat 370 x 260 mm

45° Miter right round 260 mm
45° Miter right square 260 x 260 mm
45° Miter right flat 290 x 120 mm

30° Miter right round 180 mm
30° Miter right square 180 x 180 mm
30° Miter right flat 190 x 90 mm

Smallest dimension to be sawn round 10 mm
Smallest dimension to be sawn flat 10 x 6 mm
Drive power 1.5 kW
Blade speed 16 - 120 m/min
Saw blade dimensions 3,300 x 27 x 0.9 mm
Length 1,600 mm
Width 760 mm
Height 1,900 mm
Weight 515 kg
Material support height 960 mm
