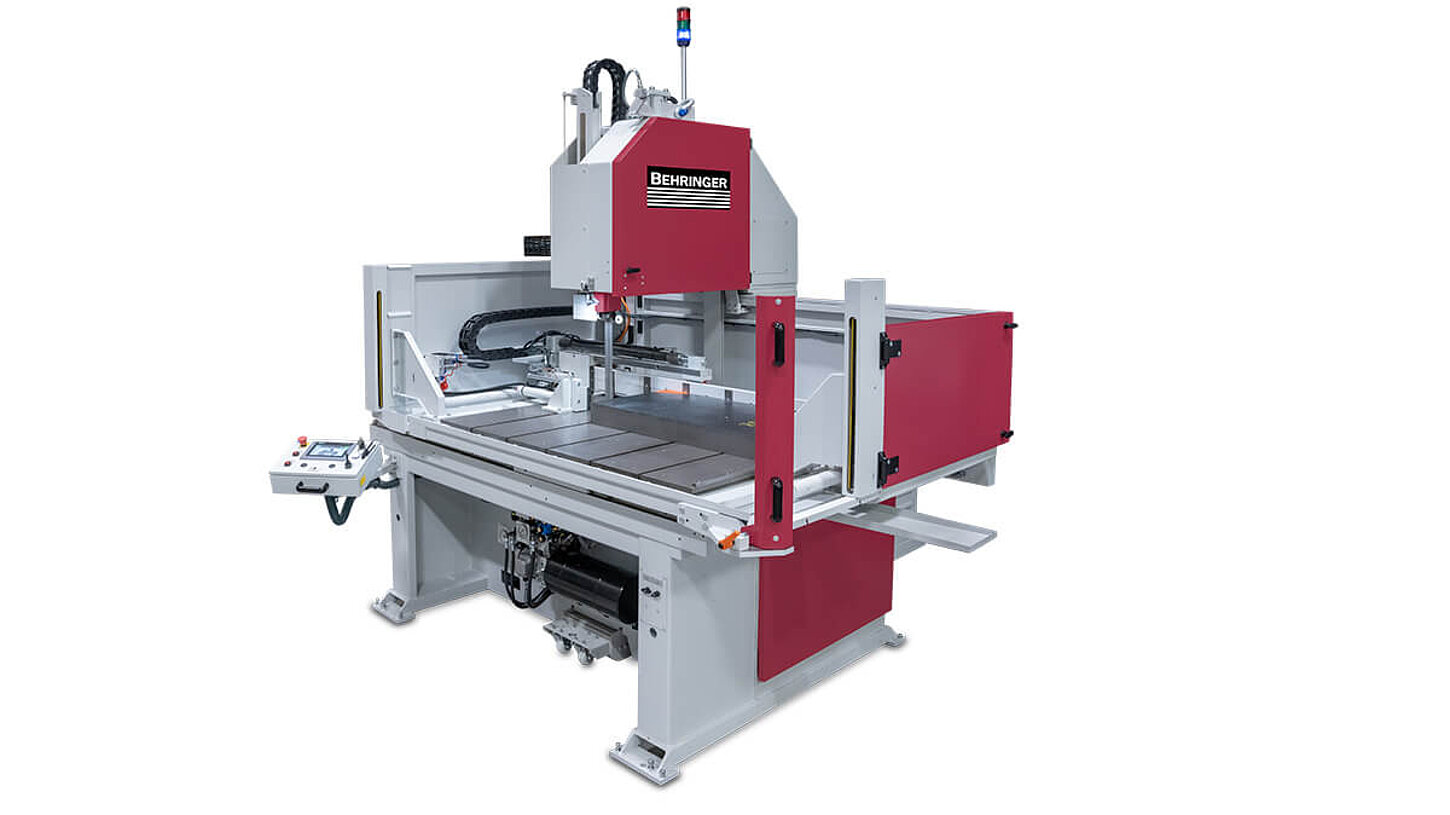

Automatic table band saw LPS-TA

The automatic plate saw - ideal for steel trade and industry

The automatic table band saw LPS-TA is the ideal solution from Behringer when it comes to fully automatic cutting of small plates and blocks. By producing flat and rectangular material from sheets, advantages can be achieved in material purchasing and significantly reduced storage costs.

With its movable support table and automatic positioning device, it can be easily loaded and unloaded by crane. After clamping the material in the gripper and entering the plate dimensions, the table bandsaw sets itself up automatically. Even with difficult to cut materials, the automatic plate saw LPS-TA ensures precision and speedy work.

Automatic table band saw LPS-TA
Video automatic plate saw LPS-TA
Automatic material positioning

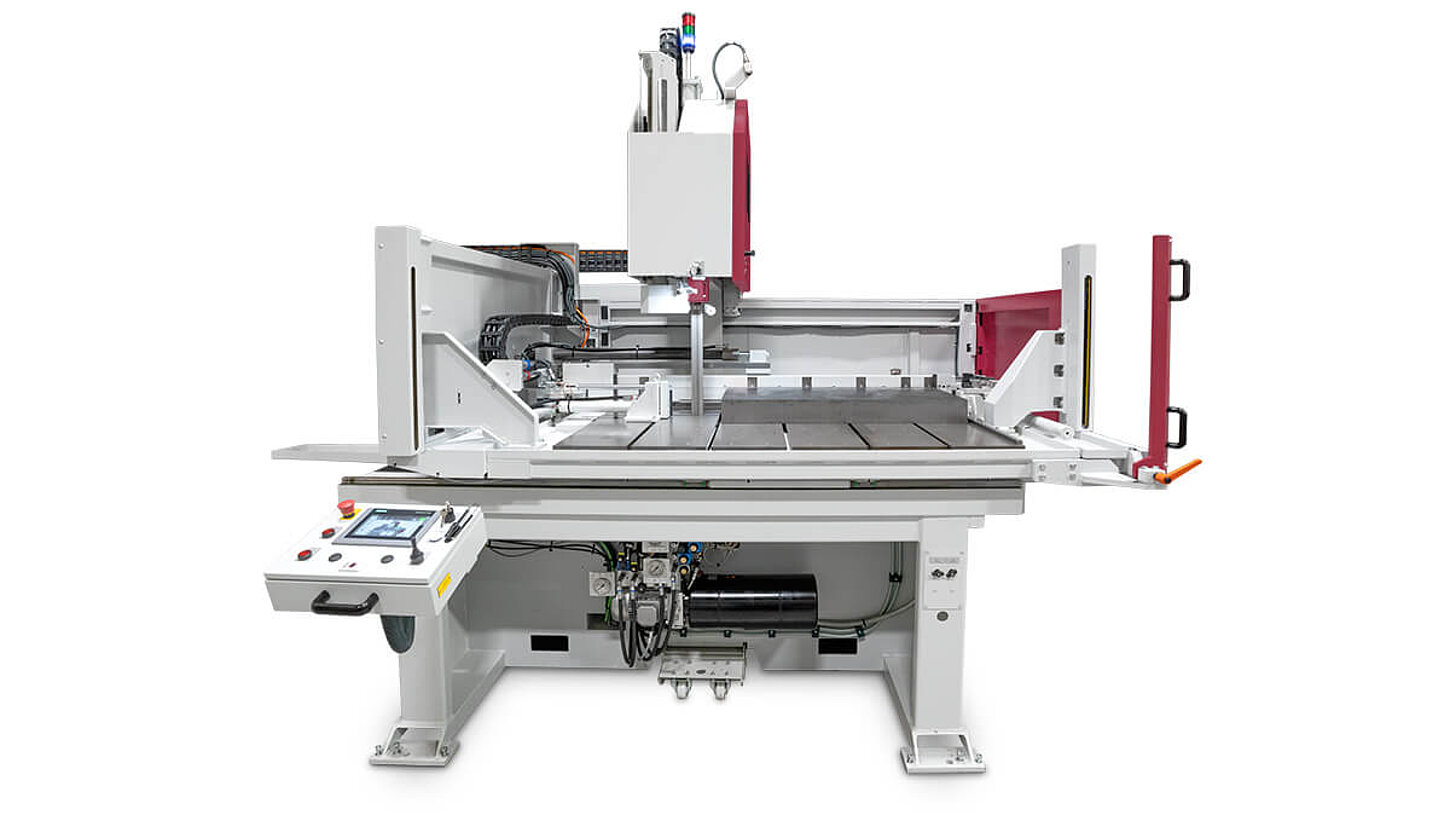

Compact dimensions due to intelligent protection devices

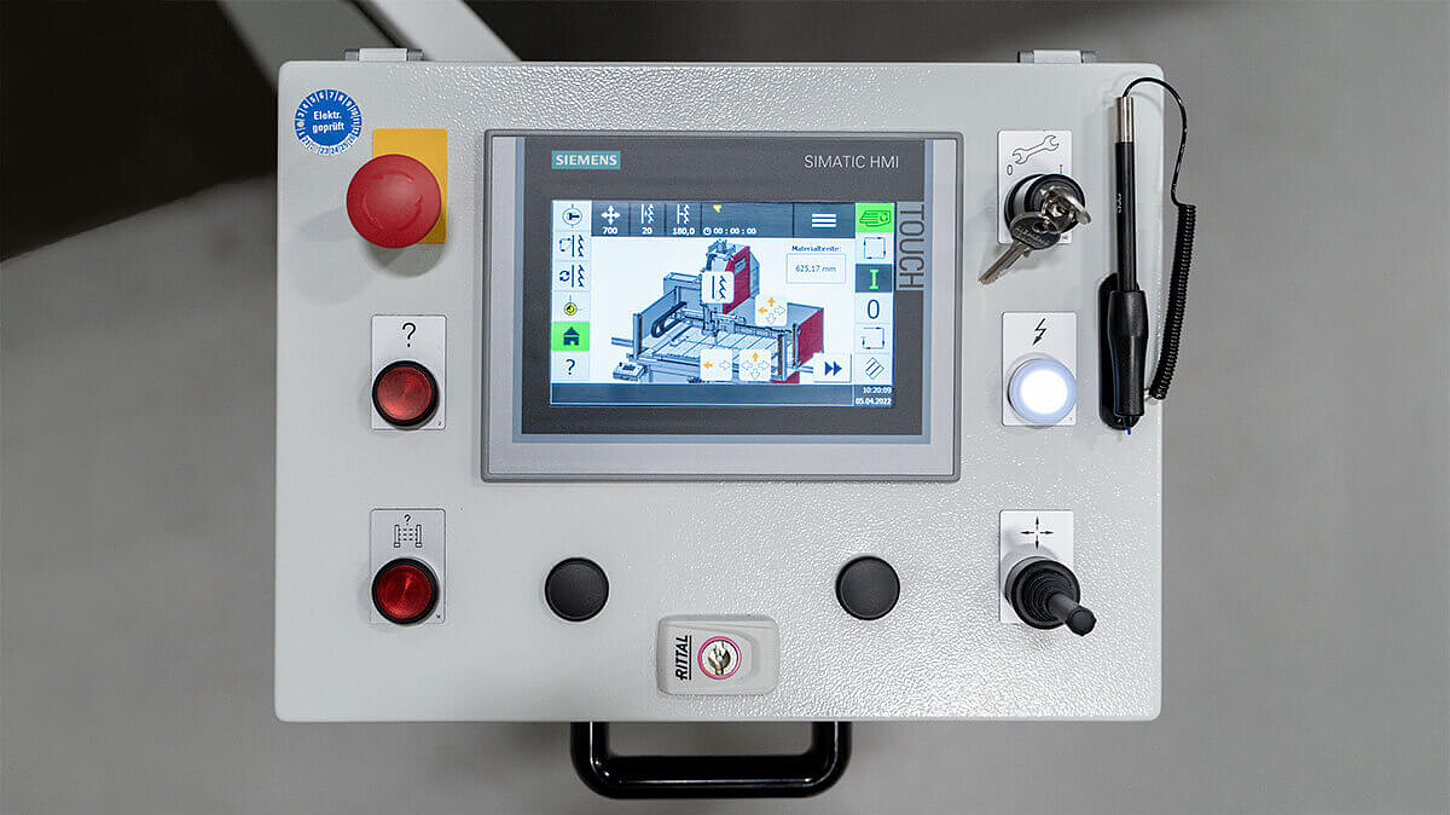

Intuitive touch control system
Chip conveyor with integrated coolant tank

Features of the table band saw LPS-TA

Unsurpassed precision and cutting performance
The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame. In comparison to plate and block bandsaw machines from other manufacturers, the force for the saw feed is applied directly beneath the cutting point, which results in feed movements that are considerably more accurate.

Advantages in material purchasing
By producing flat materials from large sheets, rationalisation effects can be achieved both in warehousing and in the purchase of raw materials.

Clamping device for layer cuts (option)
For sawing larger batch sizes, plates can be stacked in layers and held in a process-safe manner with the optional additional vertical clamping device.

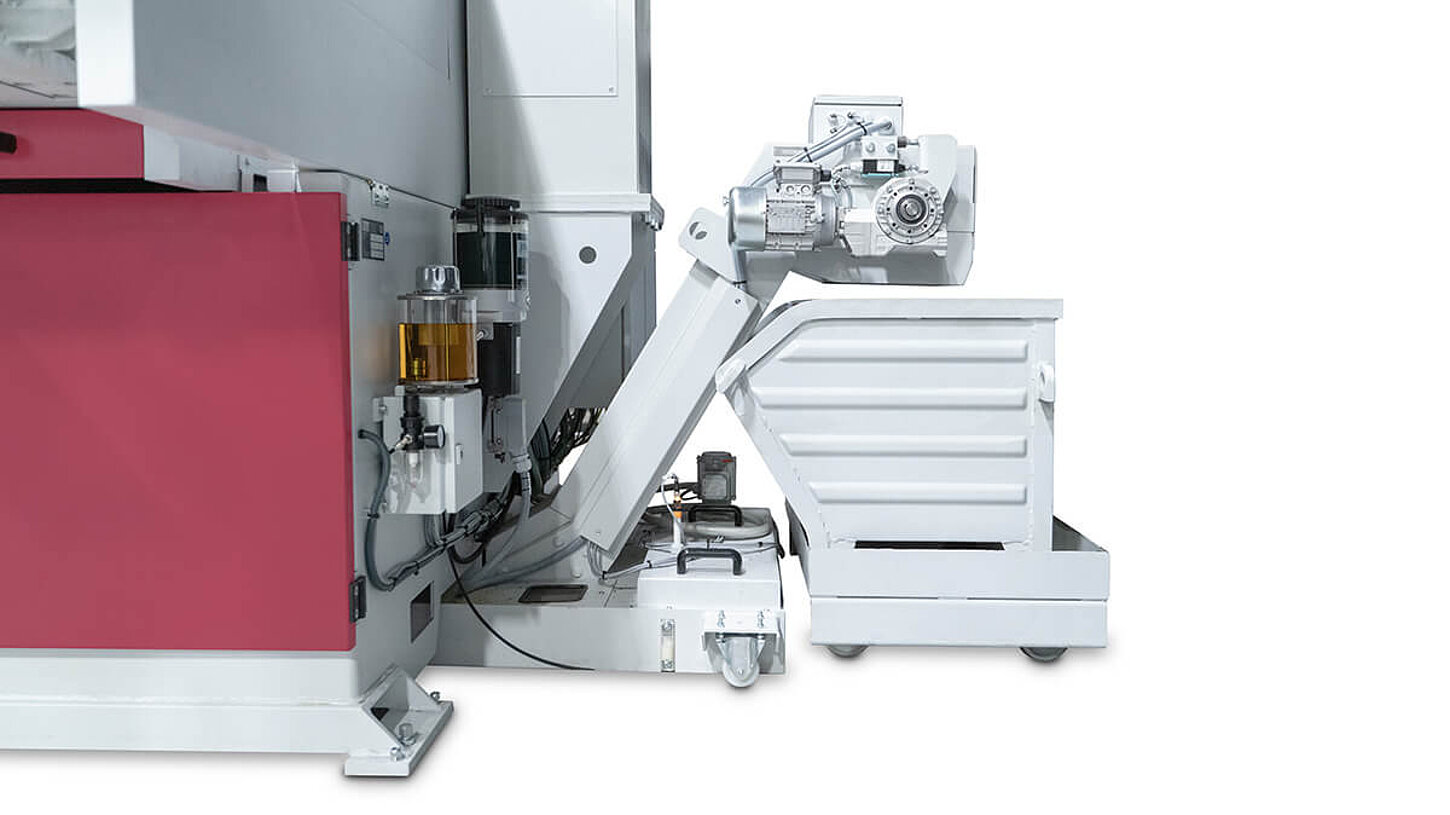

Chip conveyor standard
A generously sized chip conveyor with integrated coolant tank is located under the saw unit, directly in the chip flow direction. Any chips and coolant are collected here and separated. The conveyor can be moved out of the machine frame for cleaning and maintenance.

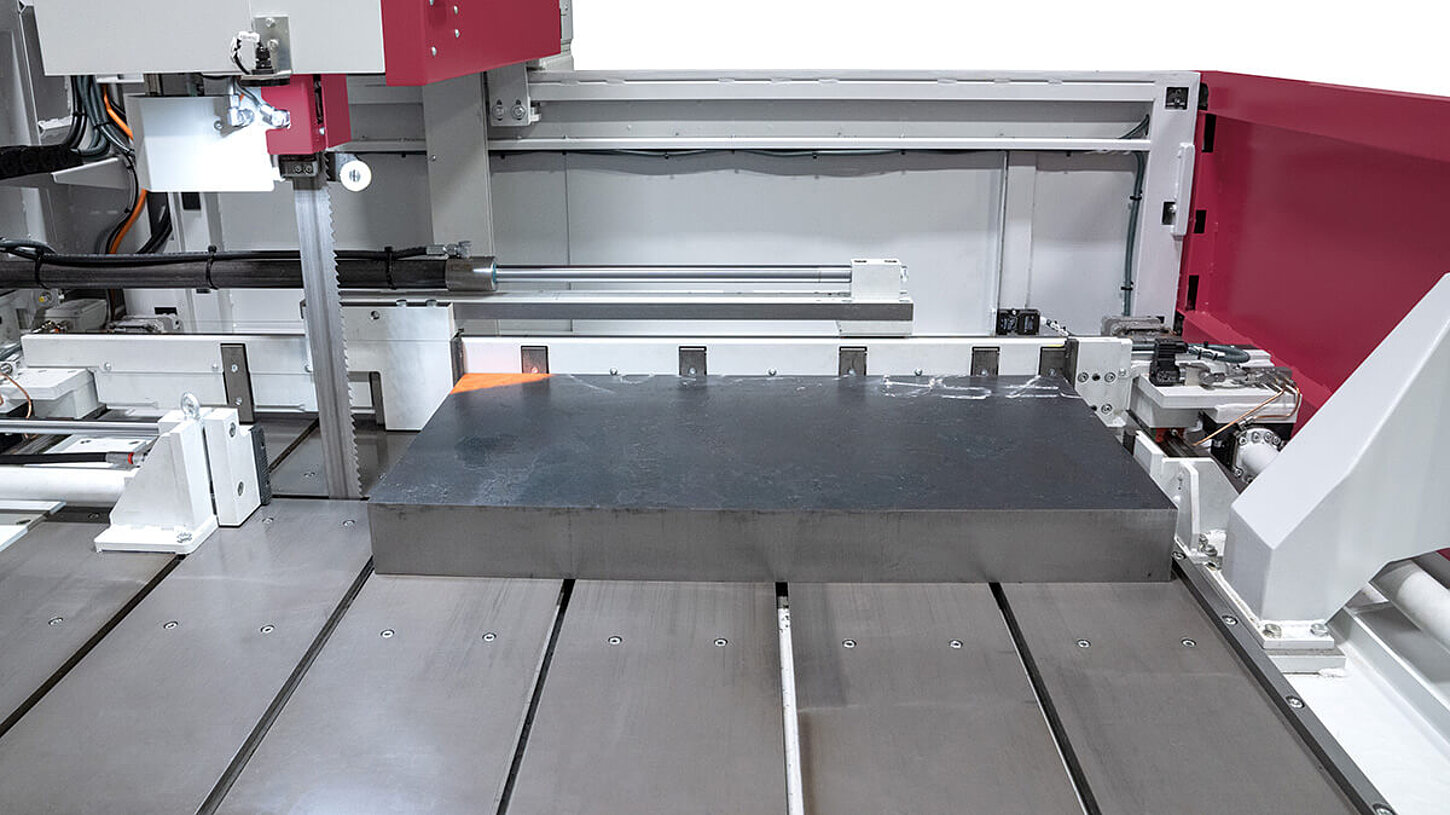

Automatic feeding unit
Thanks to the combination of NC-controlled feeding unit and intelligent control, plates can be separated into strips fully automatically.

Servo Feed System
The Behringer servo feeding system ensures constant chip removal and makes better use of the capabilities of modern bandsaw blades. The rapid response of the servo feeding system to the sensors for the cutting pressure regulation systematically prevents overloading and premature wear of the bandsaw blades.

Quick bandsaw blade change
Quick and easy – tool-free bandsaw blade changes mean shortest set-up times. Just a few simple steps are all that is needed to change the bandsaw blade of the block saw.

Cast iron band guiding parts
are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

Compact
Due to its compact dimensions, the table band saw LPS-TA can also be set up in constricted spaces.

Movable material support table
For easy loading and unloading by crane, the material table of the vertical saw can be moved out from under the saw unit.

Individual Configuration

The table band saw LPS-TA can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data table band saw LPS-TA

Cutting length	1,520 mm
Cutting width	620 mm
Cutting height	420 mm
Minimum cutting width	10 mm
Minimum cutting height	15 mm
Minimum starting length	400 mm

Drive power	4 kW
Blade speed	17 - 120 m/min
Saw blade dimensions	6,000 x 41 x 1.3 mm
Total power	8 kW
Material feeding length	600 mm
Supporting area inside table	1,540 x 620 mm
Supporting area outside table	1,540 x 640 mm
Maximum table load	3,000 kg

Length	4,250mm
Width	3,450 mm
Height	3,200 mm
Weight	4,000 kg
Material support height	1,300 mm
