Products / EISELE Circular Saws / Cold Saws / VMS Semi-Automatic / VMS 370 /

Cold Saw VMS 370

Classics in any workshop that requires precise metal cuts

More than 250,000 cold saws sold worldwide speak for themselves. Simple operation, robust design and precise cuts make the metal-cutting cold saws of the VMS series a reliable partner in the workshop and factory. They are real all-rounders when it comes to cutting solid materials, tubes and profiles.

The heart of the VMS circular saw is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface, the blade life and the service life of the saw.

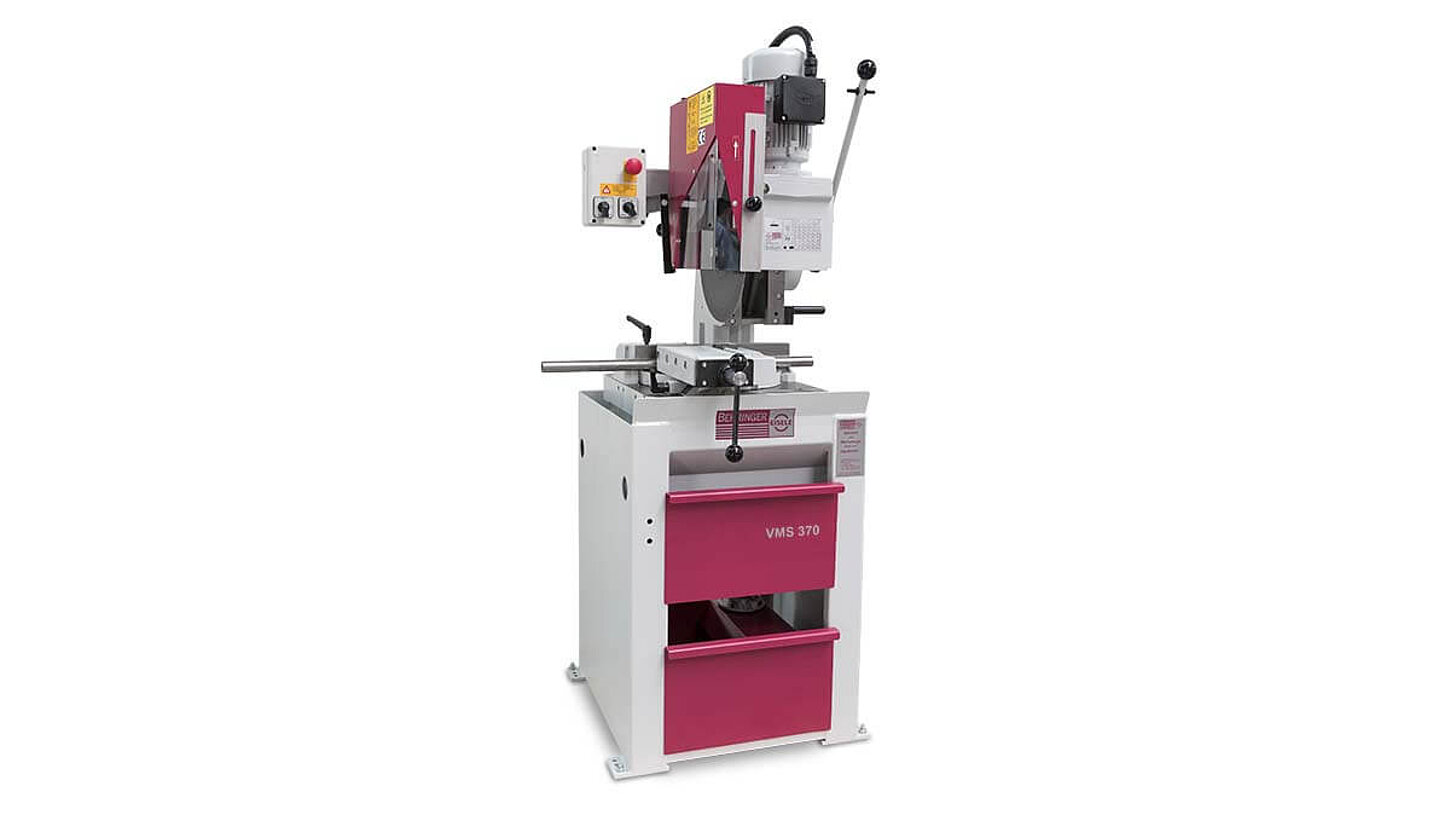

  • Behringer Eisele cold saw VMS 370

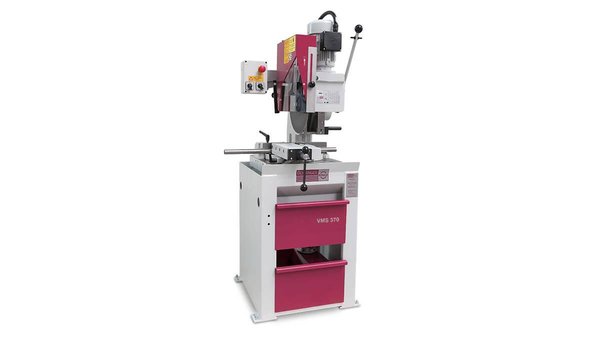

    Cold Saw VMS 370

  • Behringer Eisele cold saw VMS 370 worm gearbox from our own production

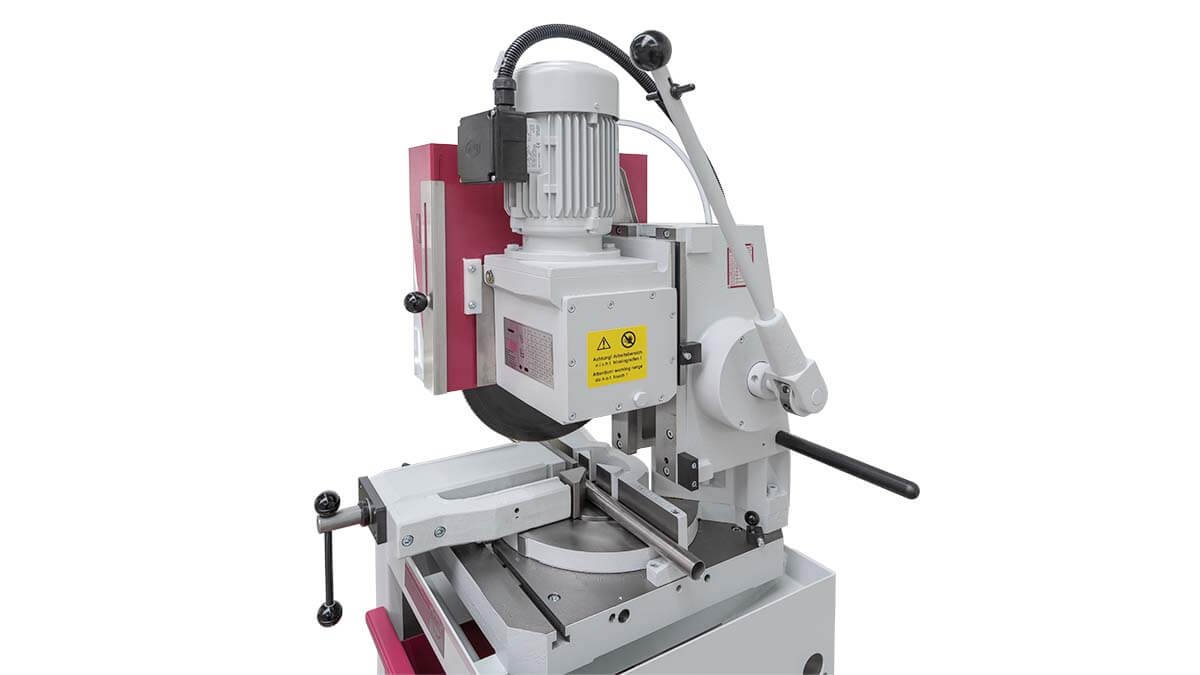

    Worm gearbox from our own production

  • Behringer Eisele cold saw VMS 370 scale for displaying the set mitre angle

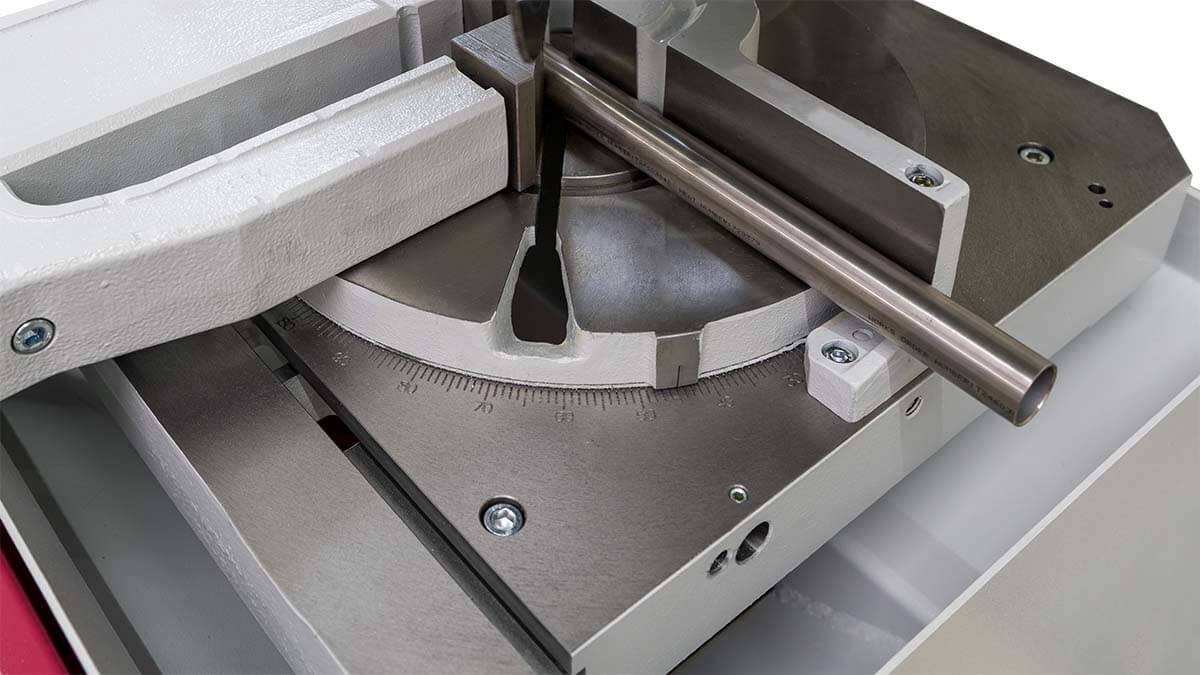

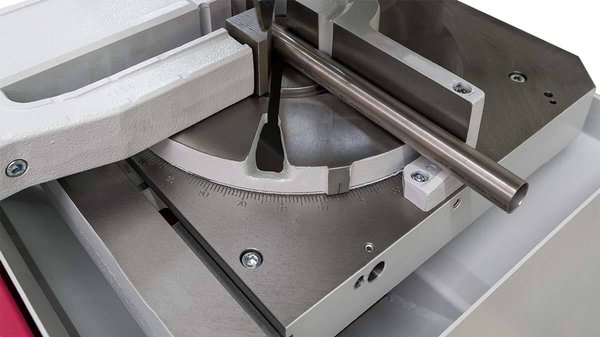

    Convenient mitre adjustment

  • Behringer Eisele cold saw VMS 370 coolant device

    Coolant device

  • Behringer Eisele cold saw VMS 370 speed selection

    Speed selection of the circular saw

  • Behringer Eisele cold saw VMS 370 robust material vice

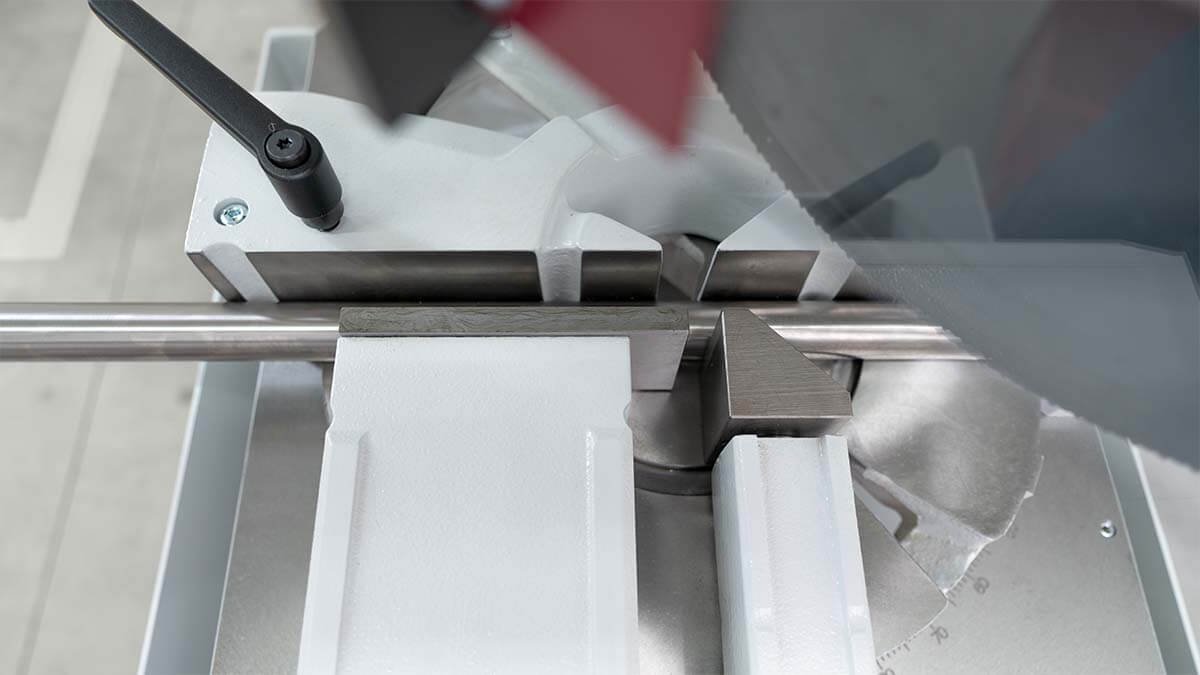

    Robust material vice

Features of the cold saw VMS 370

  • Worm gear unit with Eisele shock-absorbing feature
    An ideally designed gearbox from our own production offers long blade life and maximum durability.

  • User-friendly mitre adjustment
    with fixed stops. This allows changing mitre angles to be set precisely and quickly.

  • Low space requirement
    High productivity with simultaneously compact dimensions of less than 1 m².

  • Clean machine design
    The coolant unit and the chip drawer are integrated into the machine base.

  • High flexibility
    The cold saw VMS 370# can be flexibly adapted to your material flow.

  • Sturdy machine base
    The heavy machine stand and the vibration-damping cast iron components made by Behringer ensure a low-vibration sawing process and thus an increase in tool life.

  • Saw feed via safety snap-in lever
    The saw feed can easily be set to the shortest possible saw travel.

  • Micro spray system (option)
    When sawing profiles, pipes and solid material, the minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via a nozzle. This guarantees a long tool life and a clean working environment.

Individual Configuration

The cold saw VMS 370 can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact



Measuring Systems

Increase the productivity of your vertical circular saw with our extensive range of compatible measuring stops and roller conveyors.

Learn More

Technical data cold saw VMS 370

Flat 90° 200 x 100 mm
Flat 45° 140 x 100 mm
Flat 30° 100 x 100 mm 1)

Square 90° 120 mm 2)
Square 45° 100 mm
Square 30° 90 mm 1)

Round 90° 130 mm
Round 45° 130 mm
Round 30° 105 mm 1)
Drive power 2.0 / 2.6 kW
RPM standard 17 / 34 - 34 / 68 min-1
RPM optional 8 / 16 / 32 / 64 min-1
Saw blade diameter 370 mm
Saw feed manual
Material clamping manual
Length 1,085 mm
Width 865 mm
Height 1,800 mm
Weight 430 kg
Material support height 900 mm

1) Only to the right side
2) When using additional jaw
