Tube Cutting Saw PSU 450 GS

The specialist for sawing bent tubes

The PSU 450 GS is a circular saw specially designed for sawing curved tubes such as mufflers, hydroforming or exhaust pipes. Standardised mounts and their flat material table enable individual workpiece fixtures to be accepted. The saw entry and exit point can be freely adjusted accordingly. The standard two-hand operation allows comfortable and safe working without disturbing mechanical guards.

The heart of the PSU tube cutting saw is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface and the blade life.

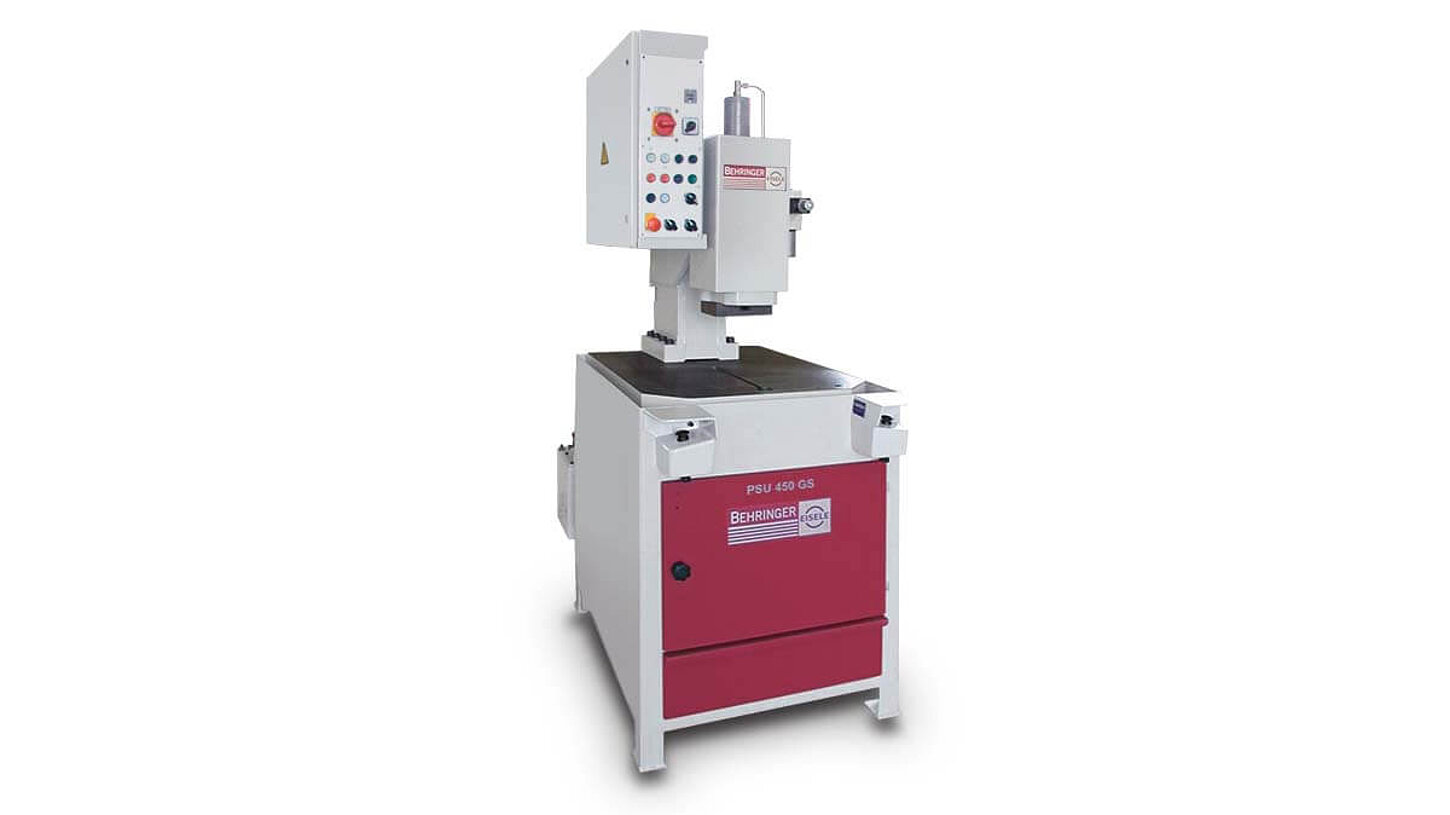

  • Tube cutting saw PSU 450 GS

    Tube cutting saw PSU 450 GS

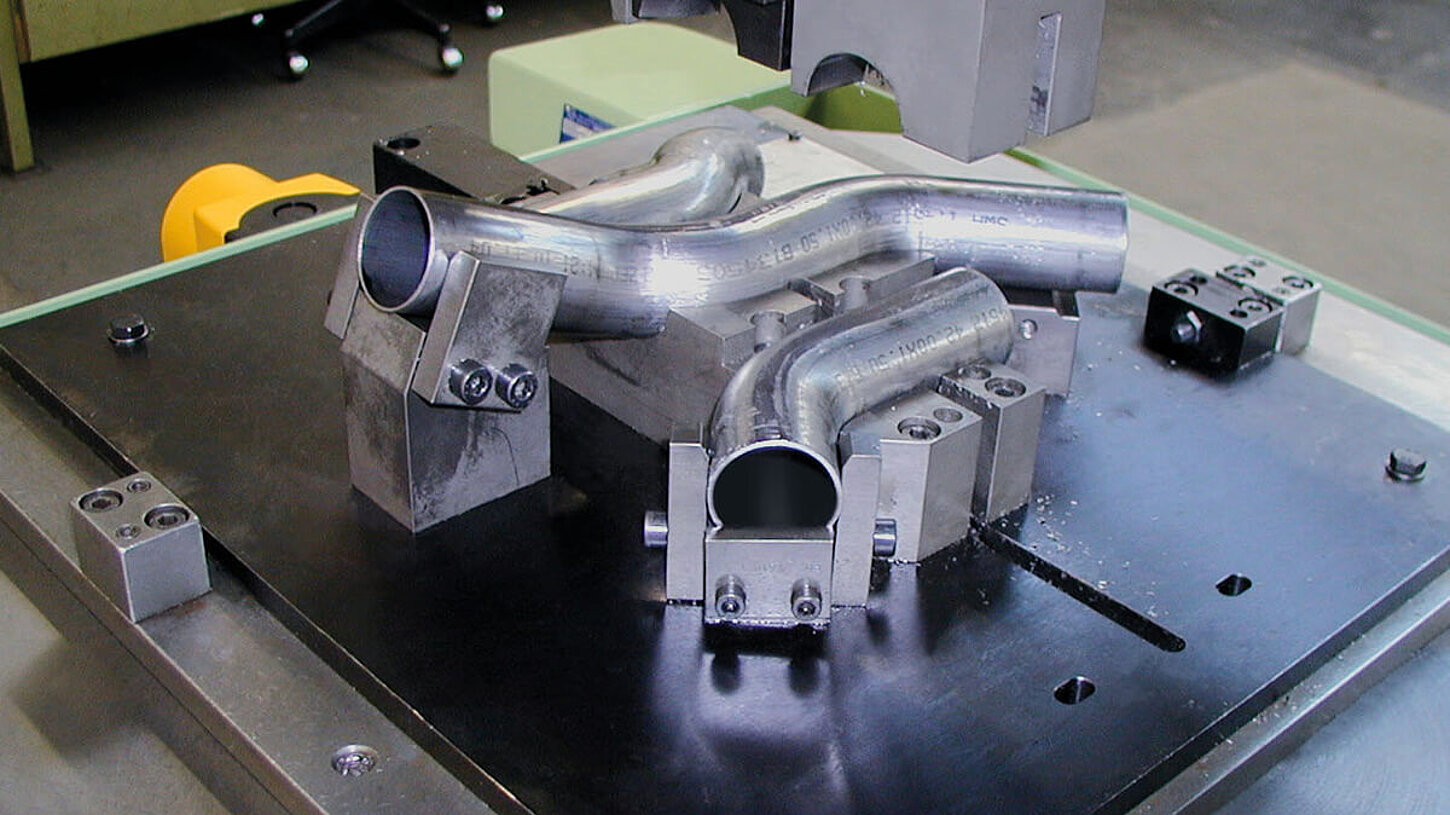

  • Tube cutting saw PSU 450 GS fixture for inserting bent tubes

    Individual clamping concepts via standardised mounts

Features of the tube cutting saw PSU 450 GS

  • Mounting for part-specific fixtures
    The material table is flat. Part-specific fixtures can be installed and exchanged quickly and easily on this table. In combination with these, a safe sawing process from simple to complex geometries can be guaranteed.

  • Reliable workpiece clamping
    The extremely robust clamping bridge and the integrated long-stroke cylinder with 160 mm clamping stroke ensure secure clamping of the workpieces to be machined.

  • Adjustable saw entry and exit point
    The entry and exit point of the tube cutting saw to the material can be freely adjusted for the use of various fixtures.

  • Two-hand operation
    The standard two-hand operation allows comfortable and safe working without disturbing mechanical guards.

  • Sturdy machine base
    The heavy machine stand and the vibration-damping cast iron components made by Behringer ensure a low-vibration sawing process and thus an increase in tool life.

  • Robust and durable
    The heart of the PSU saw units is a worm gear unit with Eisele shock-absorbing feature, produced in-house. The robust design of the gearbox consistently dampens vibrations. This ensures a good cutting surface, long saw blade life and a long service life of the saw.

  • Optimum chip flow
    also when sawing tubes and hollow profiles due to the saw feed from bottom up.

  • Micro spray system
    When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via a nozzle. This guarantees a long tool life and a clean working environment.

Individual Configuration

The tube cutting saw PSU 450 GS can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data tube cutting saw PSU 450 GS

Cutting range round 150 mm
Cutting range square 140 x 140 mm
Cutting range flat 400 x 30 mm
Smallest dimension to be sawn round 10 mm
Smallest dimension to be sawn flat 10 x 10 mm
Drive power 3.0 / 3.6 kW
RPM standard 6 / 12 / 24 / 48 min-1
RPM optional 12 / 24 / 48 / 96 min-1
Saw blade diameter 450 mm
Saw feed hydraulic
Material clamping hydraulic
Length 1,600 mm
Width 1,025 mm
Height 2,040 mm
Weight 1,200 kg
Material support height 1,000 mm
